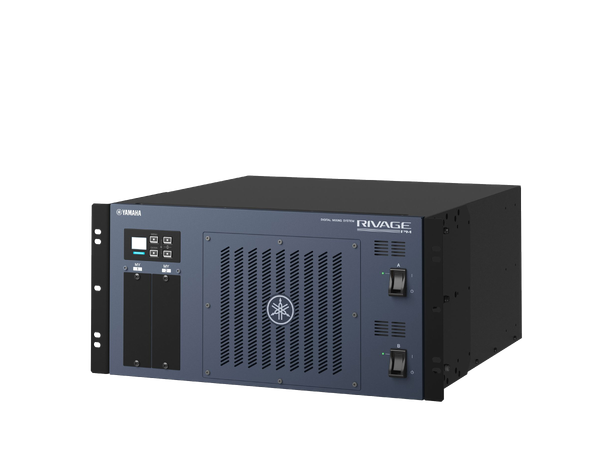

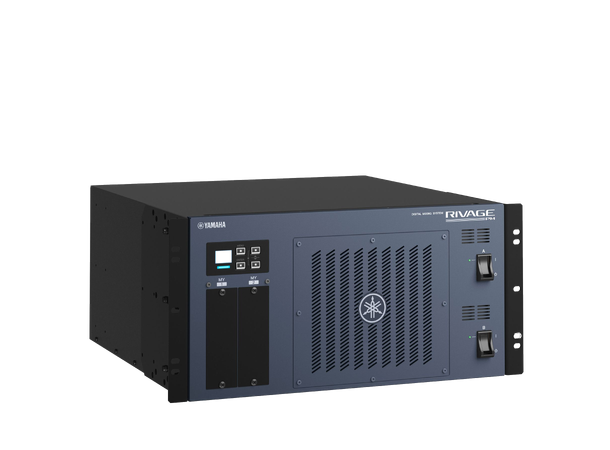

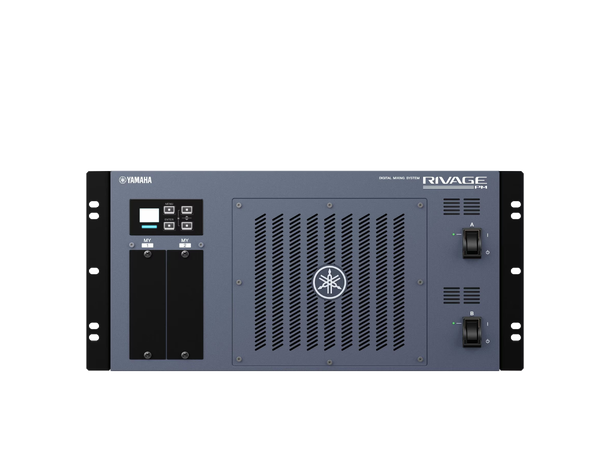

Yamaha DSP-RX DSP Engine

The DSP-RX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system. DSP-RX can be upgraded to DSP-RX-EX later by adding the DEK-DSP-RX kit.

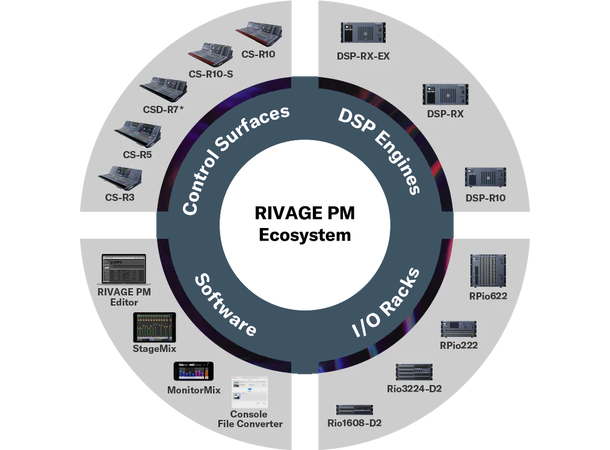

    Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
    Superior capability of processing digital audio signals of up to 120 input, 48 MIX, 24 MATRIX, and two STEREO channels.

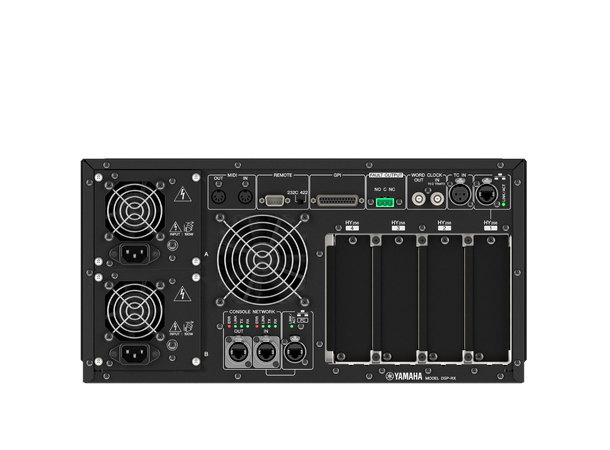

    Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
    Two Mini-YGDAI slots to support various audio formats.
    Dual redundant power supply built-in
    Power consumption: 190W
    Dimensions (WxHxD): 480 x 220 x 491mm (5U rack size)
    Net Weight: 19 kg
