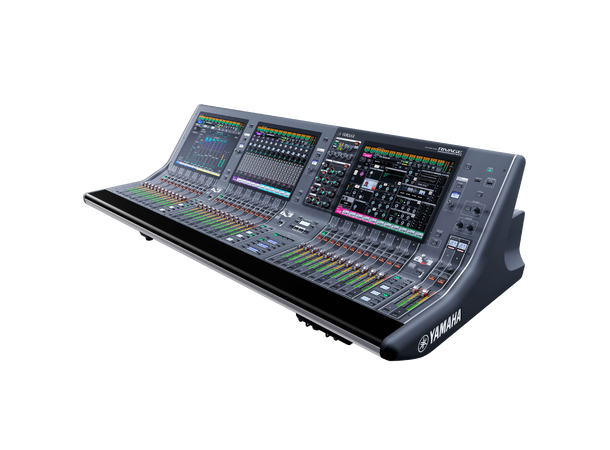

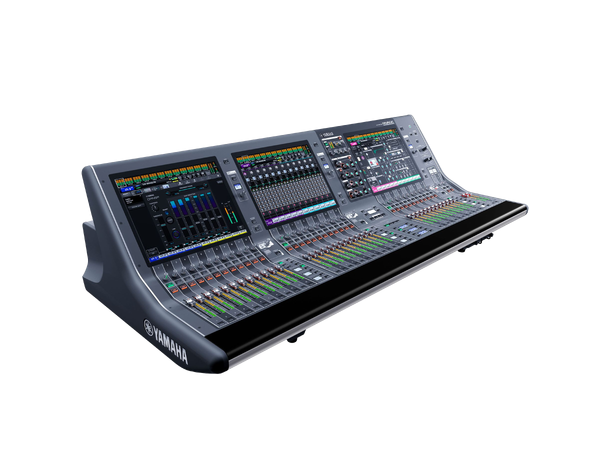

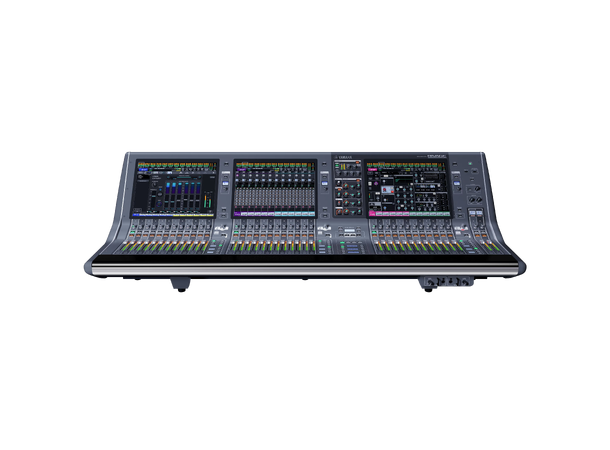

Yamaha CS-R5 Control Surface

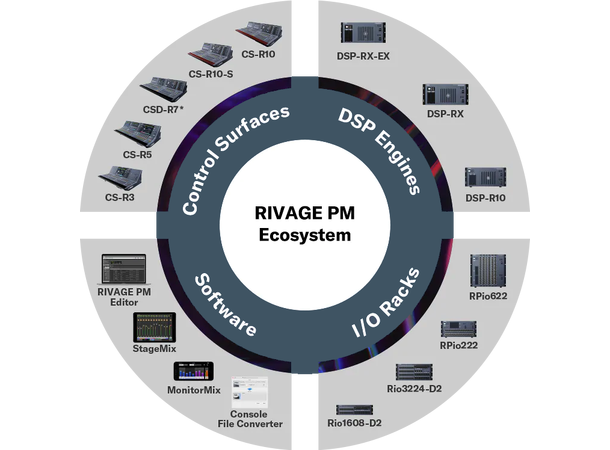

The CS-R5 control surface is the core component of RIVAGE PM5 system, with 96 kHz processing. The console has three touch screen and 12-faders bays for flexible setup and configuration.Touch panels are brought closer to the user, making them easier to reach. The weight is 42kg which is incredibly light.

    Display: 15" touch panel x 3
    Faders: 38 (12+12+12+2)
    Selected Channel section: Dynamics, GAIN, HPF, EQ, PAN, Function Knob
    Custom Fader banks: 6 x 5 on each bay
    User Defined keys: 12 x 4 banks
    Send/User Defined knobs: 3(4 x 4 banks can be assigned)
    Touch and Turn knobs: 3

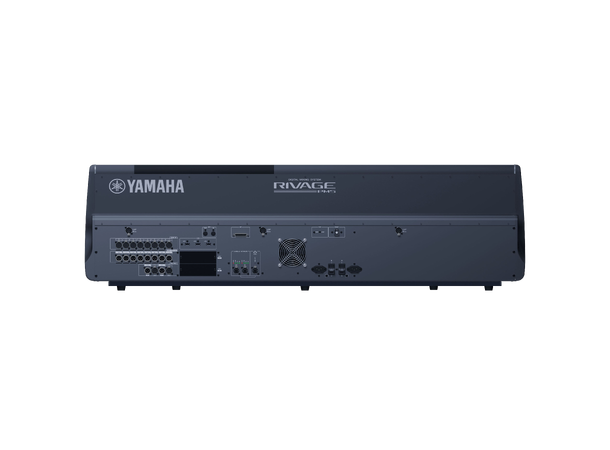

    Analog I/O: 8 in / 8 out
    Slot: 2 MY slots
    AES/EBU: 4 in / 4 out (with SRC)
    Ports: GPI (8 in / 8 out), MIDI In/Out, 5 USB (1 for 2-track recording)
    Power supply: Dual redundant power supply built-in
    Power consumption: 300W
    Dimensions (WxHxD): 1,444 x 414 x 643mm
    Net Weight: 42 kg
