Yamaha CS-R10 Control Surface

Rivage PM10, 2 Display, 38 fadere

Varenr: 121369
-+
Bestillingsvare (16 dager)
BeskrivelseTeknisk infoAlternativerRESSURSER
Beskrivelse

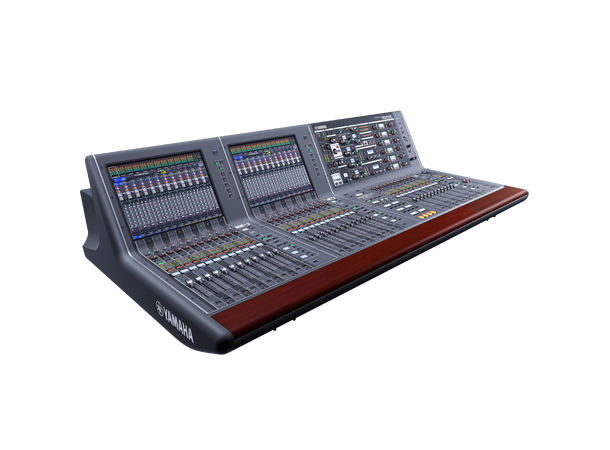

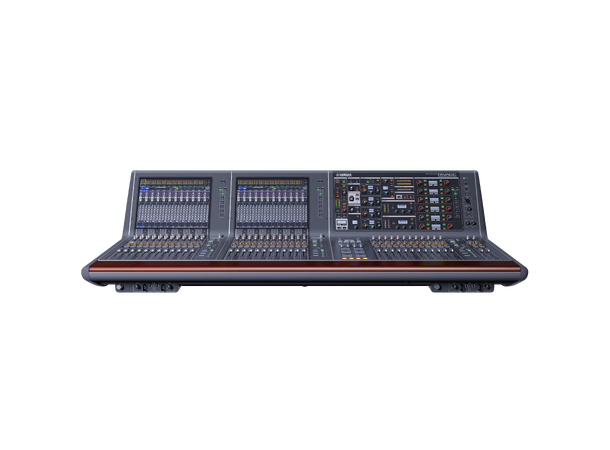

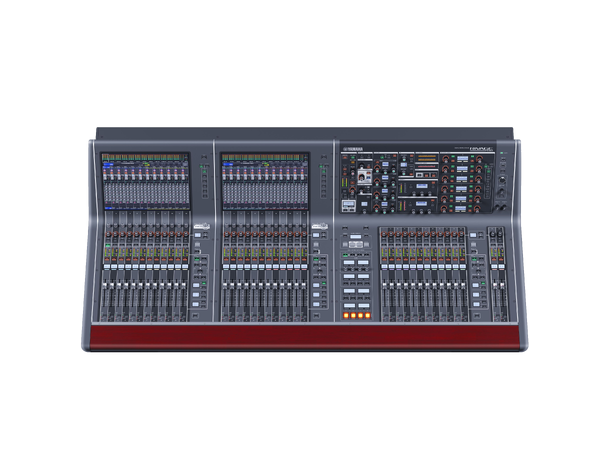

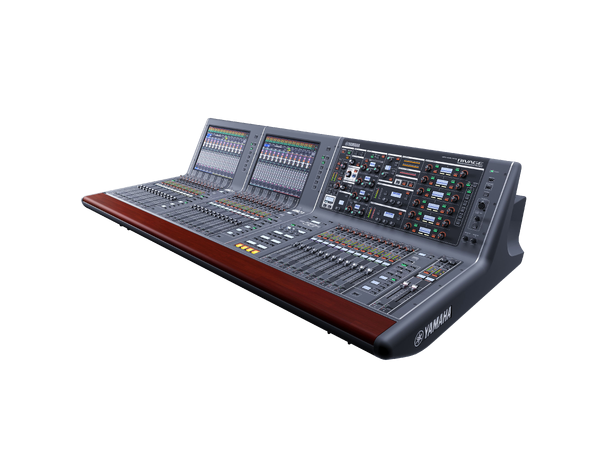

Yamaha CS-R10 Control Surface



The control surface with two large touch panel displays and 38 faders enables you to perform general operations on the RIVAGE PM10 system.

    Display: 15" touch panel x 2
    Faders: 38 (12+12+12+2)
    Selected Channel section: comprehensive channel parameters
    Custom Fader banks: 6 x 5 on each bay
    User Defined keys: 12 x 4 banks
    User Defined knobs: 4 x 4 banks
    Touch and Turn knobs: 2
    Analog I/O: 8 in / 8 out
    Slot: 2 MY slots
    AES/EBU: 8 in / 8 out (with SRC)

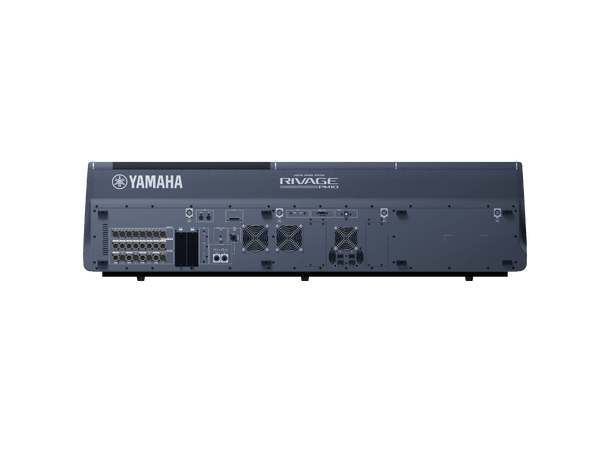

    Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
    Power supply: Dual redundant power supply built-in
    Power consumption: 380W
    Dimensions (WxHxD): 1,549 x 417 x 848mm
    Net Weight: 85 kg




    Teknisk info

    Produktinformasjon

    - Funksjon & bruk
    • IP nettverk lyd
    • Redundancy
    - Grensesnitt (Protokoll)
    • AES3
    • GPIO
    • MADI Coaxial
    • MIDI
    • SMPTE 2110
    • WordClock
    - Tilkoblinger (Pluggtype HW)
    • BNC
    • DB 25
    • DIN 5 pin MIDI
    • Jack
    • RJ45
    • XLR
    • XLR 4 pin
    • USB
