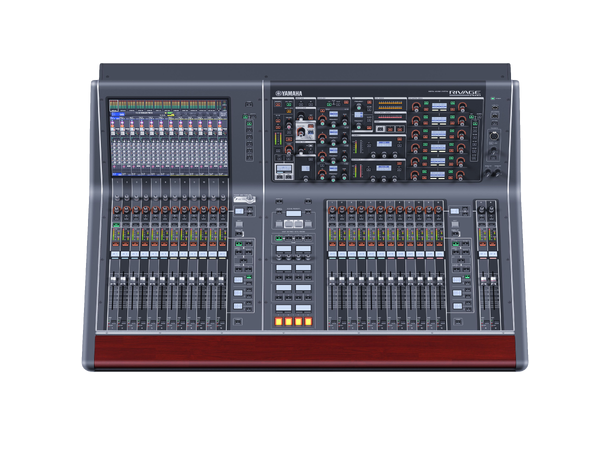

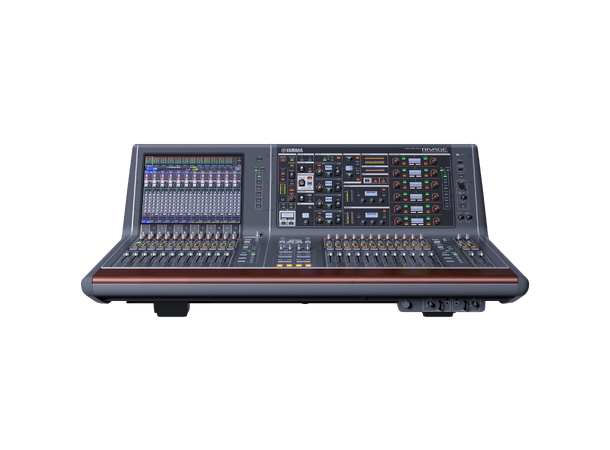

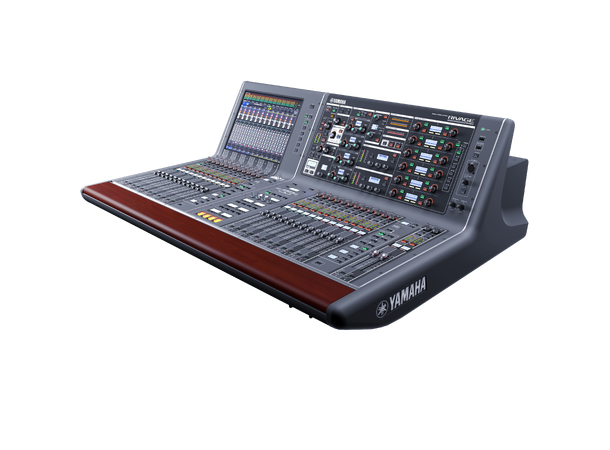

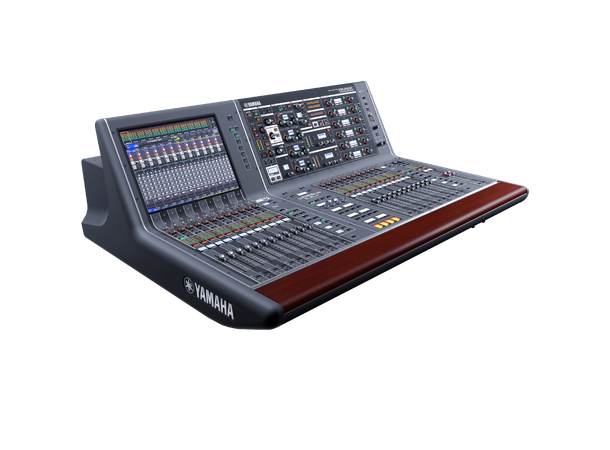

Yamaha CS-R10-S Control Surface

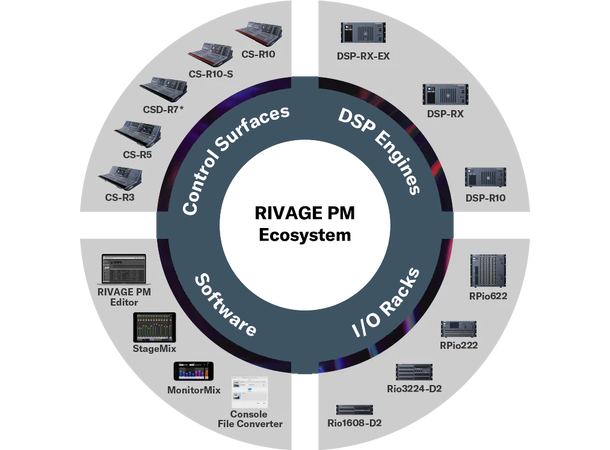

The control surface with single large touch panel display and 26 faders enables you to perform general operation on the RIVAGE PM10 system. A CS-R10-S can be added to a RIVAGE PM system to provide dual-console control and flexibility. Dual power supply units are built in for high reliability.

    Display: 15" touch panel x 1
    Faders: 26 (12+12+2)
    Selected Channel section: comprehensive channel parameters
    Custom Fader banks: 6 x 5 on each bay
    User Defined keys: 12 x 4 banks
    User Defined knobs: 4 x 4 banks
    Touch and Turn knobs: 1

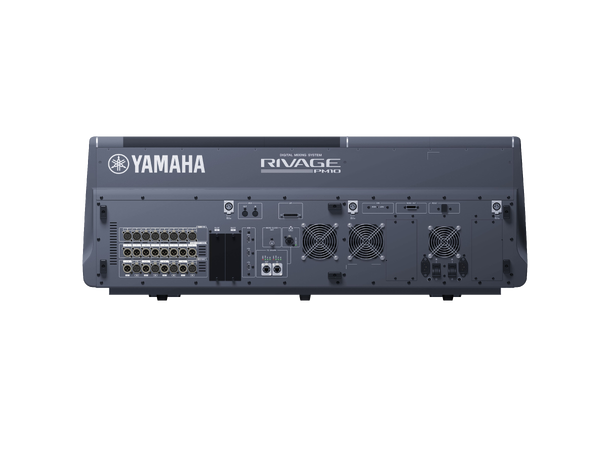

    Analog I/O: 8 in / 8 out
    Slot: 2 MY slots
    AES/EBU: 8 in / 8 out (with SRC)
    Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
    Power supply: dual redundant power supply built-in
    Power consumption: 380W
    Dimensions (WxHxD): 1,128 x 417 x 848mm
    Net Weight: 67 kg
