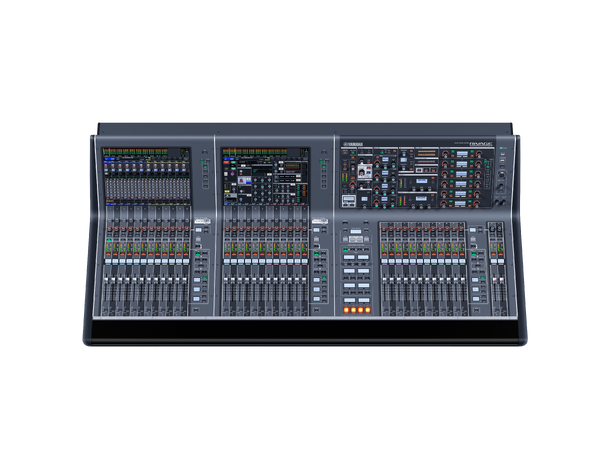

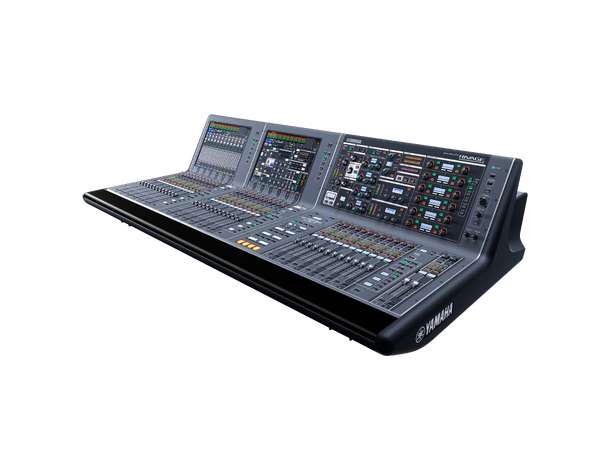

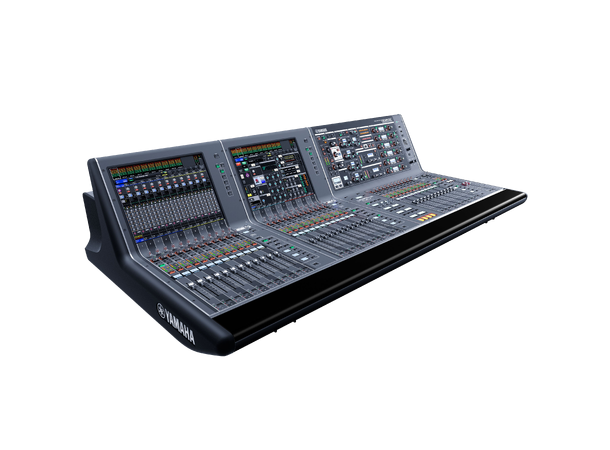

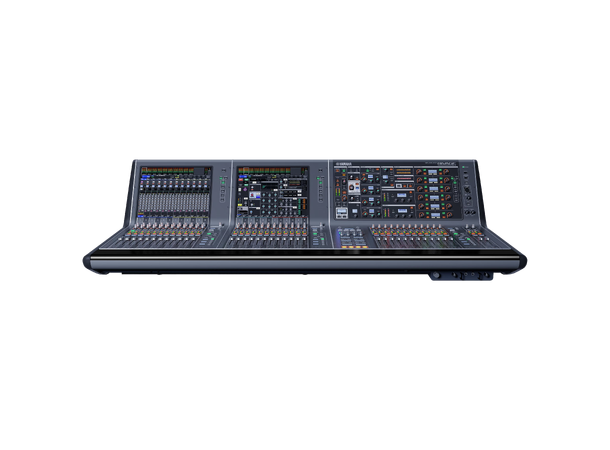

Yamaha CSD-R7 Digital Mixing Console

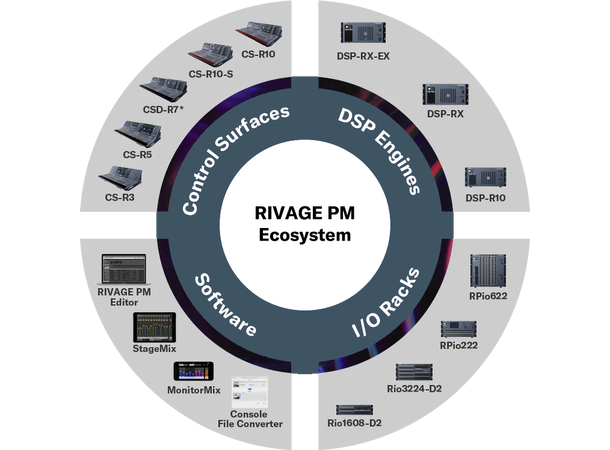

The CSD-R7 Digital Mixing Console is the core component of any RIVAGE PM7 system, with 96 kHz processing, 120 monaural inputs, and a versatile complement of mixing busses (60 MIX, 24 MATRIX, and 2 STEREO). The console has three 12-faders bays for flexible setup and configuration, and dual power supply units are built in for enhanced reliability.

    Display: 15" touch panel x 2
    Faders: 38 (12+12+12+2)
    Selected Channel section: comprehensive channel parameters
    Custom Fader banks: 6 x 5 on each bay
    User Defined keys: 12 x 4 banks
    User Defined knobs: 4 x 4 banks
    Touch and Turn knobs: 2

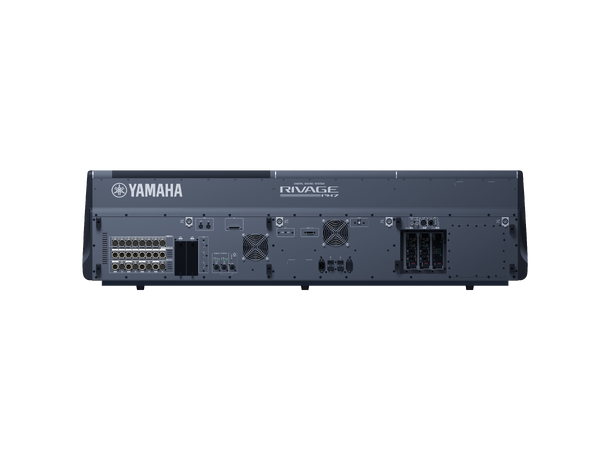

    Analog I/O: 8 in / 8 out
    Slot: 3 HY slots, 2 MY slots
    AES/EBU: 8 in / 8 out (with SRC)
    Ports: GPI (8 in / 8 out), Word Clock In/Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D), TC In
    Power supply: Dual redundant power supply built-in
    Power consumption: 415W
    Dimensions (WxHxD): 1,549 x 417 x 848mm
    Net Weight: 94 kg
