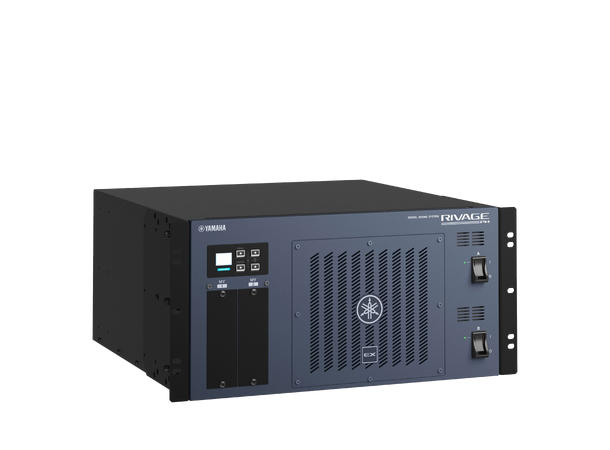

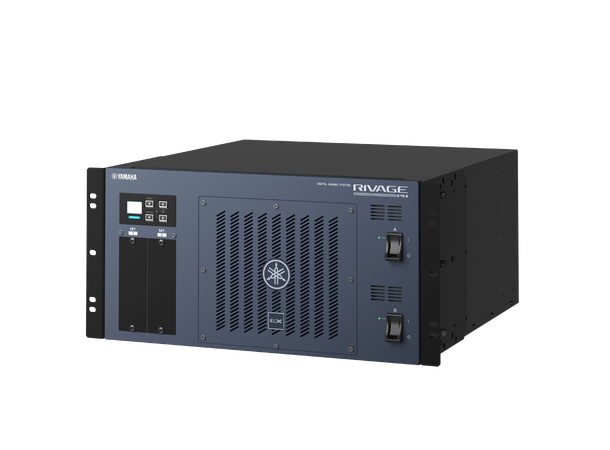

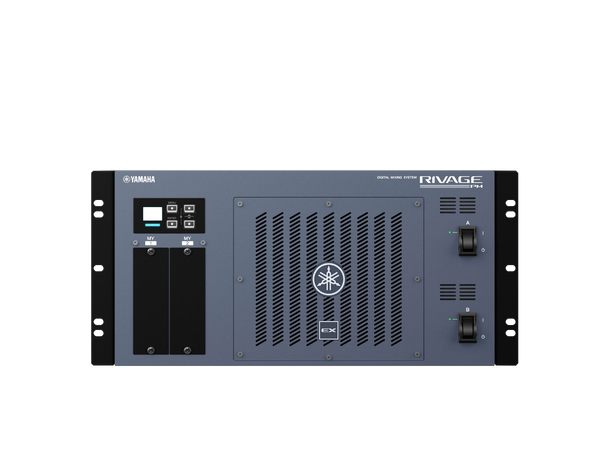

Yamaha DSP-RX-EX DSP Engine

The DSP-RX-EX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system.

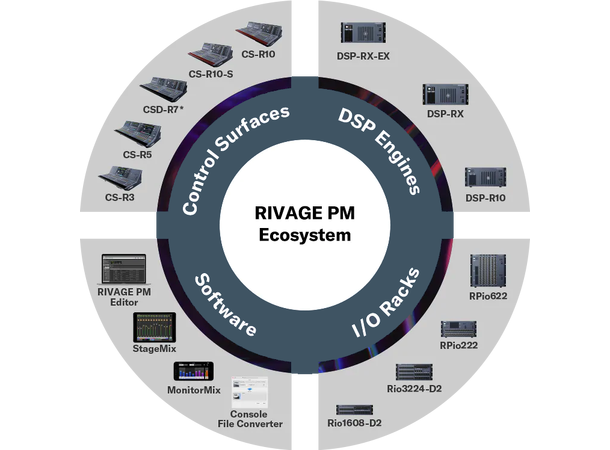

    Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
    Superior capability of processing digital audio signals of up to 288 input, 72 MIX, 36 MATRIX, and two STEREO channels.

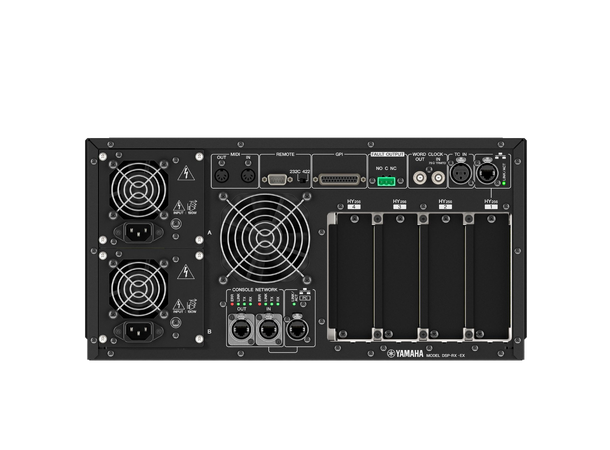

    Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
    Two Mini-YGDAI slots to support various audio formats.
    Dual redundant power supply built-in
    Power consumption: 190W
    Dimensions (WxHxD): 480 x 220 x 491mm  (5U rack size)
    Net Weight: 20 kg
