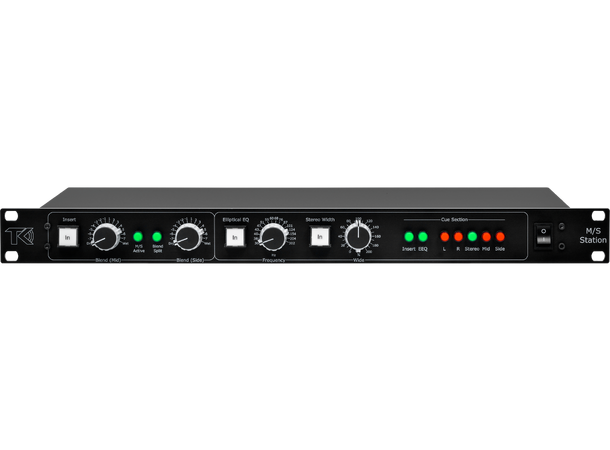

M/S Station

Advanced M/S tool

Parallel insert with M/S function – separate Mid and Side blends.
Elliptical EQ (low end mono-maker).
Width control from mono to extra wide.
Advanced cue function.

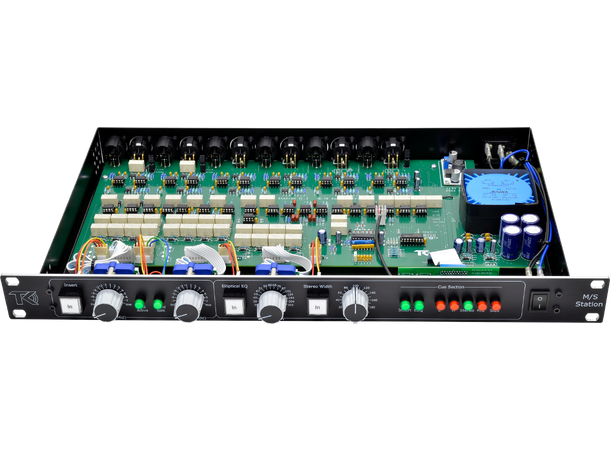

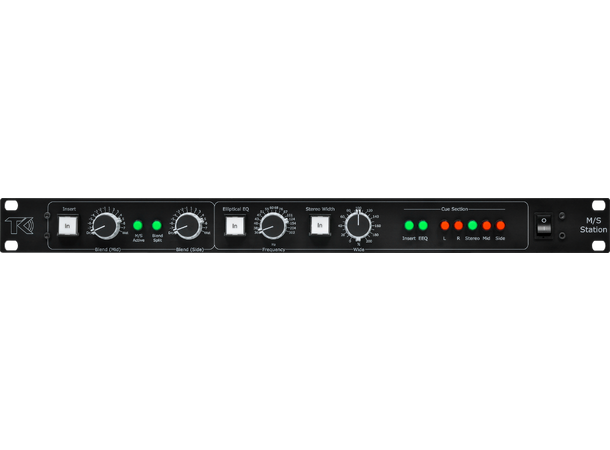

The M/S Station is a new mastering and main bus tool with four separate functions divided into two
sections including an advanced cue function.

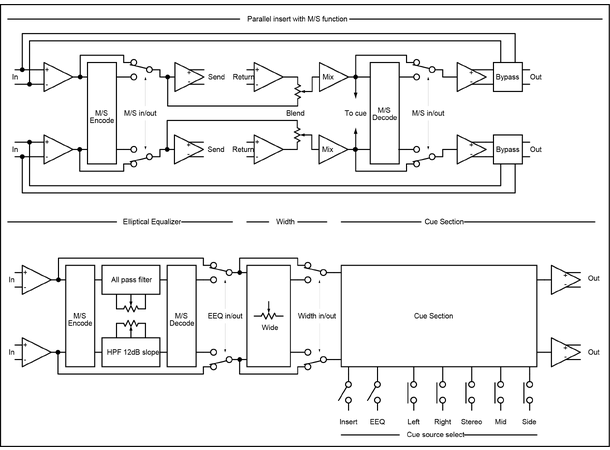

Section 1 is a parallel insert with M/S function allowing the user to use separate blend controls for the mid
and side signals. For maximum precision the blend control(s) has 16 positions from dry to wet.
Section 2 consists of three parts, an elliptical EQ with 16 frequencies, a width control from 0-200% and an
advanced cue function.
The two sections are normally linked internally but can be used separately with their own balanced inputs
and outputs by removing four jumpers inside the unit (see unlink section 1 and 2). This way you can use
them at different locations in your setup.

Section 1

Parallel insert with M/S function:

With the insert section you can insert an external processor like an EQ, compressor, distortion unit etc, and
then dial in a mix between the processed signal (wet) and the unprocessed signal (dry). For maximum
precision the blend control has 16 steps from dry to wet.
If you activate the M/S function your signal will be coded into mid ( L+R ) and side ( L-R ). The mid signal
normally contains all the center info such as bass, kick drum, lead vocal etc and the side signal contains all
the panned parts of the signal. In M/S you can process the center signal and side signal separately with
different types of processors. With the blend split function you get separate blend controls for the mid and
side signal. In M/S mode the blend function takes place before the signal is decoded back to left/right. With
the insert cue function you can monitor the L or R signal after the blend control separately, mid or side if
M/S is active.

Section 2

Elliptical Equalizer:

With the elliptical EQ all frequencies below a selected frequency will be made to mono. This function can
make your low end more focused. It’s an old technique used when mastering for vinyl.
Too much low end in the side channel (vertical) can make the needle bounce slightly and cause distortion.
By using a 12dB high pass filter in the side channel you set the frequency under which the signal will be
processed as mono. As a HPF introduces phase shift to the signal, a phase correction is added to the mid
channel keeping channel separation as good as possible. The EEQ has 16 frequencies from 36Hz to 302Hz.
With the EEQ cue function you can monitor the signals that are mixed between the channels.

Stereo width control:

By adjusting the amount of side information in the stereo mix, the width can be adjusted incrementally
from mono to extra wide. With this control you can fine adjust the stereo image after you have used the
M/S insert and EEQ.

Cue function:

With the cue function you can monitor the left, right, mid or side signal separately.
By pressing the cue sections Insert switch you can cue the parallel inserts return signal by pressing L or R.
(this can be done even if you run the two sections separately at different locations in your chain)
If you select the EEQ switch on the cue section you can monitor the low frequencies fed from left to right or
right to left. The cue section is a passive design using relays to select the cue source.

Unlink section 1 and 2:

If you like to use the two sections at different locations in your chain you can unlink them by removing the
four jumpers inside the unit (see picture in the manual). You can then use them separately with their own
balanced inputs and outputs. The two sections are linked as default.

Specifications:

Max input and output +26dBu
Dynamic range 119dB
Frequency response: 20Hz – 80kHz +/-0,1dB
Insert section:
THD+N Dry 0,00022% @ +4dBu / 0,00015% @ +20dBu
THD+N Wet 0,00025% @ +4dBu / 0,00015% @ +20dBu
THD+N M/S Wet 0,0004% @ +4dBu / 0,0004% @ +20dBu
S/N Dry @ +4dBu 103dB
S/N Wet @ +4dBu 102dB
S/N M/S Wet @ +4dBu 97dB
Elliptical EQ section:
THD+N 0,0004% @ +4dBu / 0,0004% @ +20dBu
S/N 98dB
Crosstalk Better than 70dB
Width section:
THD+N 0,0003% @ +4dBu / 0,0003% @ +20dBu
S/N 98dB
All sections active:
Dynamic range 115,5dB
THD+N 0,0005%
Power consumption: 15VA
Voltage: 115v or 230v selected via an internal volt selector switch
