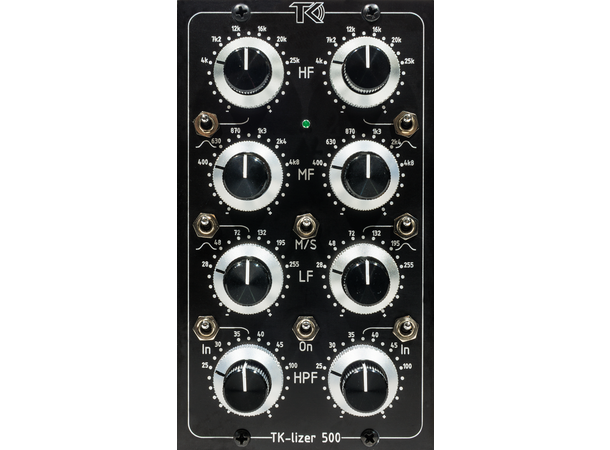

TK-lizer 500

The TK-lizer 500 features all the power of the TK Audio’s flagship TK-lizer, including the M/S functionality that has made it such a staple in studios all over the world.
The three bands have a cut/boost range of +/-8dB in 41 steps. The low and high bands can be switched between peak or shelving mode. A high pass filter with a 12dB slope is also provided, and each channel has it’s own level control with a range from infinity to +6dB.
Using the built in M/S function, you can adjust the middle and side signals separately before it is decoded back to a normal L/R signal. In M/S mode you can also adjust the stereo width using the level controls.

• Power requirement: +190mA / -80mA (extended over two slots)
• Frequency response: 20Hz to 50kHz +/-0.2dB
• THD @ +4dBu less than 0.0006%
• THD+N @ +26dBu is less than 0.001%
• Signal to noise ratio: 95dB
• Cross talk: -89dB
• Input impedance: 24kohm
• Output impedance: 50ohm
• Max input level: +26dBu
• Max output level: +27dBu
• Q~0.5


Features:

• Low band:
• Frequency: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz
• Boost/cut: +/-8dB
• Peak or Shelf
• Mid Band:
• Frequency: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz
• Boost/cut: +/-8dB
• High Band:
• Frequency: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz
• Boost/cut: +/-8dB
• Peak or Shelf
• High Pass Filter
• Frequency: 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, 100Hz, 12dB / octave
• In/Out
• Level: Infinity to +6dB (Unity gain at 12’o lock)
• EQ in/out. (LED red for out, green for in)
• M/S in/out

Specifications and components may be changed or updated without further notice.
