Maag Audio EQ4
Proffesjonell EQ fra Maag Audio med den klassiske Air Band

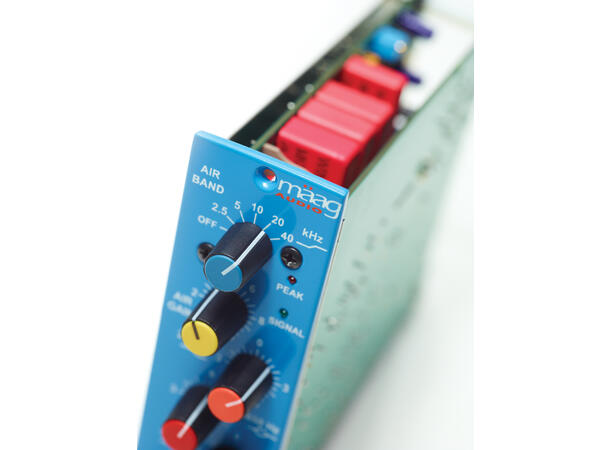

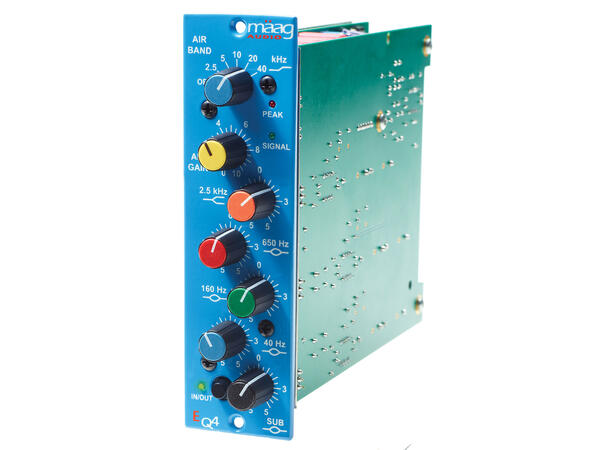

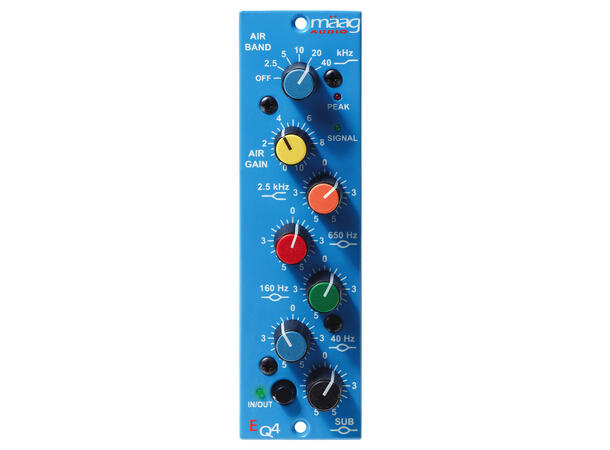

The Maag Audio EQ4® (500 Series) is a one
channel 6 band equalizer with AIR BAND® (shelf boost from 2.5 to
40kHz), compatible with the API 500-6B lunchbox® and 500VPR rack
systems. Following its EQ3 and EQ3-D predecessors, the EQ4® provides
unparalleled transparency and top end presence while maintaining the
true natural sound behind the mix. EQ adjustments are obtained with
minimal phase shift and detent controls allow for easy recallable
settings.
Presented in the flagship lunchbox® portable format,
the EQ4® offers the legendary AIR BAND® and five other sonically
superior band passes. Maag Audio is an official member of the VPR
Alliance.
| Specifications |
Value |
| Frequency Response |
-2 dB points, 10Hz & 75kHz |
| Nominal Input Impedance XLR) |
48 K Ohms, balanced |
| Nominal Output Impedance (XLR) |
50 Ohms, balanced |
| Headroom |
+27 dBu |
| THD + Noise |
< 0.005% |
|
