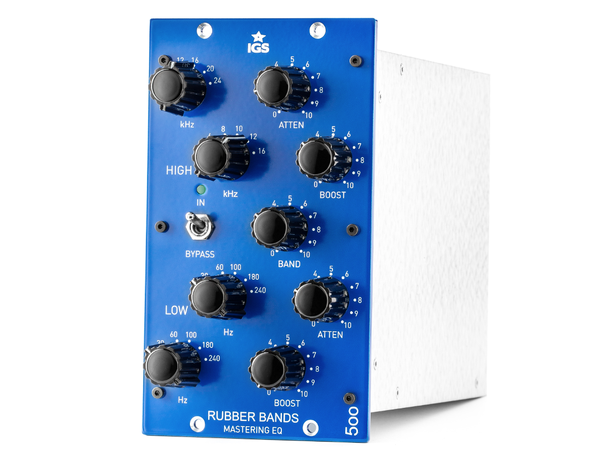

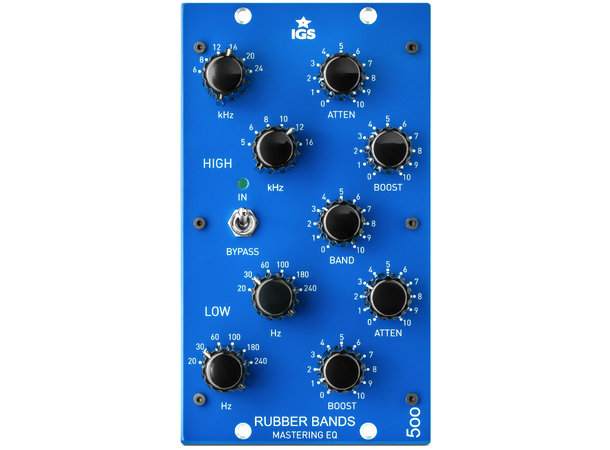

RB 500 ME

Stereo Passsive Mastering EQ

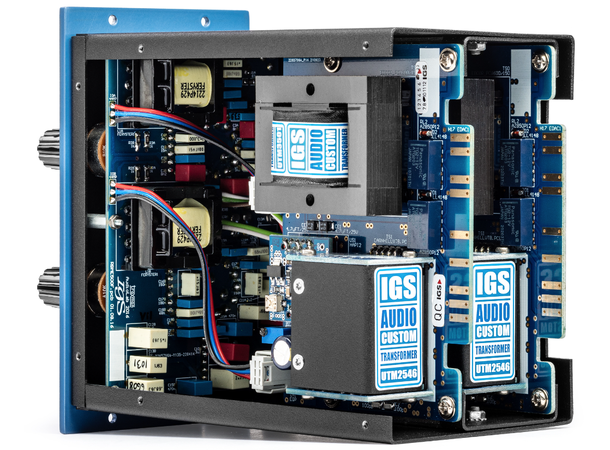

RB500ME is a stereo passive equalizer packed into a double 500-series module. This beast is equipped with transformer balanced inputs and outputs (IGS Custom) as well as a class-A driver circuit. Of course, the entire filtering section is passive and it mirrors analog equalizers from the 60s. There is a separate frequency selector for low cut and boost sections. Top quality potentiometers and ELMA switches were used to achieve outstanding performance.



The first ever Stereo Pulteq-style EQ in 500 format.
The Rubber Bands is a wonderful tool that can add multiple levels of color to any track or mix. The best thing about, it is that you can set it up in various ways, all sounding clearly distinctive and great at the same. This is the device that gives the studio engineer an opportunity to add their own personality to the music.



SPECIFICATIONS:





BASIC FEATURES

  • Boost/Cut Range +/- 20 dB
  • Hard wire bypass
  • All stepped manipulators Frequency selectors
  • Q factor 0.5 - 4

INPUT & OUTPUT

  • Input Impedance (balanced) 10k ohm
  • Output Impedance (balanced) 600 ohm
  • Audio transformers IGS Customon input and output

LEVELS

  • Operating Level +4 dBu
  • Max input level +20 dBu
  • Max output level +22 dBu
  • Headroom (@ +4dBu) 18 dB
  • Noise Level -99 dBA

BANDWIDTH

  • Frequency response 20 Hz to 20k Hz, +/- 0.1 dB
  • DISTORTION (@ 20 HZ - 20 KHZ)
  • THD+N 0.012%
  • Crosstalk 75 dB

POWER

  • Power consumption 7W

PACKING BOX

  • Shipping weight 1.5 kg
