TK-Audio T-Komp 500 series
The T-Komp has a unique design which offers a modern take on the old vari-mu ratio curve. The ratio is level dependent and increases with the signal level, a feature that will give you numerous possibilities
To make the T-Komp more useful it has two ratio ranges. The first one goes up to 20:1, perfect for instrument tracking and smashing drums etc., the second, 2:1, is a more narrow range which makes it more suitable for bus compression.
The RMS detector has five settings, four from fast to slow where number four, the slowest, is similar to the old 160VU. The fifth position is a program dependent adaptive mode.
- Input impedance: 24kohm
- Output impedance: 50ohm
- Max in/output level: +26dBu
- Frequency response: 20Hz to 20kHz +/- 0,1dB
- Signal to noise ratio @ 0dBu: better than 94dB
- THD: level and compression dependent, mostly even harmonics

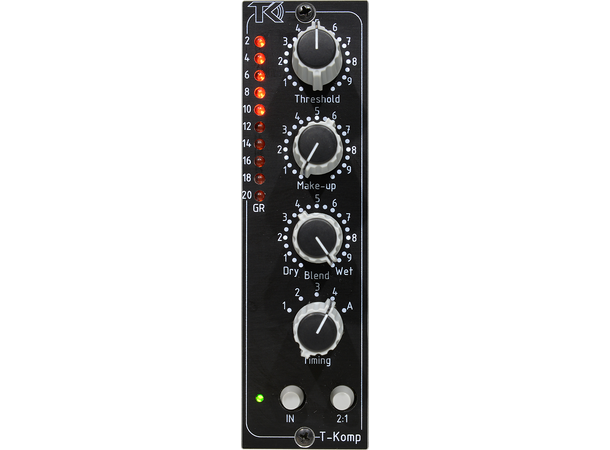

Features:
- Threshold
- Make-up gain: 0 to +20dB
- Blend control: from dry to wet
Average timing:
- 1mS / 40mS (most useful for peak limiting)
- 5mS / 200mS
- 10mS / 400mS
- 25mS / 1000mS (similare to the old 160vu)
- Adaptive mode
The attack and release are locked in relationship to each other.
- In: compression in/out
- 2:1: selects a more narrow ratio range
- Gain reduction meter
Specifications and components may be changed or updated without further notice.
