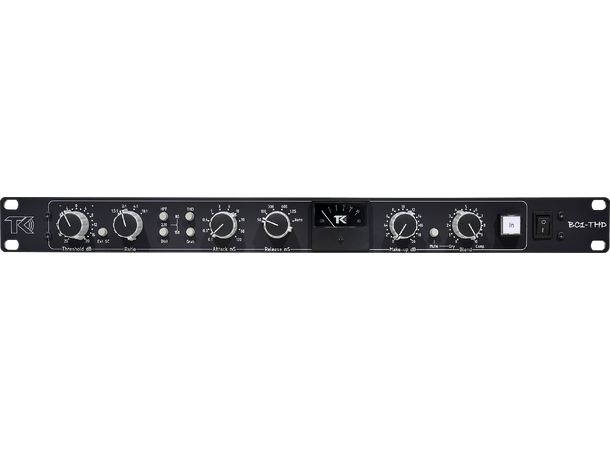

The BC1-THD provides smooth bus compression that applies for both mixing and tracking.
Engineers call it “The Magic Glue” when the BC1-THD’s  transparent compression strengthens mixes without compromising clarity.
The built-in blend control makes it easy to apply parallel compression by adjusting the blend of dry and compressed signal. A switchable sidechain filter can be applied which makes the BC1-THD less responsive to low frequency energy. The THD function adds more harmonics to the signal and the “grab” mode selects a harder threshold knee on all four ratio settings. Smooth and transparent compression will never go out of fashion.

• Three HPF frequencies.
• THD function that adds more even harmonics.
• Grab function that selects a harder threshold knee.
• Blend control for parallel compression.
• All controls stepped for easy recall.

Specs:

• Frequency response: 20Hz to 20kHz less than -0,025dB
• Frequency response: 20Hz to 80kHz less than -0,3dB
• Blend control fully CW (dry)
• THD+N @ 0dBu: less than 0,0045%
• THD @ 0dBu: less than 0,001%
• THD+N @ +26dBu: less than 0,02%
• THD @ +26dBu: less than 0,02%
• Blend control fully CCW (straight)
• THD+N @ 0dBu: less than 0,00045%
• THD+N @ +26dBu: less than 0,0003%
• Input impedance: 20kohm
• Output impedance: 50ohm
• Max input level: +26dBu
• Max output level: +27dBu @ 600ohms load

Features:

• Threshold: -20dB to +20dB
• External sidechain: in/out
• Ratio: 1.5:1 / 2:1 / 4:1 / 10:1 /
• HP Filter: 80Hz, 150Hz, 220Hz, -6dB octave
• THD: adds more even harmonics
• Grab: selects a harder thres hold knee
• Attack: /0.1/0.3/0.6/1/3/6/10/30/60/120mS
• Release: 50mS/100mS/300mS/600mS/1.2S/Auto
• Gainreduction meter
• Make-up: 0 to +20dB
• Dry signal mute
• Blendcontrol: from dry to compressed
• Compression in/out
• External sidechain input: unbalanced TRS jacks
• Internal, regulated powersupply with a toroidal transformer
• 115 or 230V, selectable

Specifications and components may be changed or updated without further notice.
