OJAS / NNNN ON8 SMALL CLUB SYSTEM

TThe ON8 passive is a 2-way full range loudspeaker system with an 18” studio grade woofer and a modern 1” exit compression driver on a biradial horn. The system is designed with large overlap ranges so that a seamless system integration and optimized dedicated ranges is achieved within each bandwidth.

Our goal with this design was to revisit the classic 2 way concept, and evolve it with all improvements we could think of to increase both the frequency range and sound quality.

ON8 can be configured either as a floor standing or flown system, and is available with a passive filter or in a 2-way configuration.he club system is a 3 ways active system where each loudspeaker stack consists of a dual 12” bass horn, a
single 8” bass/low-mid horn and a classic style wide biradial horn loaded with a modern compression driver.

The system is designed with large overlap ranges so that a seamless system integration and optimized
dedicated ranges is achieved within each bandwidth.

The modern compression driver ensures that the high frequency experience is essentially without break up
modes and thus will be less fatiguing over time.

The mid-bass/low-mid excels in the kick region.

The bass horn moves a lot of air from 30Hz so even though this is a compact system it provides a physical
experience in a similar way to the larger systems.

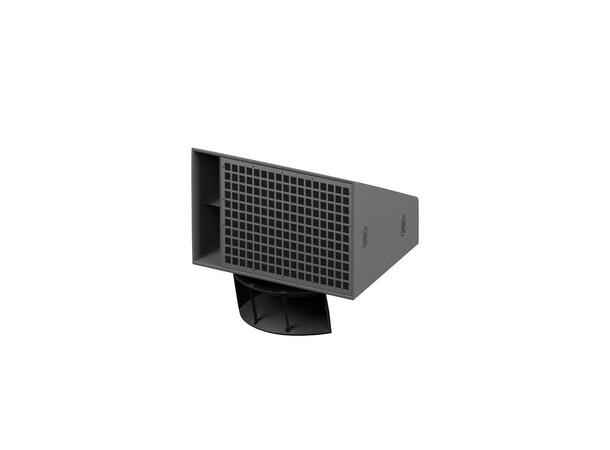

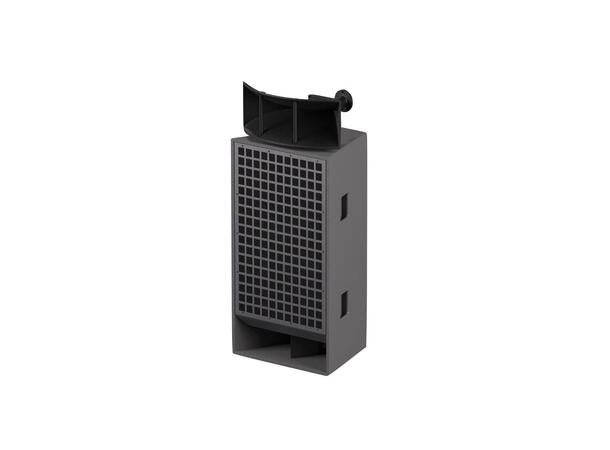

ON8 comes in two versions, horizontal or Vertical.

Specifications one loudspeaker stack:

Preliminary specifications:

Frequency response: 30Hz-20kHz
Nominal dispersion HxV: 90×40 degrees
Maximum output @1m: 127dB*
Maximum peak output @1m: 133dB*

Power handling RMS

Impedance: 8ohm (min 5 Ohm)
Passive: 1250W

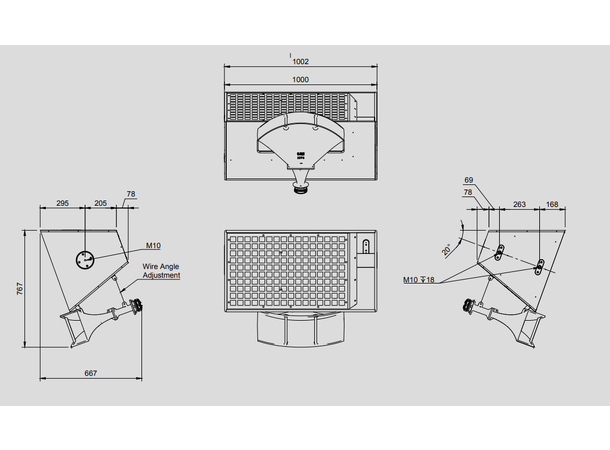

Dimensions

Width: 1002mm

Depth: 667mm

Height: 767mm

Weight: 48kg

*Simulated
