OJAS / NNNN ON4 CLUB SYSTEM

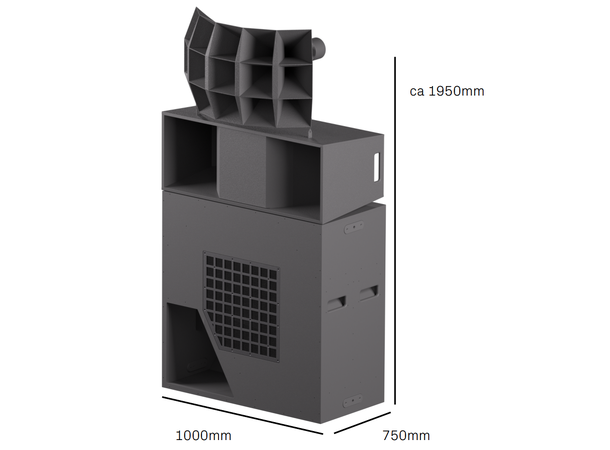

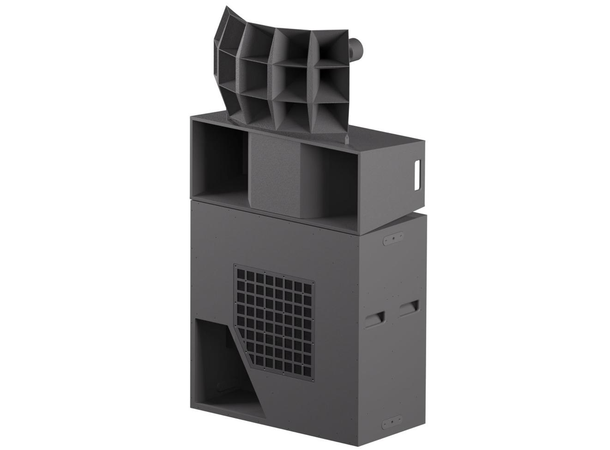

The club system is a 4 ways active system where each loudspeaker stack consists of a dual 15” bass horn, a
single 12” bass/low-mid horn and a classic style wide dispersion multicell horn loaded with a modern coaxial
high end compression driver.

The system is designed with large overlap ranges so that a seamless system integration and optimized
dedicated ranges is achieved within each bandwidth.

The coaxial compression driver ensures that the super tweeter experience is coherent with the mid range and
the listeners will have a point source experience.

The bass/low-mid excels in the kick region.

The bass horn moves a lot of air from 23Hz so even at lower listening levels the sound energy experienced is
almost four times as intense as a similar sized 35Hz system playing at the same level.

 Specifications one loudspeaker stack:

Preliminary specifications:

Frequency response: 23Hz-22kHz
Nominal dispersion HxV: 100×40 degrees
Maximum output @1m: 132dB*
Maximum peak output @1m: 148dB*

Power handling RMS

HF/supertweeter: 80W
Mid: 150W
Bass/low-mid: 1300W
Infrabass/bass: 3000W


*Simulated
