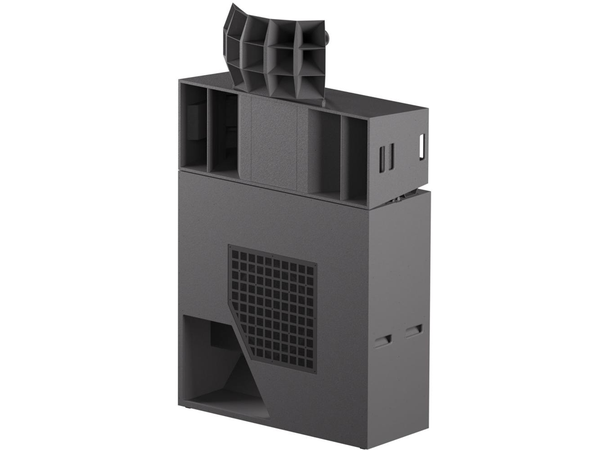

OJAS / NNNN ON2 CLUB SYSTEM

The large club system is a 4 ways active system where each loudspeaker stack consists of a dual 21” infrabass/
bass horn, a single 18” bass/low-mid horn and a classic style wide dispersion multicell horn loaded with a
modern coaxial high end compression driver.

The system is designed with large overlap ranges so that a seamless system integration and optimized
dedicated ranges is achieved within each bandwidth.

The coaxial compression driver ensures that the super tweeter experience is coherent with the mid range and
the listeners will have a point source experience.

The bass/low-mid goes almost as deep as the bottom end of traditional club stacks and excels in the kick
region.

The infrabass/bass horn moves a lot of air from 16Hz so even at lower listening levels the sound energy
experienced is almost four times as intense as a typical 30Hz system playing at the same level.

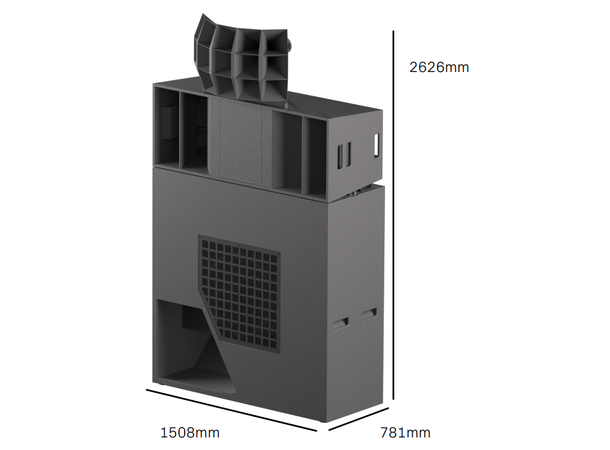

 Specifications one loudspeaker stack:

Preliminary specifications:

Frequency response: 16Hz-22kHz
Nominal dispersion HxV: 100×40 degrees
Maximum output @1m: 135dB*
Maximum peak output @1m: 148dB*

Power handling RMS

HF/supertweeter: 80W
Mid: 150W
Bass/low-mid: 1300W
Infrabass/bass: 3000W



*Simulated
