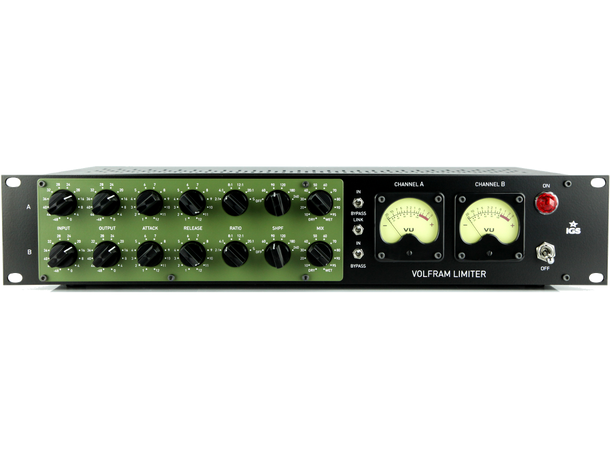

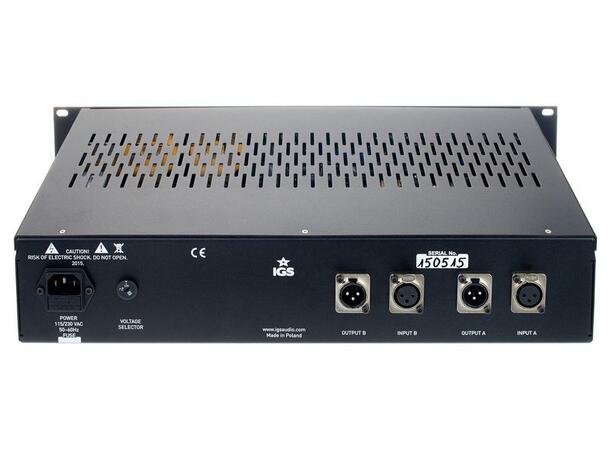

Volfram Limiter

The Volfram Limiter is a dual mono version of the legendary 1176 archetype.

The Legacy.
The 1176 is a very well known and appreciated compressor in professional recording studios all over the world. Whoever heard how this compressor works with vocals will never be able to manage without one. Additionally the Volfram works great with drums, synths and any other sources.

Wet & Warm.
It is a 45dB transistor amplifier equipped with a remarkable limiter. Compression is achieved with the FET transistors. At extreme settings the Volfram adds some pleasant distortion to the output. All manipulators are 12-pole (6-pole for ratio, HPF) switches. It is a pure A class circuit.

DEVICE TYPE

• Fet Compressor BF245A, matched transistor


BASIC FEATURES

• Sidechain HPF 240, 180, 120, 90, 60, Off
• All stepped manipulators Yes


INPUT & OUTPUT

• Input Impedance (balanced) 10k Ohm
• Output Impedance (balanced) 600 Ohm, IGS Custom transformers


LEVELS

• Operating Level +4dBu
• Max input level +18dBu
• Max output level +18dBu
• Noise Level 110dB A
• Max. gain 45 dB
• Max Gain Reduction 30 dB


TIME CONSTANTS

• Attack: 20-800 microseconds (1 – slow, 12 - fast)
• Release: 0.1 - 1,5 s (1 – slow, 12 - fast)


BANDWIDTH

• Frequency response 8 Hz - 22 kHz +/- 0.2dB
• DISTORTION (@ 20 HZ - 20 KHZ)
• Signal to Noise Ratio >84dB
• THD 0.12 %
• THD+N 0.19 %
• Crosstalk 100dB


POWER

• Power consumption 20 Wats
• Power supply Internal


PACKING BOX

• Dimensions 70 x 50 x 30 cm
• Shipping weight 8 kg
