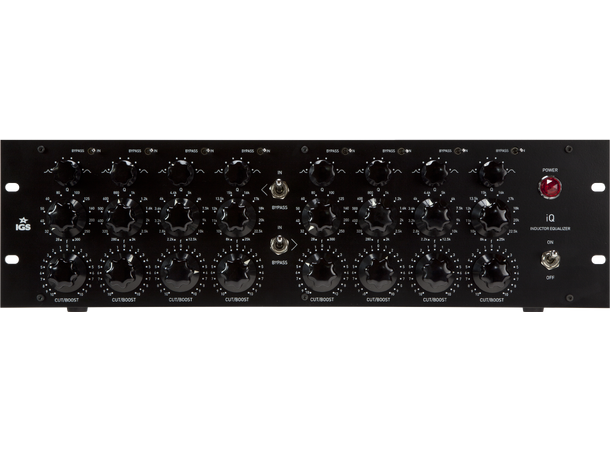

iQ. Inductor Equalizer
The sweetest parametric EQ
Precise & All stepped control. Not your grandpa’s EQ.
IGS IQ Equalizer is a modern application of the noble sound of analog equalizers. This very precise, parametric equalizer works great on every stage of production. It can add marvelous color to the signal, while maintaining the whole character of the original sound. This is a unique phenomenon possible only with analog processing. As opposed to digital eq it maintains neutrality and clarity on every setting. The simultaneous boosting and cutting of similar frequencies are the core secret of this device.
This is the typical effect of analog filters in the audio path. Most of the sound correction is in micro-manipulation. The frequency range is divided into 4 bands: Sub, Bass, Mid, High. In every band the frequency and boost/cut level can be set.
The frequency range is divided into 4 bands: Sub, Bass, Mid, High, allowing you to control the frequency, boost/cut, bandwidth and bypass of each band! Now imagine two channels of that!!
BASIC FEATURES
- Q factor 0.3 - 6
- Boost/Cut Range +/- 10 dB
- Hard wire bypass

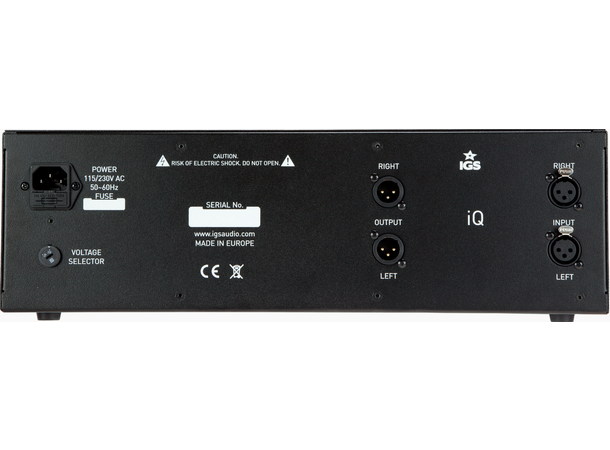

INPUT & OUTPUT
- Input Impedance (balanced) 10k ohm
- Output Impedance (balanced) 600 ohm
- Audio transformers Input & Output: IGS Custom transformers
LEVELS
- Operating Level +4dBu
- Max input level +22dBu
- Max output level +26dBu
BANDWIDTH
- Frequency response 20 Hz - 20k Hz (+/-0.1 dB)
- DISTORTION (@ 20 HZ - 20 KHZ)
- Crosstalk 102 dB
POWER
- Voltage 115/230V, 60/50Hz
- Power consumption 25W
- Power supply internal
PACKING BOX
- Dimensions 70x40x30 cm
- Shipping weight 4 kg
