VSM-2 MS EXTENSION

A.K.A. MIX SATELLITE
The VSM-2 is a creative fully analog Mix and Mastering tool. The VSM offers MS, Blending and two sophisticated coloration generators in 2U size. The VSM-2 is also available in a “basic version” without harmonic Generators.

This represents a „All In One“-solution for Mastering studios with no more need to invest in mastering consoles, switching devices, monitor controllers, MS En & de-coders etc.

Like all Vertigo Sound products, the VSM-2 is manufactured to the highest industry standards to guarantee the utmost performance and maximum durability.

UNIQUE FEATURES

VSM-2 Basic:

• All analog, latency free processing

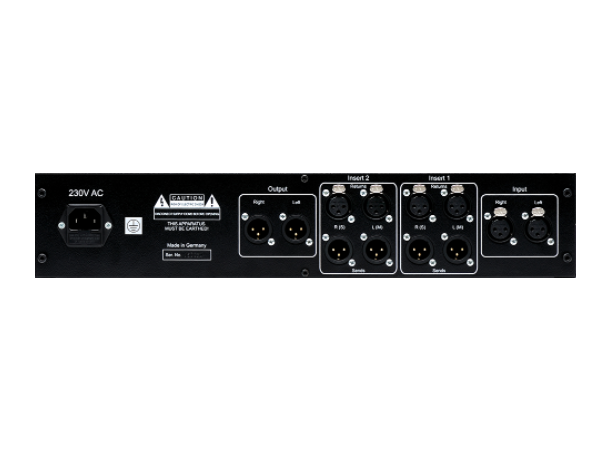

• Two fully balanced inserts on XLR offering MS En & DE-coding
• Level compensated MS En & DE-coding

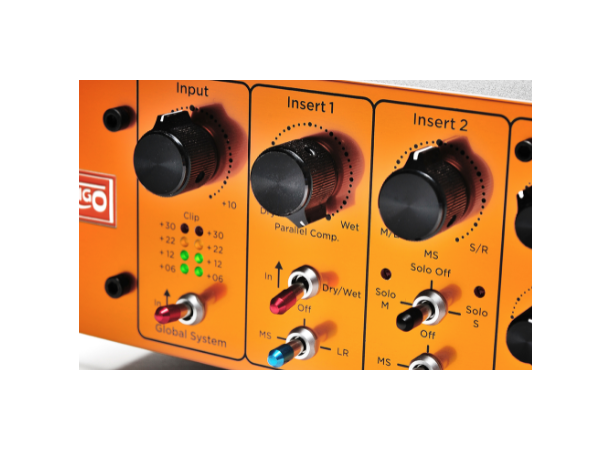

• Insert 1 provides Dry-Wet Mix control „Parallel Compression“ for LR and MS
• Insert 2 provides „M&S Stereo Width“ control
• Level compensated AFL Solo for M and S-Signal
• All controls can be easily recalled via stepped controls, pointer knobs & fine scales
• Hardwire bypass for all and each processing stage
• Excellent headroom with up to +30dbu at the Ins & Outs
• Level matching of the inputs and outputs
• Fast input and output metering plus various clip leds
• Colour coded switch controls for easy intuitive operation

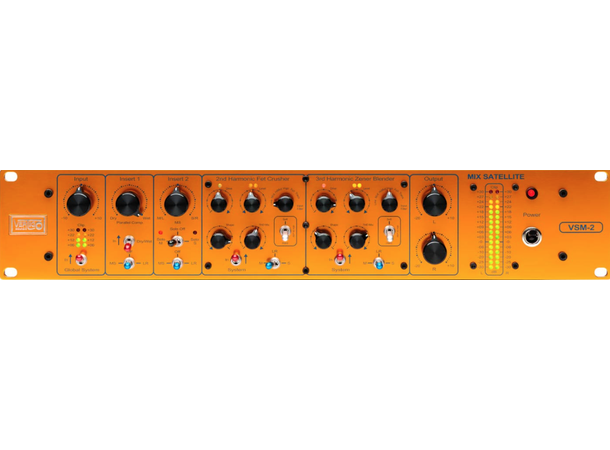

• Superior crafted & anodized frontplate in „sun orange“ & blue metallic silk screen print


VSM-2 „full version“ additional features:

• Two independent stereo coloration circuits
• Stereo & M or S Generation of pure 2nd & 3rd harmonics
• Each coloration generator is independantly switchable to M, S or LR
• Excessive harmonic filtering possibilties for each harmonic generator
• RMS LED level control for equal level of harmonic generators
• Unique „Track“ mode for processing individual instruments
• Soft & Hard clip switching capability


THE VSM-2 A.K.A MIX SATELLITE

The VSM-2 a.k.a. Mix Satellite offers plenty of hugely useful functions for mixing and mastering in one unit. Of course in daily studio life, even in the worst case scenario, you won‘t need all the functions of the VSM-2 at once. Carefully spot the problems you want to fix and choose the appropriate processing technique of the VSM-2. The Mix Satellite allows you to try different processing strategies without any loss of time!
You can switch between conventional Stereo and MS processing within seconds or you can blend the Mix with the unprocessed signal by dialing only one knob. The Solo M&S Function allows you to listen closely to M or S and to optimize your processing setting! Technical progress and purity of analogue and digital equipment effectively removed distortion as a stylistic device from the audio engineers‘ tool repertoire of today.

The VSM-2 Harmonic generators allow you to colour, saturate, enhance, compress, limit or distort your program material! Now you are able to put real analog life into „dead sounds“ out of the box. All parameters to create your own kind of musical coloration are on hand with the Mix Satellite VSM-2!

Technical Specifications

• All Ins & Outs electronically balanced
• Dynamic Range: 128 db
• Frequency response: 10 Hz … 100 kHz (+- 1 db)
• Max. Output Level: + 30 dBu
• THD at +28dbu <= 0,003%
• Signal to Noise Ratio at + 6 dBu = 104 db (20..20 kHz, unweighted, RMS)
• Noise: – 98 dBu (20 Hz – 22 khz – unweighted, RMS) @ 0 db Unity Gai
• Power consumption: max 30 Watts
