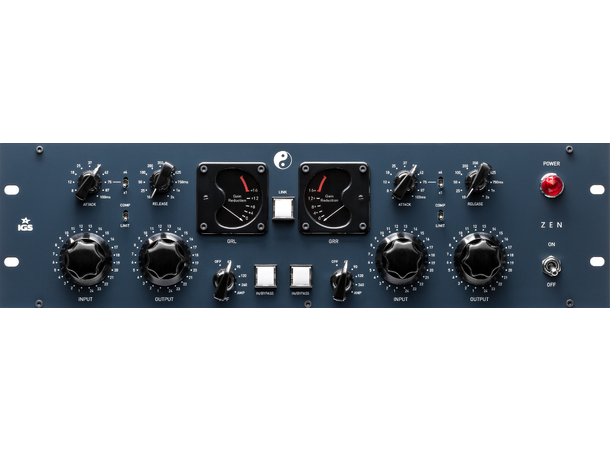

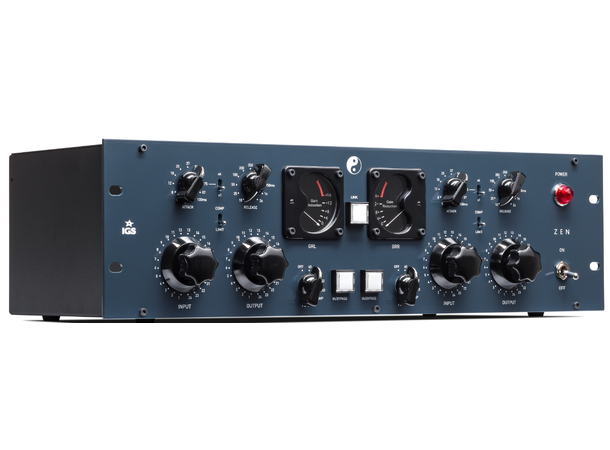

ZEN

If you want your music sounds like yin n' yang, you need a ZEN.
The ZEN is unique. The construction is based on the legendary compressors used in Abbey Road Studios. It's the musical canon of art used by The Beatles. The ZEN Compressor audio circuit is based on 14 bi-polar transistors in each channel. The compression is achieved by 8 hand-matched Zener diodes biased by a perfect feedback circuit.

SPECIFICATIONS:

BASIC FEATURES

• All stepped manipulators
• HPF Yes, 60, 90, 120, 240Hz
• Stereo Link
• Hard wire bypass
• Compression type Zener diodes

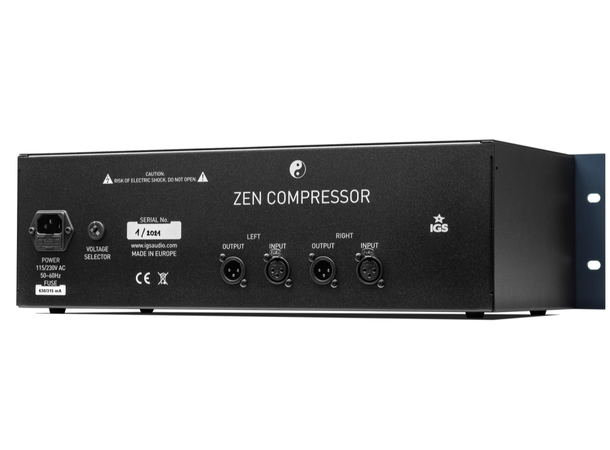

INPUT & OUTPUT

• Input Impedance (balanced) 10k Ohm
• Output Impedance (balanced) 75 Ohm
• Audio transformers, IGS Custom, on inputs and outputs


LEVELS

• Operating Level +4 dBu
• Dynamic Range >100dB
• Noise Level -99dBu
• Max. gain 36dB
• Max Gain Reduction -35dB


TIME CONSTANTS
Ratio Variable, depends on the input settings, plus Limiter
Attack: 8 - 100 ms, x4 switchable
Release: 10 - 2000 ms, x4 switchable

BANDWIDTH

• Frequency response 20 Hz - 20 kHz, +/- 0.1dB
• DISTORTION (@ 20 HZ - 20 KHZ)
• Signal to Noise Ratio >90dB
• THD+N >86dB
• IMD (SMPTE) >90dB
• Crosstalk 80dB @ 1kHz


FRONT PANEL

• VU Meters Yes, GR in dB's, left & right,


POWER

• Voltage Selectable 115/230 VAC
• Power consumption <30 VAC
• Power supply Linear, internal


PACKING BOX

• Dimensions 19" unit
• Shipping weight 9 kg / 5 lbs


OTHERS

• Used for Mastering, tracking
