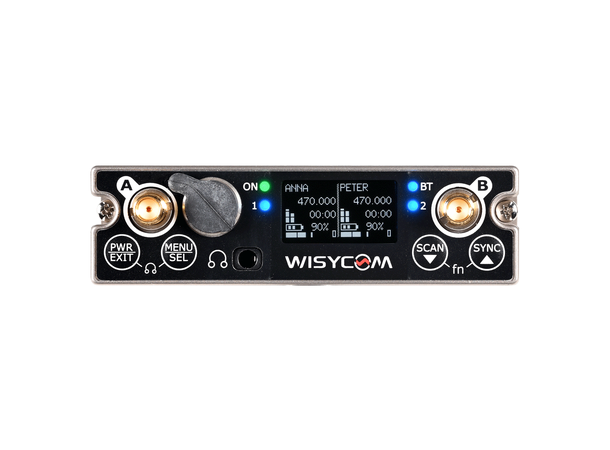

MCR54 DUAL is a camera dual true diversity wireless microphone receiver system in a modular stand alone or slot in configuration.
Each receiver has a dedicated filter and then can be tuned independently.

MAIN FEATURES:

• 2 channels True Diversity receiver with indipendent tuning (4 Receiver boards!)
• Exceptional compactness and high robustness
• DSP Analogue & Digital Audio Output (AES3)
• Up to 790 MHz bandwidth in 470/1260 MHz range
• Next Gen Multiband front-end filtering:
  • High Q electronically tunable filter in 470-800 MHz
  • 1st narrowband filter
  • 2nd narrowband filter
• Wideband and Narrowband DSP-FM operation (SW selectable):
  • Narrowband allows more 50% band efficiency
  • Narrowband allows about 3dB extra sensitivity and noise immunity
• Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
• High contrast OLED display
• Automatic scan & transmitter programming through infrared and Bluetooth 5
• DSP based for extreme flexibility and multi-companding operations
• Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager v3.2.1 (computer SW)
• Rear antenna connectors and micro audio and power adapter
