WISYCOM MPR52-ENG

Two Channels - UltraWide band Receiver

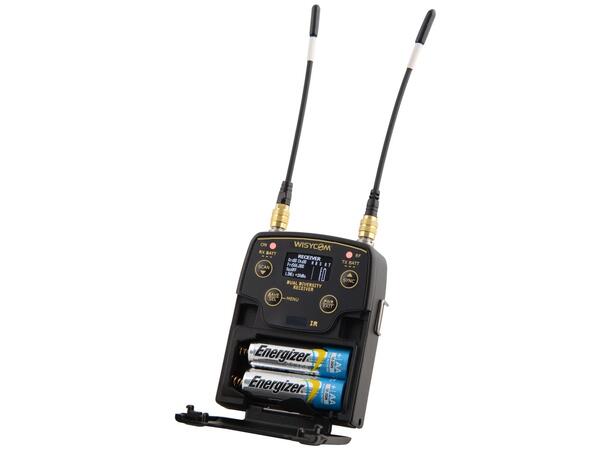

MPR52-ENG is a compact two channels receiver designed for professional ENG applications.
The new MPR52 has two built-in diversity receivers with both analogue and digital outputs. With up to 790 MHz bandwidth in the 470/1260 MHz range, the MPR52 features next generation multiband front-end filtering.

The software selectable wideband and narrowband DSP-FM operation gives users options based on their project needs.
Country specific Surface Acoustic Wave (SAW) filters are also available (USA: 935-960 MHz and Japan: 1240-1260 MHz).

The receiver also offers convenient function buttons, including a dedicated frequency scan option.
Battery management is flexible as it features standard battery packs that can be charged with the dedicated charger or through the micro-usb-B connector.

FEATURES

• Two channels diversity receiver
• DSP Analogue & Digital Audio Output (AES3)
• Up to 790 MHz bandwidth in 470/1260 MHz range
• Next Gen Multiband front-end filtering:
  – High Q moving filter in 470-960 MHz
  – High Q moving filter in 960-1160 MHz (DME)
  – Country specific saw filters: USA 940-960 MHz & Japan 1240-1260 MHz or 806-810 MHz
• Wideband and Narrowband DSP-FM operation (SW selectable):
  – Narrowband allows more 50% band efficiency
  – Narrowband allows about 3dB extra sensitivity and noise immunity
• Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
• High contrast OLED display
• Automatic scan & transmitter programming through infrared
• DSP based for extreme flexibility and multicompanding operations
• Miniature design with integrated battery pack:
  – rechargeable lithium pack
  – 2 x AA batteries
• Operation and charger (lithium) thru USB connector
• Monitor & control through USB and Wisycom Manager 2.0 (computer SW):
  – This transform MPR52 in a quick and low noise portable spectrum scanner!
