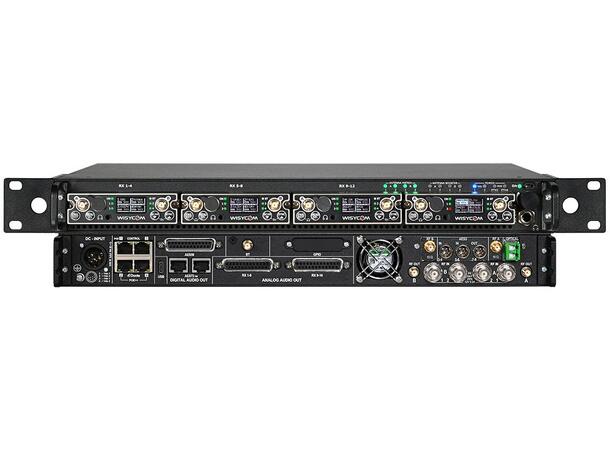

MRK16 is a modular wireless-microphone receiver system that fit up 16 channels in a
compact 19” 1RU alluminium chassis. It accepts up to 4 MCR54 receivers, providing antenna
distribution, RF filtering and advanced audio routing (analogue, AES3 and Dante).

FEATURES

• Up to 16 true diversity channels in a compact 19” 1U rack (4x MCR54)
• Ultra wideband receiver system from 470 to 1260 MHz equipped with 10 automatically selected band-pass filters
• RF Over Fiber for reception without distance limits! The fiber module EXP2 allows to replacement of coaxial cable and antennas located miles away
• Multiple audio outputs:
  -Digital (AES72&AES59)
  -Dante (primary&secondary)
  -Analog (2xDB25 Tascam wiring)
• Dual Area Matrix to select and combine 2 diversity zones. Antenna booster and remote control of Wisycom LFA/ADFA/BFA.
• Bluetooth 5 Long Range: Class 1 (100mW) remote control to connect Wisycom devices within a range of hundreds of meters.
• Daisy chain up to 4 racks for 64 channels in only 4U
• 5 ports manageable Gigabit Ethernet switch (ETH5 is connected to an internal SFP module for fiber data)
• Redundant (dual) power supply on XLR
• Dual Power Over Ethernet input and PoE output (PE1 optional)
• USB-C connectivity with powering (1.5A
