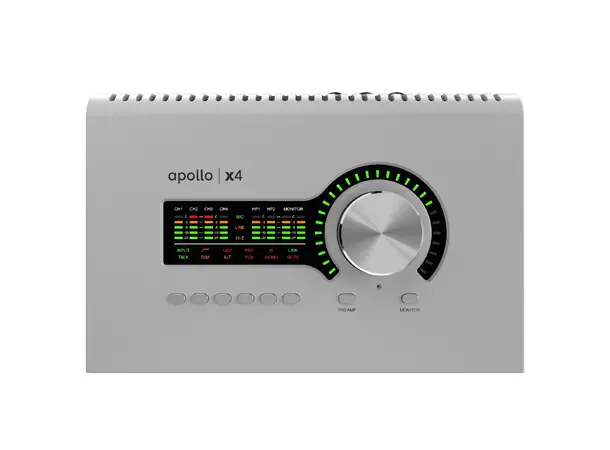

Universal Audio Apollo x4 Gen 2 STUDIO

Ta opp hits med verdens kraftigste skrivebordslydkort.
Lag større prosjekter med vår kraftigste stasjonære Apollo. Med høyoppløselig lydkonvertering, fire Unison™ mikrofonforforsterkere og sanntids UAD-behandling – som lar deg ta opp gjennom plug-ins fra Neve, API, Manley, Auto-Tune og hundrevis flere – Apollo x4 forbedrer studioet ditt med legendarisk UA-lyd , bygget for å inspirere ditt neste samarbeid.

• 12 x 18 Thunderbolt lydkort med DUO eller QUAD Core DSP plug-in prosessering
• Fire Unison™ mikrofonforforsterkere, Hi-Z instrumentinngang, optisk Toslink-inngang (ADAT eller S/PDIF)
• To 1/4" monitorutganger, fire 1/4" linjeutganger (ALT 1/2), to 1/4" TRS hodetelefonutganger
• Eliteklasse Apollo X Gen 2 konvertere med 24-bit / 192 kHz oppløsning
• Forbedret D/A for kritisk monitoring og avspilling med 129 dB dynamisk område
• Kalibrer hovedmonitorene og hodetelefonutgangene dine med Apollo Monitor Correction drevet av Sonarworks®
• Fullt utstyrt monitorkontroller med alternativ høyttalerbytte og integrert talkback for enkel kommunikasjon med artisten
• Oppdatert UAD Console-app med Auto-Gain, Plug-In Scenes, subwoofer-integrasjon med Bass Management, støtte for immersive lyd og mer
• Onboard DSP støtter over 200 UAD plug-ins via VST, AU og AAX 64-formater i alle større DAW-er
• Inkluderer opptil 50+ UAD-plugin-moduler med Essentials+ eller Studio+ Editions
• Kompatibel med LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live og mer*
• Kan utvides med Thunderbolt Apollo-lydkort eller utvalgte modeller over Dante
• Gratis bransjeledende teknisk støtte fra kunnskapsrike lydteknikere

SYSTEM

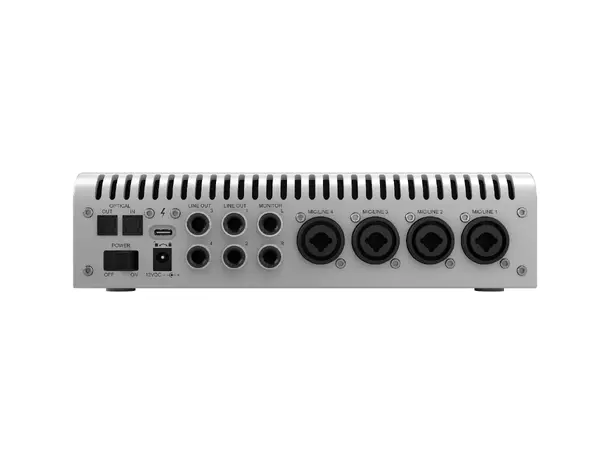

I/O Complement

Simultaneous Channel I/O Count (analog + digital) 12 x 18 (ADAT mode)
Microphone Inputs Four
High Impedance (Hi-Z) Instrument Inputs Two
Analog Line Inputs Two
Analog Line Outputs (DC coupled) Four (six including Monitor outputs
Analog Monitor Outputs (DC coupled) Two (one stereo pair)
Headphone Output Two stereo
Digital Audio Port (ADAT or S/PDIF, selectable) One input, one output
Thunderbolt 3 Port* One
*(Mac only) Thunderbolt 1 and 2 connections supported via Apple Thunderbolt 3 to Thunderbolt 2 adapter

A/D – D/A Conversion

Simultaneous A/D conversion Four channels
Simultaneous D/A conversion Ten channels
Available Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample 24
Analog Round-Trip Latency 1.1 milliseconds @ 96 kHz sample rate
Analog Round-Trip Latency through four UAD legacy plug-ins (included) via UAD Console software 1.1 milliseconds @ 96 kHz sample rate (no additional latency via Realtime UAD Processing)

ANALOG I/O

Microphone Inputs 1 & 2

Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 123 dB (A–weighted)
THD + Noise (1 kHz @ 24 dBu, -1 dBFS) -115 dB (0.00018%)
Maximum Input Level (PAD on) 25 dBu
Default Input Impedance
(variable via Unison plug-ins) 5.4 K O
Gain Range +10 dB to +65 dB
Pad Attenuation
(switchable per mic input) 20 dB (variable via Unison plug-ins)
Phantom Power
(switchable per mic input) +48V
Connector Type XLR Female, pin 2 positive (Combo XLR/TRS)

Hi-Z Input (600 K O input termination)

Frequency Response 20 Hz – 20 kHz, ±0.05 dB
Dynamic Range 121 dB (A–weighted)
THD + Noise
(1 kHz @ 11.4 dBu, -1 dBFS) -110 dB (0.00032%)
Maximum Input Level
(at minimum gain) 12.4 dBu
Default Input Impedance
(variable via Unison plug-ins) 1 M O
Gain Range +10 dB to +65 dB
Connector Type ¼" Female TS Unbalanced

Line Inputs 1 & 2

Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 122 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -115 dB (0.00018%)
Maximum Input Level
(reference level @ +4 dBu) 20.2 dBu
Input Impedance 10 K O
Gain Range +10 dB to +65 dB
Connector Type ¼" Female TRS Balanced

Line Outputs 1 & 2

Frequency Response 20 Hz – 20 kHz, ±0.01 dB
Dynamic Range 127 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -119 dB (0.00011%)
Maximum Output Level
Reference level @ +4 dBu
Reference level @ -10 dBV
20.2 dBu
14.5 dBu
Output Impedance 100 O
Connector Type ¼" Female TRS Balanced

Monitor Outputs L & R

Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 129 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -120 dB (0.0001%)
Maximum Output Level 20.2 dBu
Output Impedance 100 O
Connector Type ¼" Female TRS Balanced

Stereo Headphone Outputs 1 & 2

Frequency Response 20 Hz – 20 kHz, ±0.01 dB
Dynamic Range 124 dB (A–weighted)
THD + Noise
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
-112 dB (0.00025%)
-114 dB (0.00019%)
Maximum Output Level
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
15.4 dBu
15.8 dBu
Maximum Output Power (RMS)
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
69 mW
38 mW
Connector Type ¼" Female TRS Stereo
DIGITAL INPUT
Digital Audio Port
(ADAT or S/PDIF, selectable) One input, one output
Connector Type Optical TOSLINK JIS F05

S/PDIF

S/PDIF Channels One stereo input, one stereo output
Format IEC 958
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96

ADAT

ADAT Channels Up to eight input & eight output channels
Format ADAT Lightpipe with S/MUX
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
Channel Assignments @ 44.1 kHz, 48 kHz Channels 1 – 8
Channel Assignments @ 88.2 kHz, 96 kHz Channels 1 – 4
Channel Assignments @ 176.4 kHz, 192 kHz Channels 1 – 2

Clock Synchronization Sources

Internal, ADAT, S/PDIF Conditional per selected digital input type

ELECTRICAL

Power Supply External AC-to-DC Power Supply, Level VI compliant
AC Input Connector Type IEC C8, non-polarized
AC Requirements 100V – 240V AC, ˜ 50 – 60 Hz, 1.2 A MAX
DC Connector Type Male barrel plug, 2.1 mm x 5.5 mm, center positive
DC Requirements 12 VDC, ±5%
Maximum Power Consumption 19 Watts (when portable host computer not charging)

ENVIRONMENTAL

Ambient Temperature Range 32º to 104º F (0º to 40º C)

MECHANICAL

Dimensions

Width 9.17" (232.98 mm)
Height 2.51" (65.81 mm)
Depth, Chassis Only 5.87" (149.13 mm)
Depth, Including Knob & Jack Protrusions 6.12" (155.60 mm)

Shipping Box

(Length x Width x Height) 11" x 8" x 5" (279 mm x 203 mm x 127 mm)
Weight

Shipping Weight

(with box & accessories) 5.86 lbs (2.66 kg)
Weight (bare unit) 3.2 lbs (1.47 kg)

Package Contents

Apollo x4 Gen 2 Audio Interface

External Power Supply

AC Power Cable (IEC C7, non-polarized) Region Specific (USA, EU, UK, ANZ, or Japan)
