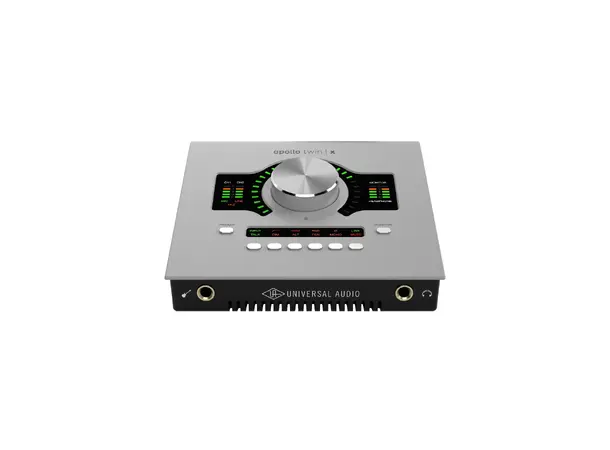

Universal Audio Apollo Twin X QUAD Gen 2 ESS (TB3/MAC/WIN)

Hør hver eneste detalj med Universal Audios mest avanserte Apollo Twin noensinne. Med høyoppløselig lydkonvertering, Unison™ mikrofonforforsterkere og sanntids UAD-behandling – som lar deg ta opp gjennom plug-ins fra Neve, API, Manley, Auto-Tune og mer uten forsinkelse – Apollo Twin X setter tiår med inspirerende analogt studio lyd rett på skrivebordet.

SYSTEM

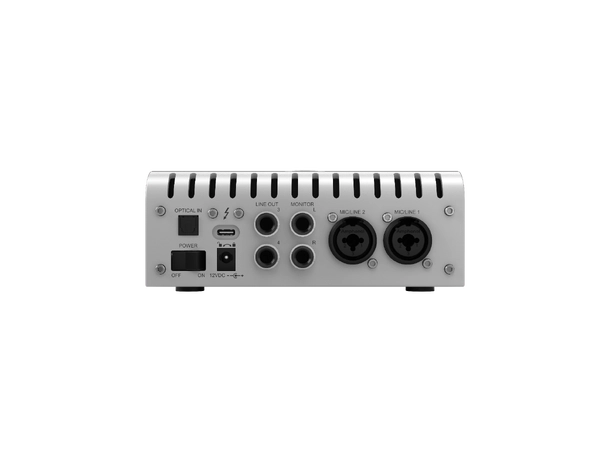

I/O Complement

Simultaneous Channel I/O Count (analog + digital) 10 x 6 (ADAT mode)
Microphone Inputs Two
High Impedance (Hi-Z) Instrument Inputs One
Analog Line Inputs Two
Analog Line Outputs (DC coupled) Two (four including Monitor outputs)
Analog Monitor Outputs (DC coupled) Two (one stereo pair)
Headphone Output One stereo
Digital Audio Port (ADAT or S/PDIF, selectable) One input
Thunderbolt 3 Port* One
*(Mac only) Thunderbolt 1 and 2 connections supported via Apple Thunderbolt 3 to Thunderbolt 2 adapter

A/D – D/A Conversion

Simultaneous A/D conversion Two channels
Simultaneous D/A conversion Six channels
Available Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample 24
Analog Round-Trip Latency 1.1 milliseconds @ 96 kHz sample rate
Analog Round-Trip Latency through four UAD legacy plug-ins (included) via UAD Console software 1.1 milliseconds @ 96 kHz sample rate (no additional latency via Realtime UAD Processing)

ANALOG I/O

Microphone Inputs 1 & 2
Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 123 dB (A–weighted)
THD + Noise (1 kHz @ 24 dBu, -1 dBFS) -115 dB (0.00018%)
Maximum Input Level (PAD on) 25 dBu
Default Input Impedance
(variable via Unison plug-ins) 5.4 K O
Gain Range +10 dB to +65 dB
Pad Attenuation
(switchable per mic input) 20 dB (variable via Unison plug-ins)
Phantom Power
(switchable per mic input) +48V
Connector Type XLR Female, pin 2 positive (Combo XLR/TRS)

Hi-Z Input (600 K O input termination)

Frequency Response 20 Hz – 20 kHz, ±0.05 dB
Dynamic Range 121 dB (A–weighted)
THD + Noise
(1 kHz @ 11.4 dBu, -1 dBFS) -110 dB (0.00032%)
Maximum Input Level
(at minimum gain) 12.4 dBu
Default Input Impedance
(variable via Unison plug-ins) 1 M O
Gain Range +10 dB to +65 dB
Connector Type ¼" Female TS Unbalanced

Line Inputs 1 & 2

Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 122 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -115 dB (0.00018%)
Maximum Input Level
(reference level @ +4 dBu) 20.2 dBu
Input Impedance 10 K O
Gain Range +10 dB to +65 dB
Connector Type ¼" Female TRS Balanced

Line Outputs 1 & 2

Frequency Response 20 Hz – 20 kHz, ±0.01 dB
Dynamic Range 127 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -119 dB (0.00011%)
Maximum Output Level
Reference level @ +4 dBu
Reference level @ -10 dBV
20.2 dBu
14.5 dBu
Output Impedance 100 O
Connector Type ¼" Female TRS Balanced

Monitor Outputs L & R

Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 129 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -120 dB (0.0001%)
Maximum Output Level 20.2 dBu
Output Impedance 100 O
Connector Type ¼" Female TRS Balanced

Stereo Headphone Outputs

Frequency Response 20 Hz – 20 kHz, ±0.01 dB
Dynamic Range 124 dB (A–weighted)
THD + Noise
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
-112 dB (0.00025%)
-114 dB (0.00019%)
Maximum Output Level
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
15.4 dBu
15.8 dBu
Maximum Output Power (RMS)
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
69 mW
38 mW
Connector Type ¼" Female TRS Stereo

DIGITAL INPUT

Digital Audio Port
(ADAT or S/PDIF, selectable) One input
Connector Type Optical TOSLINK JIS F05

S/PDIF

S/PDIF Channels One stereo input
Format IEC 958
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96

ADAT

ADAT Channels Up to eight input channels
Format ADAT Lightpipe with S/MUX
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
Channel Assignments @ 44.1 kHz, 48 kHz Channels 1 – 8
Channel Assignments @ 88.2 kHz, 96 kHz Channels 1 – 4
Channel Assignments @ 176.4 kHz, 192 kHz Channels 1 – 2
Clock Synchronization Sources
Internal, ADAT, S/PDIF Conditional per selected digital input type

ELECTRICAL

Power Supply External AC-to-DC Power Supply, Level VI compliant
AC Input Connector Type IEC C8, non-polarized
AC Requirements 100V – 240V AC, ˜ 50 – 60 Hz, 1.2 A MAX
DC Connector Type Male barrel plug, 2.1 mm x 5.5 mm, center positive
DC Requirements 12 VDC, ±5%
Maximum Power Consumption 15 Watts (when portable host computer not charging)

ENVIRONMENTAL

Ambient Temperature Range 32º to 104º F (0º to 40º C)

MECHANICAL

Dimensions
Width 6.31" (160.34 mm)
Height 2.59" (65.81 mm)
Depth, Chassis Only 5.89" (149.59 mm)
Depth, Including Knob & Jack Protrusions 6.14" (156.10 mm)
Shipping Box
(Length x Width x Height) 6" x 8" x 8" (152 mm x 203 mm x 203 mm)
Weight
Shipping Weight
(with box & accessories) 4.37 pounds (1.98 kg)
Weight (bare unit) 2.29 pounds (1.04 kg)
Package Contents
Apollo Twin X Gen 2 Audio Interface (DUO or QUAD)
External Power Supply
AC Power Cable (IEC C7, non-polarized) Region Specific (USA, EU, UK, ANZ, or Japan)
Getting Started URL Card
