Tieline Gateway, En kraftig DSP basert IP codec på 4 kanaler (Kan ikke kanalutvides med lisens)

Gateway er tilgjengelig i tre basisutgaver: En fullverdig 16 kanals og en utvidbar 8 kanaler (Kan senere oppgraderes: 2, 4 og 8 Channel og Streaming software lisens) og Gateway 4 som er låst til 4 kanaler med siste nytt i teknologi.

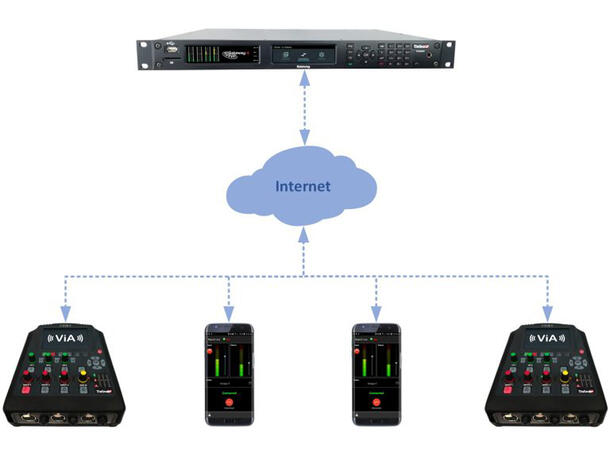

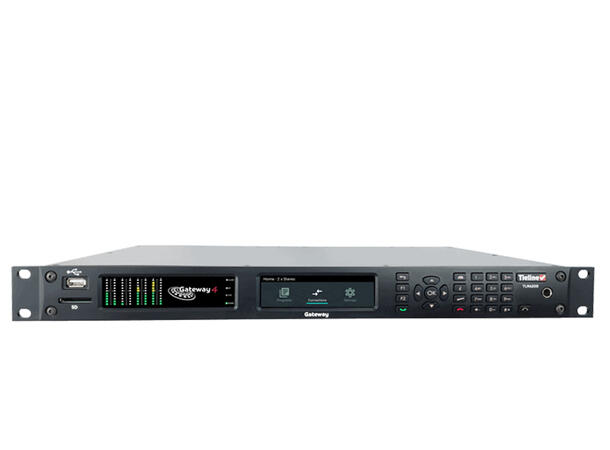

The Gateway-4 is a powerful DSP-based 1RU IP codec designed for live remote broadcasting applications, as well as STL or SSL links. The Gateway-4 enables transport of multiple channels of mono or stereo audio across the Public Internet or any QoS-enabled IP network, including T1 and T3 connections and private WANs with MPLS. The Gateway includes support for AES67, ST 2110-30, AES3 and analog I/O as standard.

Gateway-4 delivers best-in-class DSP-based reliability and performance

The new generation Gateway-4 delivers best-in-class DSP-based reliability and performance for mission critical broadcast streaming applications. It is ideal for:

• Remote broadcast applications.
• Studio-to-Transmitter Links (STLs)
• Studio-to-Studio Links (SSLs)

The Gateway-4 is designed for solutions requiring up to 4 audio streaming channels with advanced redundancy features and remote configuration and control. It supports 4 full-duplex audio channels in 1RU and is backward compatible with all Tieline IP codecs. The Gateway-4 provides two stereo connections, or one stereo and two mono connections, or up to 4 mono connections.

• AES67 Ready. Ready out-of-the-box so forget hardware card upgrades, just connect and go!

• ST 2110-30 Ready. SMPTE ST 2110-30 compliant out-of-the-box

• Analog, AES3. Support for AES67, plus AES3 (AES/EBU) and analog I/O options

• Wi-Fi (USB Dongle). Expand your network options and connect over Wi-Fi networks

• SIP and IP Intercoms. SIP EBU Tech 3326, 3368, and EBU Tech 3347

• Dual AoIP Ports. Stream AoIP from dual ports

• SD card. SD card slot for firmware upgrades, storage and SDIO

• Dual USB ports. Dual USB ports support firmware upgrades, storage and Wi-Fi modems.

• Dual Internal Power Supplies. Dual power supplies provide backup if one fails

• Dual Ethernet Ports. Connect using different Telcos for diversity using SmartStream PLUS redundant streaming
  Module Compatible. Module slot for future hardware innovations

• Module Compatible. Module slot for ISDN network compatibility, and for future hardware innovations

• Multi-Unicast. Support for  multi-unicasts over compatible IP networks to up to 20 endpoints

• Multicast. Support for multicasting over compatible IP networks to unlimited endpoints

• Alarms. Silence Detection, PSU Failure, Lost connection, Temperature, AES Input, AES Reference, SNMP and more

• Internal SSD Storage. Internal Storage for recording streams.

• Expanded Backup Options. Multiple levels of power, audio and network redundancy. The codec features dual Gigabit Ethernet ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you’re always on the air.
