Bridge-IT for inexpensive IP audio solutions…

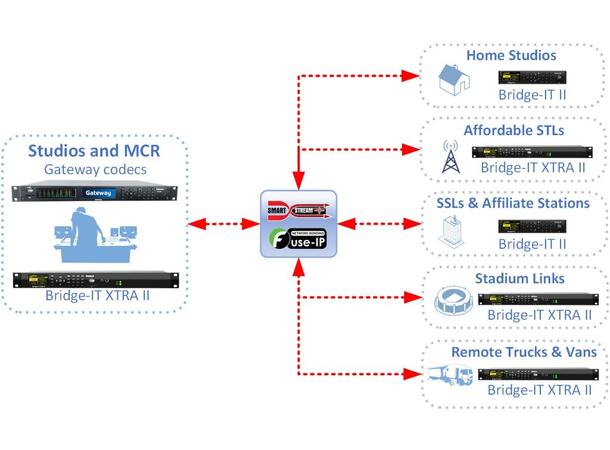

Bridge-IT II and Bridge-IT XTRA II IP audio codecs are designed to deliver affordable, reliable, and high quality broadcast solutions for:
- Home studios and simple remote broadcasts
- Studio-to-Transmitter Links (STLs)
- Studio-to-Studio Links (SSLs)

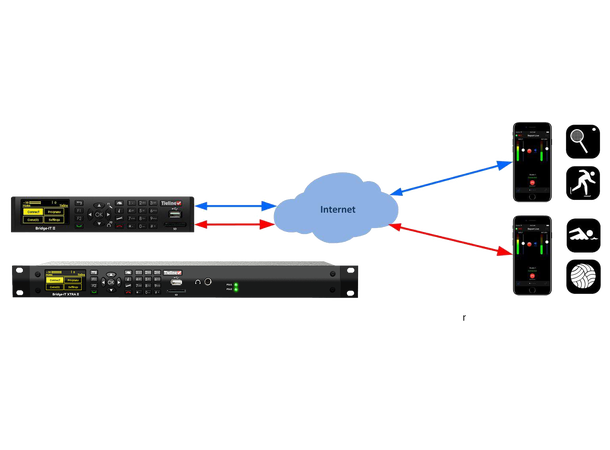

- Multi-unicasting and Multicasting applications.

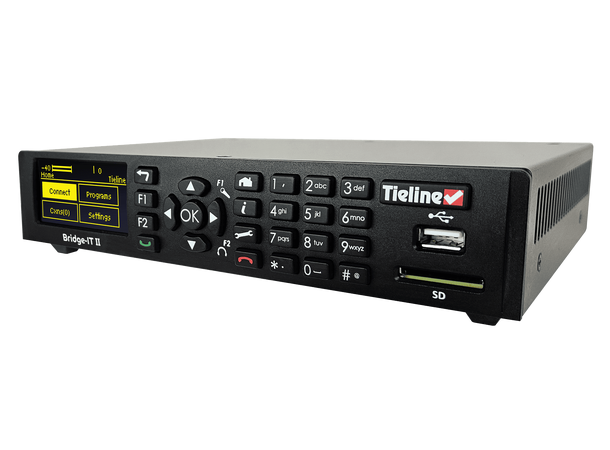

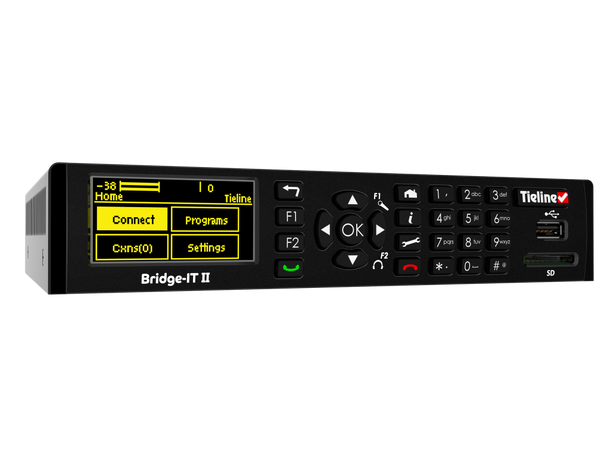

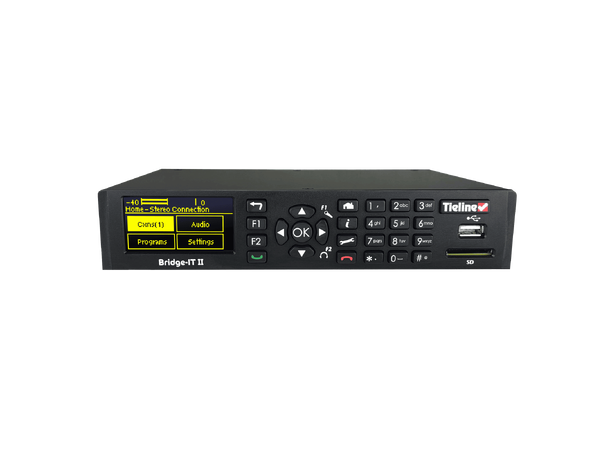

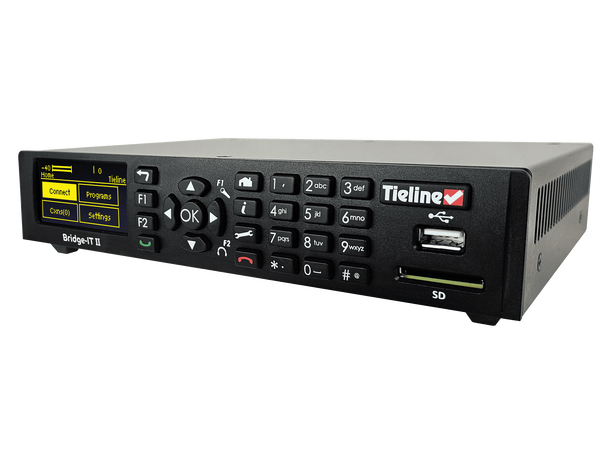

Tieline Bridge-IT II codec

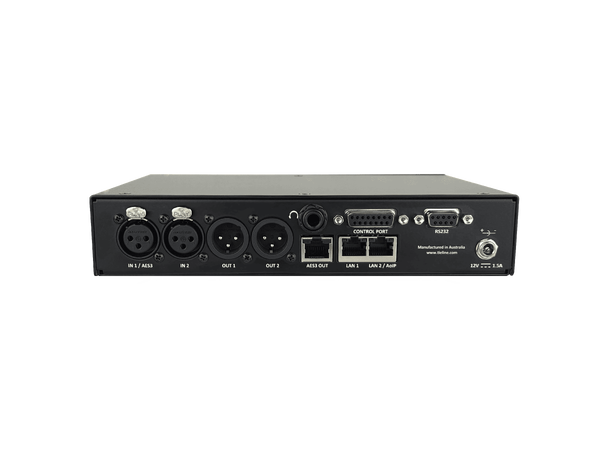

The new codecs include all your favorite first-generation Bridge-IT features: a front panel screen and keypad for simple menu navigation, XLR analog and digital AES inputs, a wide range of encoding options, and support for multi-unicast and multicast connections. New features to support modern networking requirements include:
- Native support for AES67, ST2110-30, ST2022-7, Livewire, RAVENNA and AMWA NMOS IS-04 and IS-05.
- Two full-duplex mono connections, or full duplex stereo.
- Multiple Ethernet and AoIP ports.
- Failover to another connection, HTTP stream, or audio file playback.
- Support for wireless cellular modems.
The codecs support automated failover and SNMP for STL links. SmartStream PLUS redundant streaming and Fuse-IP data aggregation are also included as standard. They also connect over SIP with devices that are EBU N/ACIP Tech 3326, 3347 and 3368 compliant. The ToolBox HTML5 web-GUI and optional Cloud Codec Controller software provide real-time monitoring and remote management of connections.
