Tascam CD-400UDAB

Media Player with Tuner and Bluetooth Receiver

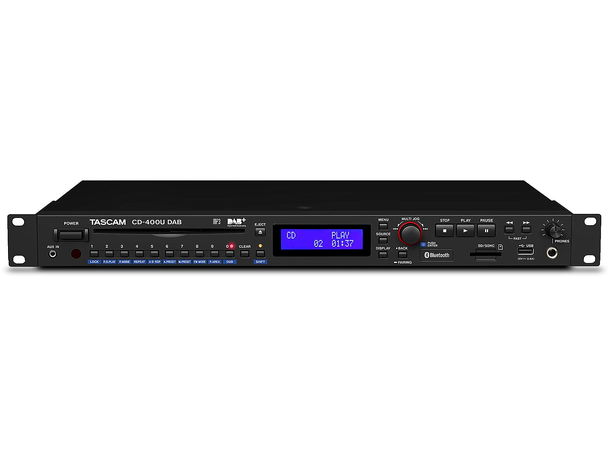

The CD-400UDAB is a compact-sized, rack-mountable and remote-controllable media player that can play tracks from CDs, USB memory devices, SD cards and Bluetooth devices. It also includes an FM/DAB+ tuner with 20 presets to play music from radio stations and a front-panel mini-jack input to connect devices such as portable music players. The tuner has its own output enabling the user to supply two rooms with different music signals, for example.

Remote control is possible by the included wireless RC-CD400 and by serial control via the built-in RS-232C port. This all-in-one CD player is suitable for a wide range of applications, from background music in touring, restaurants or small stores to use in public facilities.

Features at a glance

• Ultra-compact, rack-mountable media player with DAB+/FM tuner and Bluetooth receiver
• Multiple playback sources:
• Audio CD playback
• MP3 and WMA file playback from CD
• Audio file playback from SD and USB memory (MP3, AAC, WAV, WMA)
• DAB+/FM radio playback (can be output from the main or separate output connectors)
• Playback via Bluetooth connection with a smartphone or computer
• Playback from other audio sources via AUX IN connector
• CD standards supported: CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)
• Slot-loading CD drive mechanism
• Numeric keys for direct track selection
• Playback modes include Continuous, Single, Random
• Repeat playback (All, Single, A–B)
• Incremental play (skip to each next track by pressing the PLAY button; available for CD, USB, SD)
• Resume function (start playback from the track where the unit was last stopped)
• Folder playback with SD and USB memory
• Dubbing from CD or tuner to SD or USB memory (MP3 format)
• Time display (track elapsed / track remain / total elapsed / total remain)
• Power-on play (timer function)
• Lock function to avoid accidental operation
• Anti-shock memory
• XLR balanced analogue output (main)
• RCA unbalanced analogue output (main)
• RCA unbalanced analogue output (tuner)
• Remote control via RS-232C serial connector (D-sub 9-pin)
• Optional Ethernet interface card (IF-E100) available for external control over a network (Telnet protocol)
• Headphones output with dedicated volume control
• Backlit LC display
• Wireless remote control included
• Included accessory: Removable mains power cable, RC-CD400 wireless remote control, rack-mounting screw kit, FM antenna, owner’s manual with warranty

Specifications:

General

Supported media


• USB memory - 512 MB – 64 GB
• SD card - 512 MB – 2 GB
• SDHC card-  4–32 GB
• CD - CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)

• Supported file systems - FAT16, FAT32


Supported file formats

• CD-DA -44.1 kHz, 16 bit
• MP3 - 44.1 / 48 kHz, 32–320 kbit/s and VBR (MPEG1/2 Audio Layer 3)
• WAV (USB/SD only) -44.1/48 kHz, 16 bit
• WMA - 44.1/48 kHz, 32–320 kbit/s and VBR (WMA v9 standard, DRM not supported)
• AAC (USB/SD only) - 44.1/48 kHz, 8–320 kbit/s and VBR (MPEG4 AAC-LC audio stream)
• Number of audio channels - 2 channels (stereo), 1 channel (mono)
• Recording file format - MP3 (44.1 kHz, 96/128/192/320 kbit/s)


Bluetooth receiver

• Bluetooth version - v4.2
• Output class - Class 2
• Supported profiles - A2DP, AVRCP
• Supported A2DP codecs - SBC, AAC, aptX
• Supported A2DP content protection - SCMS-T


Tuner

• Frequency range - FM: 87.5–108 MHz DAB: Band III, 174–240 MHz
• Antenna connector F-type (female), 50 O, unbalanced


Analogue audio inputs and outputs

• AUX analogue audio input (unbalanced) - 3.5-mm TRS mini-jack
• Nominal input level –20 dBV (0.1 Vrms)
• Maximum input level –4 dBV (0.63 Vrms)
• Input impedance  =10 kO
• Main analogue audio outputs (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)
• Nominal output level +4 dBu (1.23 Vrms, Output Attenuation: 0 dB)
• Maximum output level +20 dBu (7.75 Vrms, Output Attenuation: 0 dB)
• Output impedance 100 O
• Main analogue audio outputs (unbalanced) RCA
• Nominal output level –10 dBV (0.316 Vrms, Output Attenuation: 0 dB)
• Maximum output level +6 dBV (2.0 Vrms, Output Attenuation: 0 dB)
• Output impedance 200 O
• Tuner analogue audio outputs (unbalanced) RCA
• Nominal output level –10 dBV (0.316 Vrms, Output Attenuation: 0 dB)
• Maximum output level +6 dBV (2.0 Vrms, Output Attenuation: 0 dB)
• Output impedance 200 O
• Headphones output 6.3 mm stereo jack
• Maximum output power =20 mW + 20 mW (THD+N =0.1 %, 32 O load)


Control I/O

• S-232C - D-sub 9 pin


Audio performance

• Frequency response 20 Hz – 20 kHz, ±1 dB (Fs: 44.1 kHz, 48 kHz, JEITA)
• Total harmonic distortion =0.005 % (JEITA)
• S/N ratio =95 dB (JEITA)
• Dynamic range =90 dB (JEITA)
• Channel crosstalk =90 dB (JEITA)


Power supply and other specifications

• Mains power - AC 100–240 V, 50/60 Hz
• Power consumption - 20 W
• Overall dimensions (W × H × D) - 483 mm × 47 mm × 296 mm
• Weight 3.3 kg
• Operating temperature range 5–35 °C


Included accessories

• Removable mains power cord, wireless remote control (RC-CD400), rack-mounting screw kit, FM antenna, owner’s manual/warranty
• Optional accessory
• IF-E100 Ethernet option card, allows the unit to be controlled over a network (Telnet protocol)
