BD-MP1

Professional Blu-Ray Player for Touring and Installation

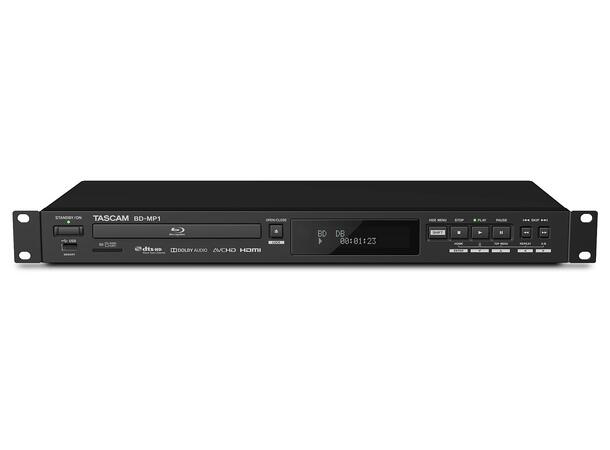

The BD-MP1 is a robust, single-rackspace multi-media video player for professional applications like permanent installation in the contractor market and touring. Building on the success of the Tascam BD-01U, this high-definition playback device can be controlled via LAN, RS-232C and a wireless remote control and is therefore an ideal component of integrated media systems. Nevertheless, all menu operation can also be controlled with keys on the front panel. Apart from Blu-ray discs, DVD and CD media, the BD-MP1 can play several formats of audio files and still images stored on SD cards or USB flash media.

The BD-MP1 offers eight audio outputs for 7.1 surround sound, a pair of balanced XLR and RCA unbalanced stereo outputs, a coaxial digital audio output for SPDIF, Dolby and DTS signals and an HDMI audio/video output. The analogue and digital output levels can be attenuated up to 40 dB. Other professional features include system control over HDMI (HDMI CEC), NTSC/PAL conversion, defeatable on-screen information for the connected display, a power-on play function, chapter/title/A–B repeat, instant replay and resume after power-on.

Tascam channels the years of experience gained with the DV-D01U and BD-01U predecessors to create a reliable video player for commercial AV, education, house of worship, boardroom and other high-stress installs or live touring.

Media

• Blu-ray - BD25, BD50, BD-ROM, BD-R, BD-RE
• Disc formats - BDMV, BDAV
• DVD - DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
• Disc formats- DVD-Video, DVD-VR, AVCHD
• CD - CD-DA, CD-R, CD-RW
• SD - SD card with up to 32 GB total capacity
• Supported file systems - FAT16, FAT32, exFAT, NTFS
• USB - USB flash drive (mass storage class) with up to 2 TB total capacity
• Supported file systems - FAT16, FAT32, NTFS


Supported file formats

• Video - 3GP, ASF, AVI, DAT, M2TS, MKV, MOV, MP4, MPG, OGM, RMVB, TP, TS, WMV
• Audio - AAC, APE, FLAC, MP3, WAV, WMA
• Still image - JPEG, GIF, PNG


Audio resolution

• BD/DVD/USB/SD - Sampling frequency: 44.1/48/64/88.2/96/176.4/192 kHz Bit width: 16/24 bit
• CD - Sampling frequency: 44.1/48 kHz Bit width: 16/24 bit
• MP3/WMA -Sampling frequency: 32/44.1/48 kHz Bit width: 16/24 bit MP3 bit rate: 112–320 kbit/s WMA bit rate: 48–192 kbit/s


Video

• Resolutions - Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080p
• Aspect ratios - 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
• Colour systems - NTSC, PAL, Multi (if supported by TV)
• HDMI colour space - RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2)


Analogue audio outputs

• Balanced - XLR-3-32 (1: GND, 2: HOT, 3: COLD)
•   Nominal output level +4 dBu (1.23 Vrms)
•   Maximum output level +20 dBu (7.75 Vrms)
•   Output impedance 200 O
• Unbalanced - RCA pin jacks
•   Nominal output level –10 dBV (0.316 Vrms)
•   Maximum output level +6 dBV (2.0 Vrms)
•   Output impedance 200 O
• 7.1 - 8 × RCA pin jacks
•   Nominal output level –10 dBV (0.316 Vrms)
•   Maximum output level +6 dBV (2.0 Vrms)
•   Output impedance 200 O


Audio performance

• Frequency response 20 Hz – 20 kHz, ±0.5 dB
• Signal-to-noise ratio - > 96 dB (JEITA)
• Total harmonic distortion - < 0.03 % (1 kHZ, JEITA)
• Dynamic range - > 96 dB (JEITA)
• Channel separation - > 89 dB

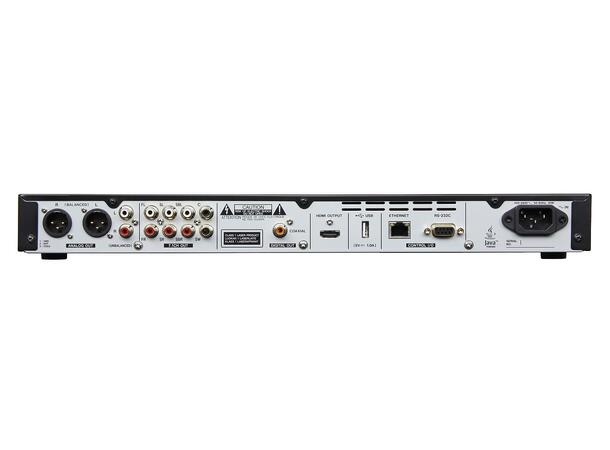

Digital outputs

• HDMI output - 19-pin HDMI, Type A
• Coaxial audio output - RCA pin jack
•   Format - IEC 60958-3 (SPDIF)
•   Output impedance 75 O


Other inputs and outputs

• RS-232C - D-sub 9-pin
•   Mode - Full duplex
•   Baud rate - 9600, 38400 bits/s (selectable)
• Ethernet - RJ45
•   Supported standards - 10BASE-T, 100BASE-TX
• USB - USB A-type (1 × front, 1 × rear)
•   Protocol - USB 2.0 compliant
•   Rated supply voltage - DC 5 V, 1 A


Power supply and other specifications

• Power connector - IEC receptacl
• Power requirements - AC 100–240 V, 50/60 Hz
• Power consumption - 30 W (typical) < 0.5 W (standby)
• Dimensions (W × H × D) - 483 mm × 44 mm × 281 mm
• Weight - 3 kg
• Permissible operating temperature - 5–35 °C
• Permissible operating humidity - 25–85 %, no condensation

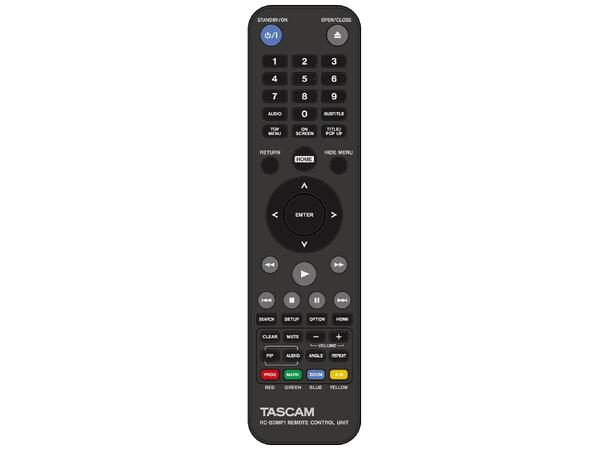

• Included accessories - IR remote control (RC-BDMP1), AC power cable, rack-mounting kit (4 screws, 4 washers), Owner’s manual
