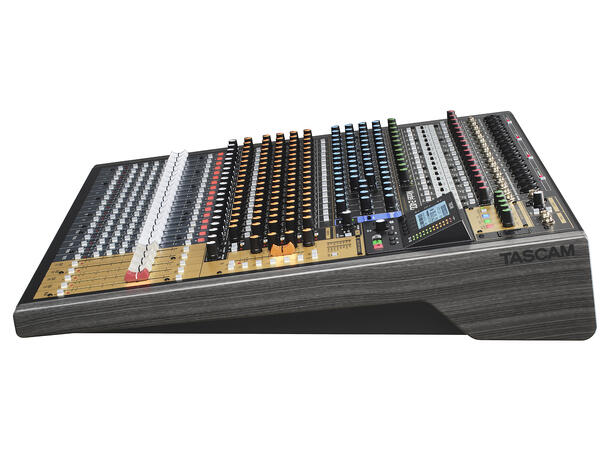

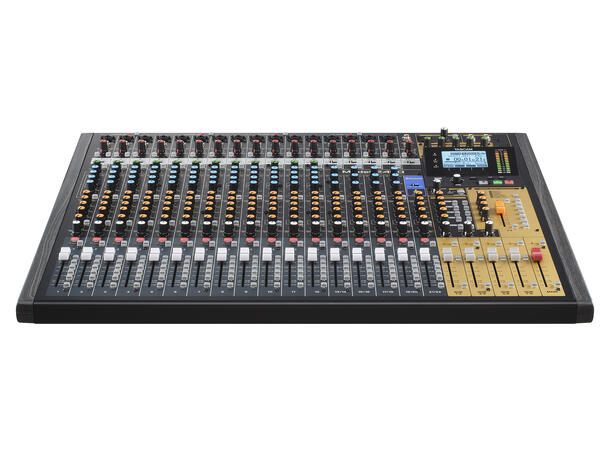

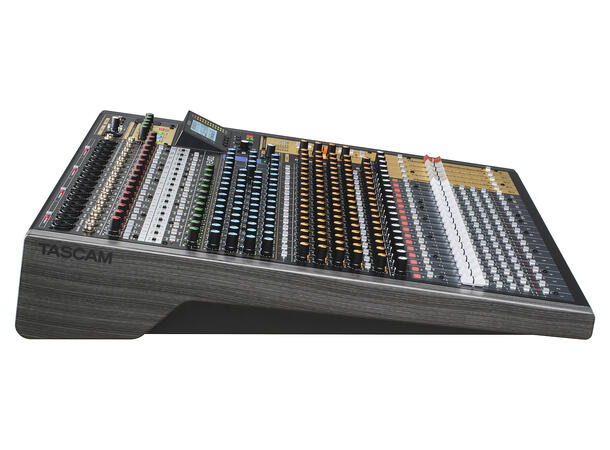

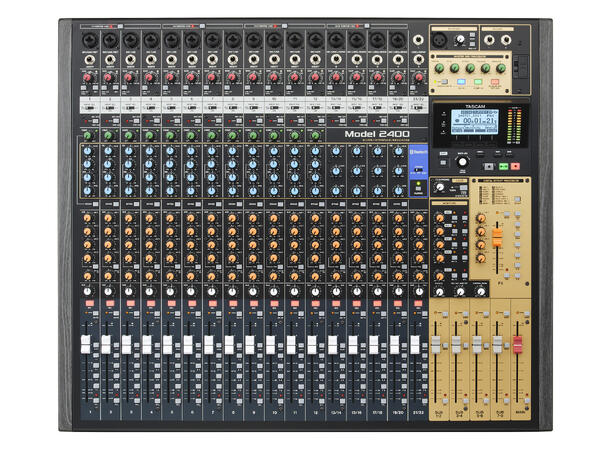

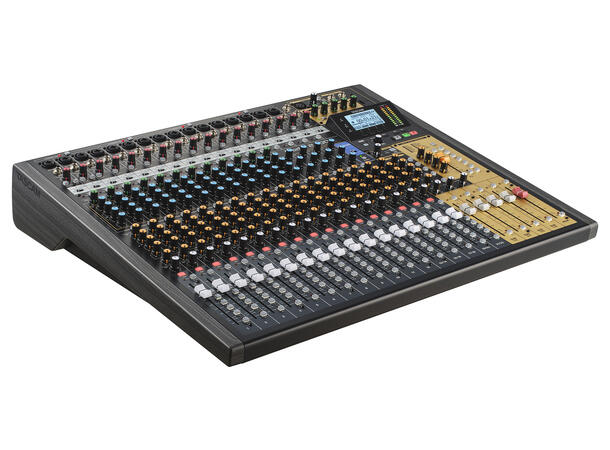

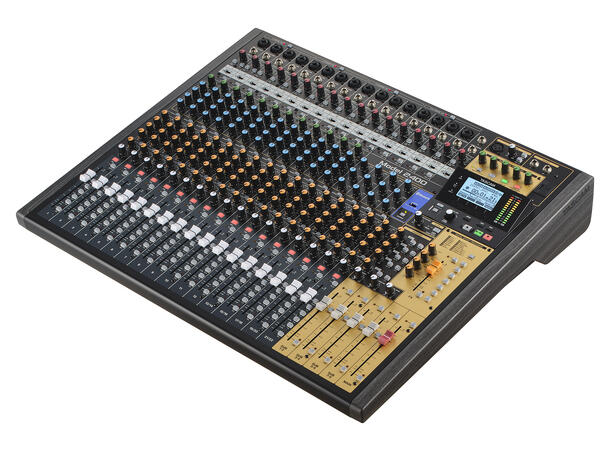

Tascam Model 2400
Analogue Mixer. Live Recorder. DAW Interface.
The 24-Track Flagship Recording Console
22 channels, 24 tracks, one solution – from performance to recording, Model 2400 redefines what you can do with a studio recording and live mixing console. With more Aux sends, four stereo subgroups, MIDI/MTC and many more advanced features, the Model 2400 is the new flagship of the Tascam Model series.
Streamline Your Mix Process with Advanced Onboard Processing
The versatility of the Model 2400 doesn’t affect its mixing capabilities in the slightest. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you’ll have the pro-level mix control you need in any scenario.
Taking your project from tracking to a final master on the Model 2400 couldn’t be simpler.
22 Channels and 24 Tracks, One Solution
With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.
Insert Professional Processors and Effects
Insert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.
Ample Aux and Sub Outputs
With 5 Aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes.
In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.
Professional Recording Capabilities
Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 tracks (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if you’re a DAW-less producer.
Features
- Analogue mixing console with 22 inputs (22 line inputs, 16 microphone inputs)
- Built-in audio recorder for 24-track recording and playback (12 mono input channels, 5 stereo input channels plus stereo mix)
- USB audio interface with 24 inputs and 22 outputs
- 12 XLR mic preamps utilising Tascam Ultra HDDA technology (channels 1–12)
- 5 Aux sends (4 Aux plus internal FX), 4 stereo sub groups, Main L/R
- MIDI in/out with MIDI sync and audio click output with tempo control
- DAW transport and record ready control via HUI/MCU
- Dedicated settings panel application with meter bridge
- Sends with selectable pre/post EQ routing for recording
- Channel compressor and EQ can be bypassed for MTR and USB return
- Phantom power (+48V) selectable in groups of 4 channels
- Inserts (Send/Return) on input channels 1–12
- 100-Hz low-cut filter (channels 1–12 and 13/14 to 21/22)
- 1-knob compressor (channels 1–12)
- 3-band EQ (channels 1–12: sweepable mid-range frequency)
- 100-mm faders (channels 1–22, stereo Sub 1–4 and Main L/R)
- Digital 4-band EQ and compressor on Main L/R
- Inserts (Send/Return) on Main L/R
- PFL/AFL switches with LED indication on all input/output channels
- Main L/R outputs via XLR balanced connectors; Sub 1–8, Aux 1–5 and Control Room outputs via 6.3-mm TRS connectors
- 2 headphones outputs
- Talkback XLR microphone input
- Tascam effects processor with 16 studio-quality effects (reverb, delay, chorus etc.) with fader control
- Bluetooth input (supports AAC and SBC codecs)
Supported Operating Systems
Windows
- Windows 11 (version 23H2) Windows 11 (version 22H2) Windows 11 (version 22H1) Windows 10 (version 22H2)
Mac
- macOS Sonoma (14.0) macOS Ventura (13.0)
iOS
- iOS 17 / iPadOS 17 iOS 16 / iPadOS 16
Specifications
Recorder
Recording media
- SD (Class 10 or higher)
- SDHC (Class 10 or higher)
- SDXC (up to 512 GBytes, Class 10 or higher)
File system
- SD: FAT16
- SDHC: FAT32
- SDXC: exFAT
Recording file formats
- WAV (BWF), 44.1/48 kHz, 16/24 bit (maximum file size: 2 GBytes)
Playback file formats
- WAV, BWF (44.1/48 kHz, 16/24 bit)
Recordable tracks
- 24 (22 tracks + stereo mix)
Audio inputs and outputs
Microphone inputs (MIC, 1–12, 13,15,17,19)
- XLR-3-31 (combo jack), balanced
(1: GND, 2: HOT, 3: COLD)
Maximum input level
Nominal input level
Minimum input level
Gain adjustable range
Input impedance
- 1.9 kO (1–12), 2.4 kO (13, 15, 17, 19)
Line/Instrument inputs (LINE/INST, 1–2)
- 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level
- LINE: +22 dBu
- INST: 19.8 dBV
Nominal input level
- LINE: +4 dBu
- INST: 1.8 dBV
Gain adjustment range
Input impedance
Line inputs (LINE, 3–12)
- 6.3-mm TRS phone jack, balanced
- (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level
Nominal input level
Gain adjustable range
Input impedance
Stereo line inputs (LINE L/MONO, R, 13/14 to 21/22)
- 6.3-mm TRS phone jack, balanced
- (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level
Nominal input level
Gain adjustment range
Input impedance
- =11 kO (mono), =22 kO (stereo)
Inserts (1–12)
- 6.3-mm TRS phone jackv(Tip: Send, Ring: Return, Sleeve: GND)
Maximum input level
Nominal input level
Input impedance
Maximum output level
Nominal output level
Output impedance
Talkback input
- XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD)
Maximum input level
Minimum input level
Gain adjustable range
Input impedance

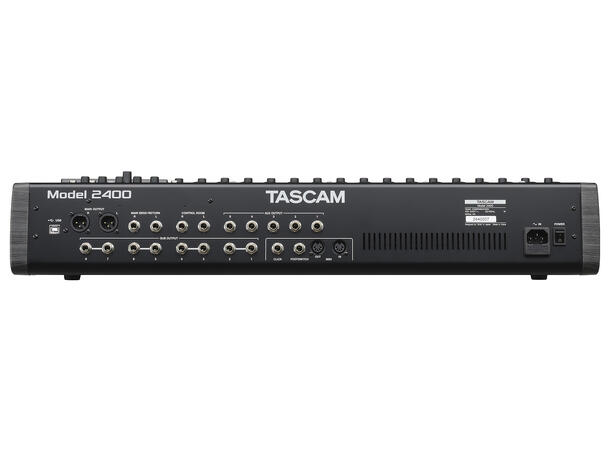

Main output (MAIN OUTPUT L/R)
- XLR-3-32, balanced (1: GND, 2: HOT, 3:COLD)
Maximum output level
Nominal output level
Output impedance
Main inserts (MAIN SEND/RETURN L/R)
- 6.3-mm TRS phone jack (Tip: Send, Ring: Return, Sleeve: GND)
Maximum input level
Nominal input level
Input impedance
Maximum output level
Nominal output level
Output impedance
Control Room outputs (CONTROL ROOM L/R)
- 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level
Nominal output level
Output impedance
Aux outputs (AUX OUTPUT 1–5)
- 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level
Nominal output level
Output impedance
Sub group outputs (SUB OUTPUT 1–2, 3–4, 5–6, 7–8)
- 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level
Nominal output level
Output impedance
Phones output 1/2
- 2 × 6.3-mm stereo phone jack
Maximum output power
Control inputs/outputs
USB port
Protocol
- USB 2.0 High Speed (480 Mbit/s)
Click output
- 6.3-mm standard TS jack (Tip: HOT, Sleeve: GND)

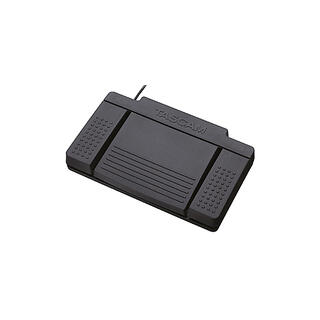

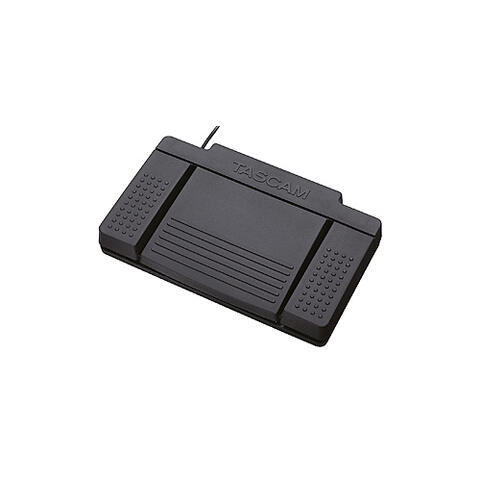

Footswitch connector
- 6.3-mm TRS phone jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, unlatching switches required)
MIDI input and output
Format
USB audio
Sampling rate
Bit depth
Maximum number of audio channels
Bluetooth
Version
Output class
- 2 (approximate transmission distance: 10 m)
Supported profile
Supported A2DP codecs
A2DP content protection
Audio performance
S/N ratio
- (22 kHz LPF, A-weighted)
- Main mix off: –100 dB
- Main mix 0 dB: –80 dB
Equivalent input noise (EIN)
- –128 dBu
- (Rs=15 O, MIC IN to INSERT SEND, GAIN knobs at max., A-weighted)
Total harmonic distortion (THD+N)
- (GAIN knobs at min., 1 kHz)
- 0,01 % (mic input to main output)
- 0.004 % (mic input to main output, +2 dBu, BYPASS switches on)
Frequency response
- (all gain knobs at min., 1 kHz)
- 20 Hz to 30 kHz, +0.5/–1 dB (analogue)
- 20 Hz to 20 kHz, +0.5/–1 dB (digital)
Crosstalk
- (PAN knobs fully left or right, 1 kHz)
- Between channels: –80 dB
- Between input and output: –80 dB
Maximum gain
- (all GAIN knobs at max., PAN knobs fully left or right, BYPASS on, MASTER BUS IN off)
- 74 dB (MIC to MAIN OUT)
- 54 dB (MIC to INSERT OUT)
- 74 dB (MIC to SUB OUT)
- 75 dB (MIC to AUX OUT)
- 24 dB (USB/SD to MAIN OUT)
Power supply and other specifications
Power
Power consumption
Dimensions (W × D × H)
- 681 mm × 568 mm × 133 mm (overall)
- 639 mm × 568 mm × 133 mm (without side panels)
Weight
Guaranteed operating temperature range
Guaranteed operating humidity range
- 5–85 % (without condensation)
Included items
- AC power cord, Startup Guide, Registration Guide
