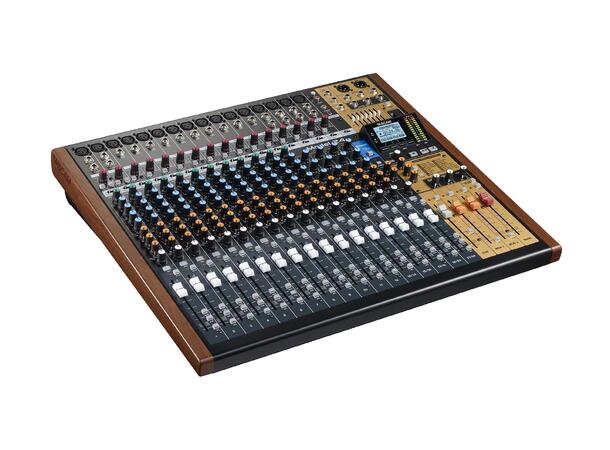

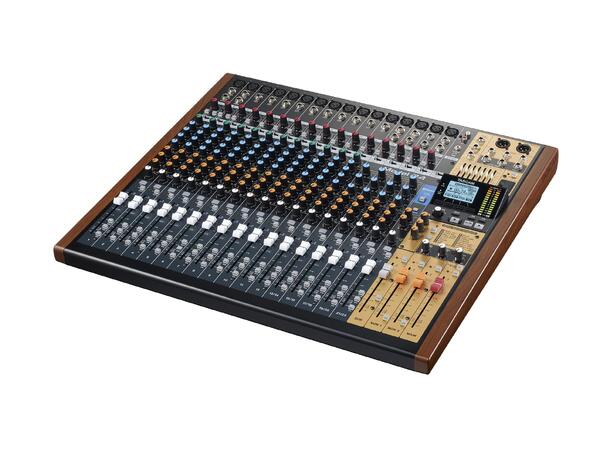

An all-in-one analogue mixer, multi-track digital recorder and audio interface
The Tascam Model 24 all-in-one mixer brings the flagship Model 24’s powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a fully featured compact mixer that combines the warmth of analogue with a digital workflow. The Model 24 is the perfect mixing solution for small-format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.
The Simple, Intuitive Design

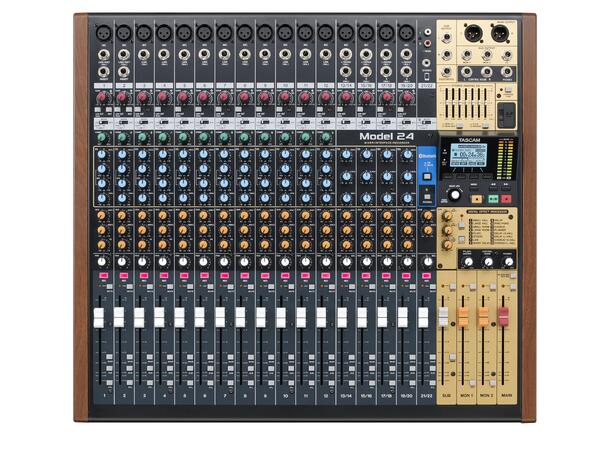

One glance is all you need - Model 24 was developed to be simple and intuitive for anyone to use. The 100mm physical faders allow for precision when tweaking volume, the accessible 7- band graphic stereo EQ to master the mix, the familiar EQ/Aux knobs, and the input/output jacks are all on the surface for quick and easy access.
TASCAM’s revolutionary recording technology
Model 24 allows the users to directly record to an SD card, 24 tracks simultaneously in 24bit/48kHz, and it is capable of punching in/out 8 tracks at the same time. With TASCAM’s revolutionary recording technology, the console can also directly playback 22 tracks simultaneously from an SD card. TASCAM’s 16 high-grade mic preamps will guarantee a capture of the most pristine sound possible.
Flexible Connectivity
Model 24 is flexibly equipped with 22 analog inputs consisting of 20 balanced inputs (12 mono and 4 stereo), 1 unbalanced stereo input. Also, Model 24 lets you connect to your favorite DAW via USB. Your smartphone can be connected with the Bluetooth™ feature to stream rehearsal audio for individual practice or to get the audience going with exciting songs before you strike the first chord on stage..
Aktuelt ekstrautstyr:

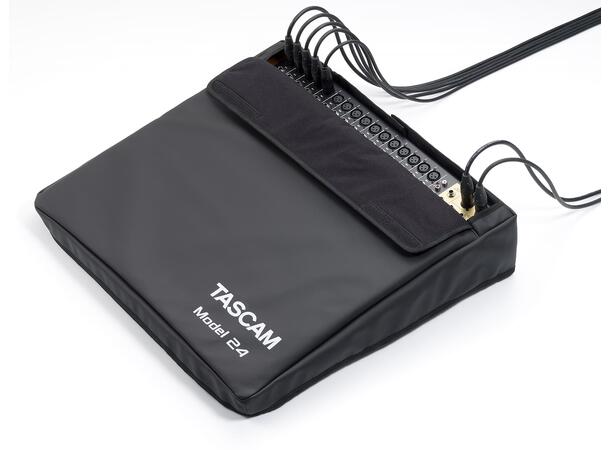

AK-DC24, Dust Cover for Model 24
Specifications
| Recorder |
|---|
| Recording media | SD (512 MB – 2 GB)
SDHC (4–32 GB)
SDXC (64–512 GB)
Class 10 or higher required |
| File system | FAT16 (SD), FAT32 (SDHC), exFAT (SDXC) |
| Recording file format | WAV |
| Playback format | WAV |
| Sampling frequency | 44.1 kHz, 48 kHz |
| Bit depth | 16 bit, 24 bit |
| Recordable channels | 24 channels max. (22 channels + stereo mix) |
| Audio inputs and outputs |
|---|
| Microphone inputs (CH 1–12, 13/14–19/20) | XLR-3-31, balanced
(1: GND, 2: HOT, 3: COLD) |
| Maximum input level | +10 dBu |
| Nominal input level | –8 dBu |
| Minimum input level | –58 dBu |
| Gain adjustable range | 0–50 dB |
| Input impedance | 1.8 kO |
| Phantom Power | DC 48 V |
| LINE inputs (CH 1–20) | 6.3-mm TRS phone jack, balanced |
| Maximum input level | +22 dBu |
| Nominal input level | +4 dBu |
| Gain adjustable range | –10 dB to +40 dB (CH 1–12)
–20 dB to +30 dB (CH 13/14 to 19/20) |
| Input impedance | 22 kO |
| INSERT (CH 1–2) | 6.3-mm TRS phone jack
(Tip: Send, Ring: Return, Sleeve: GND) |
| Nominal input level | 0 dBu |
| Maximum input level | +18 dBu |
| Input impedance | 10 kO |
| Nominal output level | 0 dBu |
| Maximum output level | +18 dBu |
| Output impedance | 100 O |
| STEREO inputs (CH 21–22) | RCA pin jack, unbalanced
3.5-mm stereo mini jack, unbalanced |
| Maximum input level | +8 dBV |
| Nominal input level | –10 dBV |
| Input impedance | 10 kO |
| MAIN output | XLR-3-32, balanced
(1: GND, 2: HOT, 3:COLD) |
| Maximum output level | +4 dBu |
| Nominal output level | +22 dBu |
| Output impedance | 100 O |
| SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT | 6.3-mm TRS, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND) |
| Nominal output level | –2 dBu |
| Maximum output level | +16 dBu |
| Output impedance | 100 O |
| PHONES OUT | 6.3-mm stereo phone jack |
| Maximum output power | 80 mW + 80 mW (at 32 O) |
| Working impedance | 16–600 O |
| Other inputs and outputs |
|---|
| Footswitch connector | 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended) |
| USB connector | USB B-type, 4-pin |
| Channel EQ |
|---|
| Low cut | 100 Hz, –18 dB/Oct. |
| High (shelving) | 12 kHz, ±15 dB |
| Mid (peaking) | variable 100 Hz to 8 kHz, ±15 dB (Mono)
fixed 600 Hz, ±15 dB (Stereo)
Q = 0.55 |
| Low (shelving) | 80 Hz, ±15 dB |
| Graphic EQ | 7-Band |
| Frequencies | 125/250/500/1k/2k/4k/8k (Hz) |
| Gain | ±15 dB |
| Audio performance |
|---|
| Residual output noise | –100 dBu
(MAIN OUT, MAIN fader at min.) |
| Equivalent input noise (EIN) | –128 dBu
(Mono input channel at 150 O, GAIN at max.) |
| Total harmonic distortion (THD+N) | <0.01 % (GAIN at min., +10 dBu)
<0.004 % (GAIN at min., +4 dBu) (MIC IN to MAIN OUT) |
| Frequency response | Analogue: 20 Hz to 30 kHz, +0.5/-1.0 dB
Digital: 20 Hz to 20 kHz, +0.5/-1.0 dB |
| Channel crosstalk | –80 dB
(1 kHz, PAN fully counter-clockwise / fully clockwise) |
| Maximum gain | 74 dB (MIC to MAIN OUT)
50 dB (MIC to INSERT OUT)
74 dB (MIC to SUB OUT)
79 dB (MIC to CR OUT)
75 dB (MIC to MONITOR OUT)
75 dB (MIC to FX OUT)
24 dB (USB/SD to MAIN OUT)
(EQ flat, PAN fully counter-clockwise / fully clockwise) |
| Computer hardware requirements |
|---|
| Windows | Windows-compatible computer with a USB 2.0 port |
| CPU type/speed | Dual core, 2 GHz or faster |
| Memory | 2 GB or more |
| Drivers | USB Audio Class 2.0, ASIO 2.0, WDM (MME) |
| Screen resolution | 1280 px × 800 px or more |
| Macintosh | Apple Mac computer with a USB 2.0 port (operation confirmed with Intel and Apple Silicon M1 or M2) |
| CPU type/speed | Dual core, 2 GHz or faster |
| Memory | 2 GB or more |
| Driver | Core Audio |
| Screen resolution | 1280 px × 800 px or more |
| Power supply and other specifications |
|---|
| Power | AC 100–240 V, 50/60 Hz |
| Power consumption | 52 W |
| Dimensions (W × D × H) | 580 mm × 513 mm × 117 mm (overall) |
| Weight | 10.2 kg |
| Permissible operating temperature range | 5–35 °C |
| Included items | AC power cord, Owner’s manual incl. warranty, TASCAM ID registration guide |
