ADI-2 FS er en to kanals AD og DA konverter med referanse lydkvalitet. Den er kompakt og er ultra fleksibel med støtte for de viktige formatene: S/PDIF, ADAT (m/SteadyClock) og AES/EBU. Analog  opp til 120dB i dynamikkområde. ADI-2 har dual utganger på XLR, Balansert Jack/XLR kombi inngang og en hodetelefonutgang med volumkontroll.



2 x Analog In / 2 x Analog Out
1 x ADAT or SPDIF I/O (optical and coaxial, AES/EBU compatible)
Stereo High Power Headphone output
Optional: 19“ Rackmount Kit (RM19-X)
Optional: 19“ Rackmount (Unirack)





The ADI-2 FS is a compact and extremely ?exible 2-Channel Hi-End AD/DA-converter. The small 9.5" unit o?ers ?rst-class AD/DA-conversion from/to SPDIF, AES and ADAT, at up to 192 kHz. Its ability to use SPDIF, AES and ADAT format provides outstanding compatibility. Whatever it is - simply get connected!



Balanced analog inputs and outputs, monitoring via headphone output, SteadyClock FS for optimal conversion quality, 3-stage hardware input and output level control and the additional modes D-D and A-A turn the ADI-2 FS into a universal tool and a ?exible problem-solver. Its pro-class sound quali?es it also as extension for other premium converters.

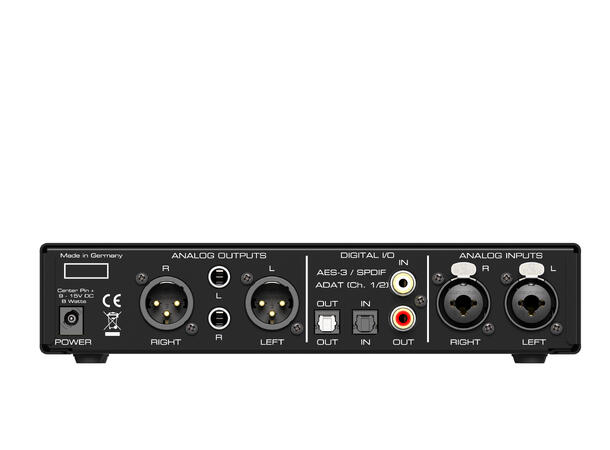

The ADI-2 FS is equipped with two servo-balanced analog line inputs via XLR/phones combo jacks, simultaneously usable balanced XLR and unbalanced phone jacks, an adjustable High Power headphone output on the front, an ADAT compatible optical SPDIF I/O, and a coaxial SPDIF I/O (RCA, AES/EBU compatible). These extensive connectivity options provide most ?exible and uncompromised signal transmission.



The analog inputs use the advanced circuit design of the highly acclaimed ADI-2 Pro, thus o?ering outstandingly low noise and distortion as well as an extended frequency response. Three di?erent settings for input and output levels provide perfect compatibility in the analog domain. A further highlight is SteadyClock FS, RMEs latest clock technology for maximum jitter suppression and lowest self-jitter. It guarantees superb sound quality completely independent from the quality of the current reference clock. The ADI-2 FS also uses the conversion technology of the ADI-2 Pro: the AK557x family and the AK4490 not only o?er 192 kHz sampling frequency and lowest distortion, but also a dynamic range of 120 dBA.



But the ADI-2 has more to o?er than tremendous sound. It also provides exciting digital connectivity. Its coaxial RCA SPDIF I/O has a switchable Channel Status to make it fully AES/EBU compatible (cable adapter required). The optical TOSLINK I/Os can handle up to 192 kHz and also serve as ADAT I/O, even at 192 kHz. An operation with SPDIF input and ADAT output or vice versa is supported, in both AD/DA and D-D mode.

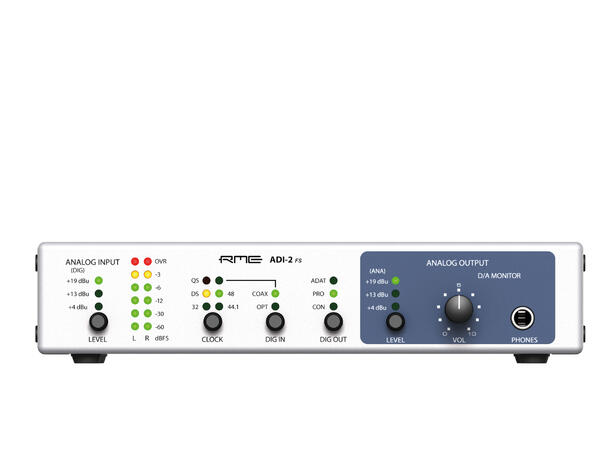

The clear layout and distinct labeling of the front panel with its functional buttons, the informative status display, a 6 LED level meter as well as the tidy back panel make it easy to operate the unit right out of the box.
