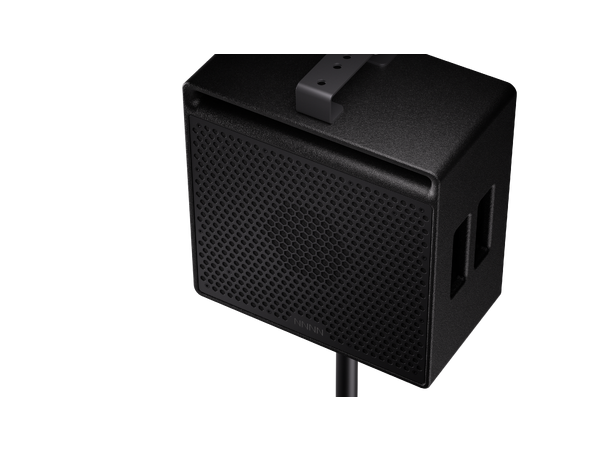

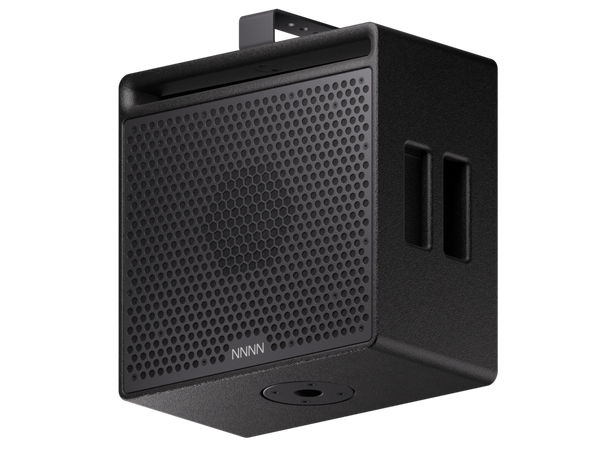

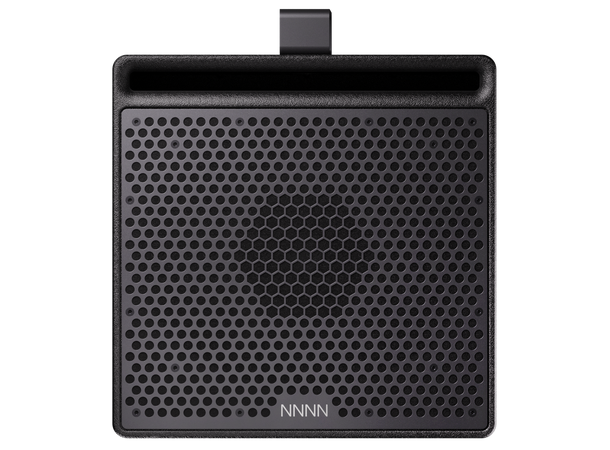

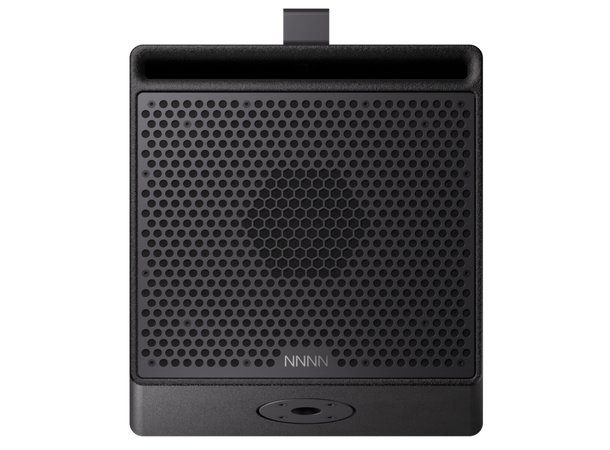

Powered Coaxial Point Source speaker - Made in Norway

The Gage 60 is designed to provide high sound quality, extended dynamic capabilities, and controlled dispersion with a minimum of lobing, in a small form factor.

The Gage 60 has elliptical horns for both woofer and HF drivers, to ensure controlled dispersion from well below the crossover region. A bass port extends the low-frequency cutoff for standalone applications and the horn loading enables extended SPL and reach from 150Hz and up.

The coaxial configuration in Gage 60 reduces HF doppler distortion that is normally caused by the moving woofer diaphragm used as the HF waveguide in a conventional coaxial driver.

Separating the drivers enables a dedicated HF horn, and this reduces doppler distortion both because of the directivity of the HF horn and the increased distance from the HF horn mouth to the woofer diaphragm.

The Gage 60 provides very high SPL performance in a small and light enclosure. It delivers a max SPL average >125 dB free field at 1m and peak SPL >140 dB playing music.

It’s compact dimensions and mere 15 kg (33 lbs) makes the Gage 60 easy to handle for portable applications, and with a small visual footprint in installs.

The Gage 60 is available in both active and passive versions, enabling the same performance to both portable and installation applications. The internal or external processing includes electronic crossover management, phase and frequency response correction filters, and driver protection circuitry.

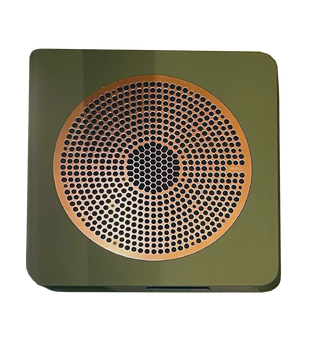

*Color variations on request

• Active 2-way coaxial design
• High SPL in compact form factor
• Ported low frequency extension
• Active and passive versions


Specifications

Frequency response extended (-6+3dB) -  60-20 000 Hz

Frequency response horn assisted (+3db) -  150-20 000Hz
Horizontal dispersion - 100degrees

Vertical dispersion - 60 degrees
Max SPL average -  >125 dB

Peak SPL music - >140dB
Nominal impedance 8'' Woofer - 8Ohm

Nominal impedance 1''HF - 8Ohm

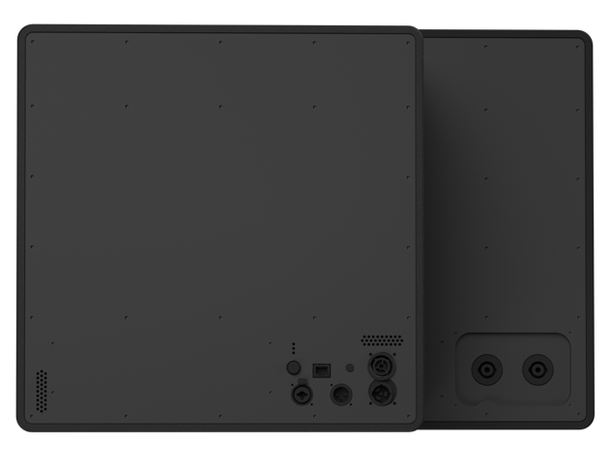

Connections active - PowerCon True1 for power. XLR input, XLR output, Ethernet

Height - 390mm

Width - 390mm

Depth - 233mm

Weight - 15kg
