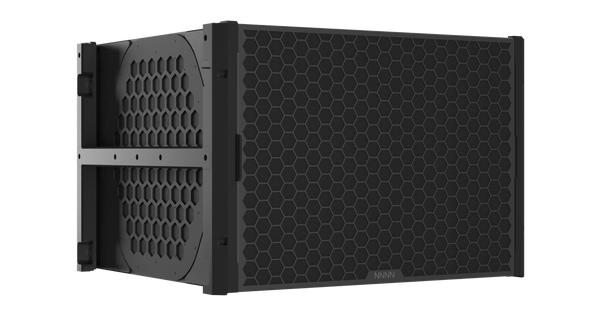

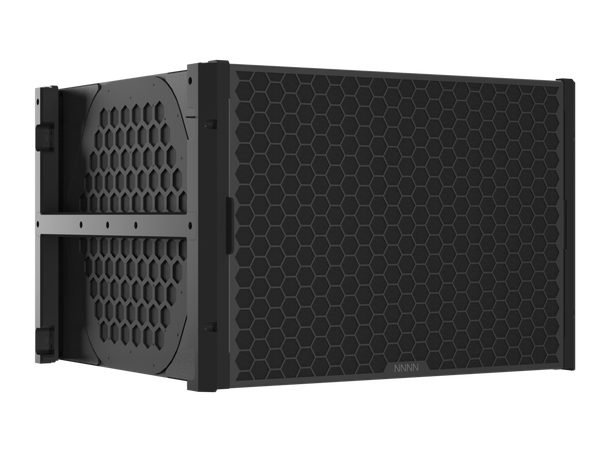

Trada 30 is a horn loaded subwoofer with sensor controlled performance in a compact and mobile form factor.

Compact performance

Trada 30 is designed to provide very high output relative to size, while retaining low frequency response, low distortion and fast impulse response in a compact, mobile form factor.

Horn loading

The horn loading mechanism enables high sensitivity, good impulse response, and an impressively low distortion level. The combination of high quality audio reproduction down to 30Hz, with very high SPL for the size and weight of the cabinet, makes the Trada 30 suitable for a range of applications.

Broad application areas

Features for stacking the subwoofer enable very powerful setups, as the horn principle will increase the efficiency of each unit in the stack as well as increase the frequency response below 30Hz. The pole mount combined with the compact form factor of Trada 30, enables a very high output system with minimal footprint.

Sensor control

IpalMod is the hardware/software platform provided by Powersoft and selected loudspeaker manufacturers to implement Integrated Powered Adaptive Loudspeaker (IPAL) technology, a functional solution to overcome the limitations of traditional transducers. IPAL based amplifier/loudspeaker systems offer much higher SPL capability with respect to traditional speaker systems with the same driver size. The overall efficiency of the amplifier-loudspeaker system is also better than traditional designs.

Horn loading

The horn loading mechanism enables high sensitivity, good impulse response, and an impressively low distortion level. The combination of high quality audio reproduction down to 30Hz, with very high SPL for the size and weight of the cabinet, makes the TRADA 30 suitable for a range of applications.

Specification

Configurations: Self-powered
Frequency response ±3dB: 30 - 80 Hz
Nominal dispersion: Louder in front
Max. cont. SPL (1m, 2Pi): 137 dB
Peak SPL music:>: 150 dB
Dispersion: Array dependent
Nominal impedance: 1 O
Power handling capacity (cont./ peak): 2500 W
Connections: XLR in and out, Ethernet and Powercon
Driver: 1x21"

Height: 590 mm / 23.2 in
Width: 870 mm / 34.3 in
Depth: 787 mm / 31.0 in
Weight: 103,4 kg / 228,0 lb
