Millennia mikrofonforsterker for ditt 500 Serien Rack

Add the unrivaled sound quality of a genuine Millennia preamp in your 500 series rack, with the Millennia HV-35. Perfect for low-gain dynamic microphones such as ribbon mic, the HV-35 delivers up to 75dB of freakishly noise-free gain. A front-panel instrument input also makes the HV-35 a fantastic pre for tracking bass direct, particularly instruments with high-character/low-gain passive pickups. Other onboard functions, such as an 80Hz highpass filter and a 15dB pad add extra versatility to the HV-35, and an impressive sub-3Hz to over 300kHz frequency response ensures that no nuances, however subtle, are lost in translation.

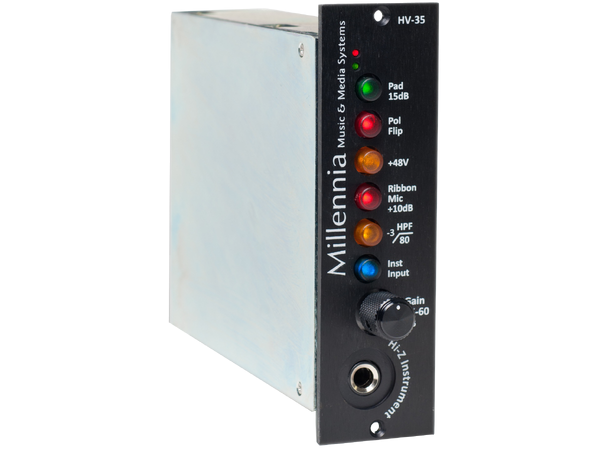

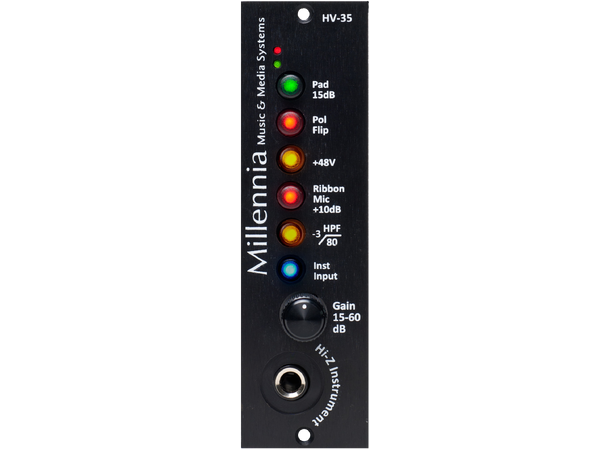

Millennia HV-35 500series Microphone Preamplifier:



• API 500 series compatible format single-channel microphone preamplifier
• Continuously variable gain control (up to +65dB)
• 10dB gain boost setting for DC-coupled ribbon mics (for up to +75dB of gain total)
• Front panel instrument input
• 80Hz highpass filter
• 48V phantom power
• Switchable 15dB pad
• Polarity flip switch
• Minimum Gain: 8.5dB
• Maximum Gain: 75dB
• Frequency Response: +0 / -3dB, sub 3Hz to beyond 300kHz
• Noise: 60 dB Gain, 10Hz-30kHz, Inputs common -133 dB EIN
• Total Harmonic Distortion + Noise (35 dB Gain, 10Hz-20kHz bandwidth, +27dBu Out): < .001%, Typ. < .0005% (< 5 ppm)
• Intermodulation Distortion ((50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out): < .0009%
• Phase Response (35dB Gain, 50Hz-20kHz bandwidth, +27 dBu Out): < 2 degrees deviation
• Common Mode Rejection Ratio (35 dB Gain, 10Hz-20kHz bandwidth, 100 mV C.M.): > 65 dB, Typ > 85 dB
• Slew Rate (35dB Gain, +27dBu Out): > 25V per microsecond
• Maximum Input Level (20Hz-40kHz): +23dBu (no attenuator pads required)
• Maximum Output Level (20Hz-40kHz): +32dBu
• Phantom Input Impedance (1kHz): 6,750 ohms
• Output Impedance: 24.3 ohms (x2)
• Phantom Powering: +48V DC, (+/-2V DC)





Noen kommentarer fra bransjefolk:



Randy Poole - Pro Audio Review
"The HV-35 was consistently in my top two for all tests with the Radial Workhorse chassis. In comparison to transformer-based Class-A designs, it was more open on the top with less compression of transients and a more detailed sense of ambience and space. Compared to some of my favorite tube-based pres, the HV-35’s low end was punchier and thicker. The HV-35’s high end was accurate and pleasing, while in comparison the tube pre’s additive harmonics and softening of transients felt quite flattering on acoustic guitar. Overall, the timbre of the HV-35 was more balanced than all of its tested counterparts, and its placement in the stereo field was more “three-dimensional."



Craig Anderton,  Electronic Musician
"The HV-35 is extremely well-built, sounds great (well actually, it’s more like it has no sound at all), and the DI is well-implemented. It accomplishes its goal of transparency, but also has the depth that’s the hallmark of a well-designed amplifier."



Paul Vnuk, Recording Magazine
"I ran the new HV-35 right alongside my original HV-3D and after matching the input settings I can say, “I hear zero difference in sonic character or quality!” None! I have no idea how they crammed all of the HV-3D’s electronics in there and how they scaled the power to work within the 500-Series voltage restrictions, but somehow they did it."



Jack Vad, award winning producer/engineer for the San Francisco Symphony
"Since 1992 when I was Millennia's first customer, I've had the privilege of lending my ear and thoughts regarding new developments and products."



"The San Francisco Symphony has always owned both Millennia preamps and convertors because they meet our criteria of transparency and resolution, and since I've been asking John and Joel to develop 500 series modules for years, I'm extremely pleased by the release of both the AD-596 and HV-35."



"They both represent everything I expect from Millennia products which, in this case, are now offered in a new form factor utilizing proven designs and providing subsequently greater versatility."



Donal Hodgson,  producer/engineer for Sting and many others
“For me it was a no brainer when I heard that Millennia were releasing a 500 series mic amp.”



“I put 48 channels of HV-3D into Sting’s tour rig and I wanted access to that super clean pure sound in my portable 500 series rack.”
