572 Red Stripe

Pure tube preamp in a 500-series module

In short

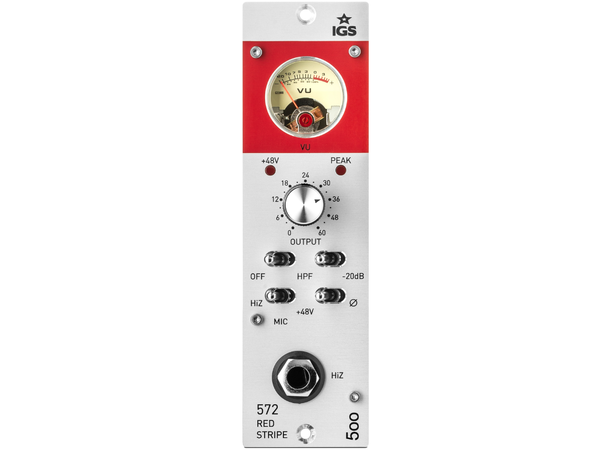

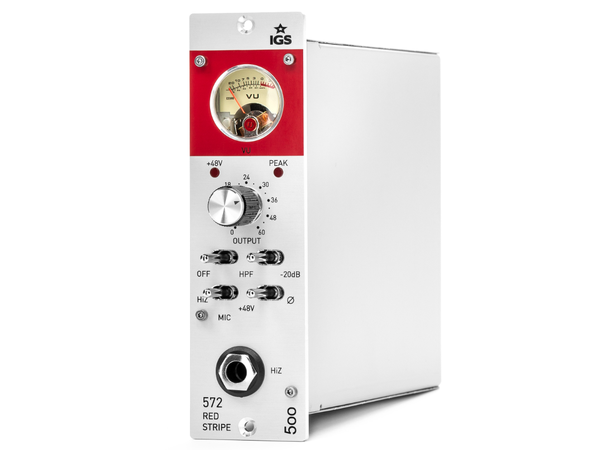

572 Red Stripe is a mic/instrument preamp designed in the 500-standard. The module is transformer balanced on input and output using Sowter and Edcor transformers. All controls on the front panel are stepped switches. Excellent for recording any sources, including microphones, line signals, instruments like guitars, or keyboards (Hi-Z input at the front of the unit).

In detail
This is an excellent preamplifier, that can be used with a variety of sources: line signals, guitar pickups (via Hi-Z input), dynamic, condenser and ribbon microphones. It always provides outstanding results. With one knob gain control (41-stepped) you can push it nicely, but still make sure that you don't overload the next stage of your signal chain. The second stage overloading gives some sweet harmonics vibe. Adds a lot of unique flavour. HiZ input is accessible from the front of unit. Handy!

Getting specific

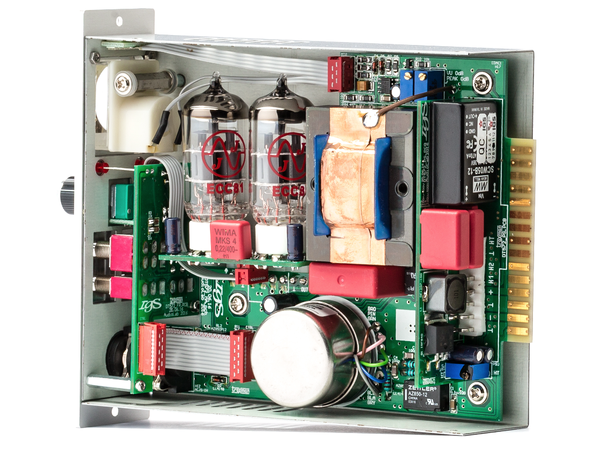

IGS 572 Red Stripe, single channel, pure tube mic preamp in a 500 module, two double-triodes (JJ ECC803S and JJ ECC81), UK made input and American output transformers, -20 dB interstage Pad, polarity control, +48V phantom power, low-cut filter, DI-Input 1/4" TS Jack 1MOhm, max. Input Level: +16 dBu, max. Output Level: +28 dBu, back-lighted analog VU-Meter, +48 and clip LED, Made in Europe.

BASIC FEATURES

• Number of slots - 1
• HPF OFF, 50 Hz (6dB/oct)


INPUT & OUTPUT

• Input Pad -20dB
• Input Impedance (balanced) >600 Ohm, Sowter transformer
• Input Pad -20dB, interstage
• Phantom Power
• Output Impedance (balanced) 600 Ohm, Edcor USA transformer
• Audio transformers Sowter / Edcor


LEVELS

• Operating Level +4dBu
• Max input level +16dBu
• Max output level +28dBu
• Dynamic Range 117dB
• Noise Level -100 dBA
• Max. gain 64dB


BANDWIDTH

• Frequency response 20Hz - 20kHz, - 1 dB
• DISTORTION (@ 20 HZ - 20 KHZ)
• THD+N max 0.5%


POWER

• Voltage Anode: 250VDC
• Voltage +/- 16V DC
• Power consumption 6.5W


PACKING BOX

• Dimensions 78x166x229mm
• Shipping weight 2kg


OTHERS

• Used for Any kind of one channel studio recordings
• Tube set ECC81, ECC81
