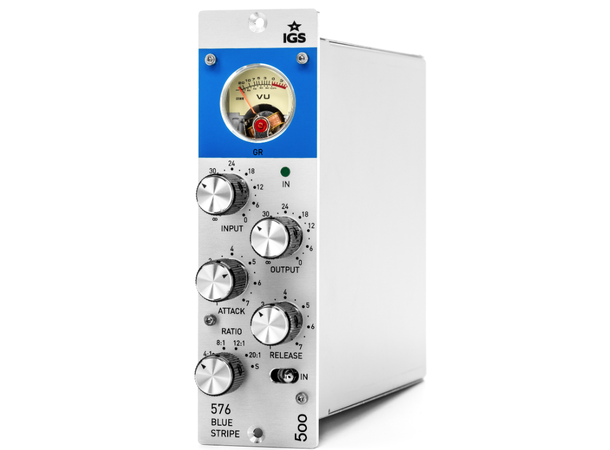

576 Blue Stripe
The 576 Blue Stripe is a revised version of the classic FET compressor.
What it is
The FET-type solution was first used for its application in the legendary UREI 1176 compressor from the 70s. The most important feature inspired by revision A is the input transformer used and pure class A output stage. The compressor is equipped with a relay bypass, 2:1 Ratio and Slam Mode accessible on the front panel.
What it does
The 576 BS’s major selling point is its ultra-fast attack time — 20 µS. The 576 BS Ratio buttons allow four different modes of operation: 2:1 Ratio (soft compression); 4:1 ratio (moderate compression); 8:1 ratio (severe compression); 12:1 ratio (mild limiting); 20:1 ratio (hard limiting); S – SLAM, All Buttons In trick mode.
SPECIFICATIONS:
DEVICE TYPE
BASIC FEATURES
- Stereo Link by jumper in the PSU
INPUT & OUTPUT

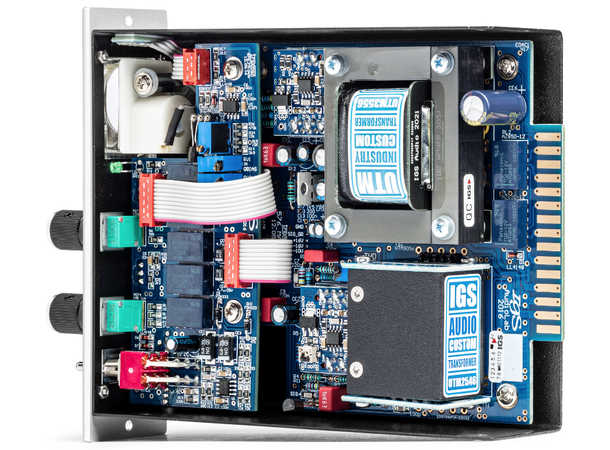

- Input Impedance (balanced) 2.4k, IGS Custom transformer
- Output Impedance (balanced) 600 ohm, IGS Custom transformer
- Audio transformers Yes, IGS Custom
LEVELS
- Operating Level +4 dBu
- Max input level +20 dBu
- Max output level +22 dBu
- Noise Level -99 dBA
- Max. gain 36 dB
- Max Gain Reduction -20dB
TIME CONSTANTS
- Ratio 2:1, 4:1, 8:1, 12:1, 20:1, Slam (All in)
- Attack: 20us - 800us
- Release: 50ms - 1.1s
BANDWIDTH
- Frequency response 8 Hz - 20k Hz, +/- 0.1 dB
- DISTORTION (@ 20 HZ - 20 KHZ)
- THD+N 0.0014%

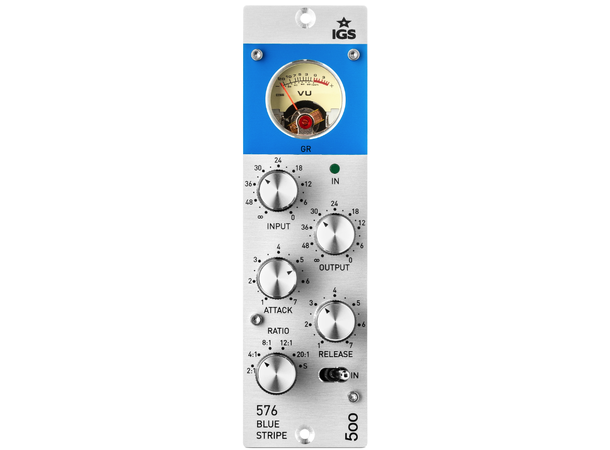

FRONT PANEL
- VU Meters Yes, GR (backlit)
POWER
PACKING BOX
