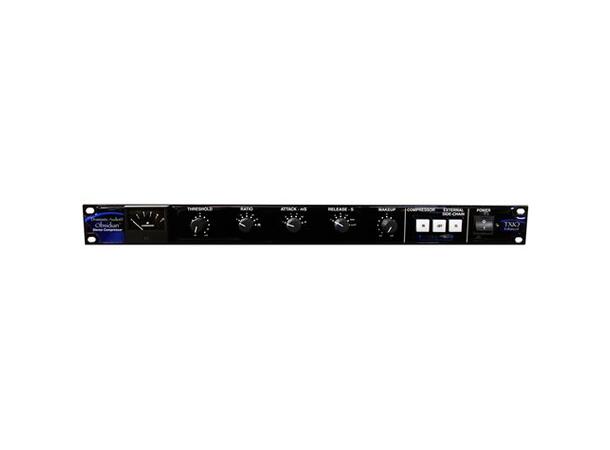

OBSIDIAN STEREO COMPRESSOR

The Obsidian is a feed-forward VCA style stereo compressor featuring transformer balanced I/O, electronically balanced external side-chain input, internal
high pass filter and precision stepped controls to accurately recall settings.
Through the use of several proprietary methods, the Obsidian performs a range of tasks unheard of from the average buss compressor. The Obsidian
offers superior imaging. The stereo image always remains intact, the highs stay brilliant and clear, and the bottom continues to thunder [especially with the
internal “High Pass Filter” engaged on the detection circuitry]. For even greater control, an “External Side-Chain” input is available and may be used in
conjunction with the “High Pass Filter.”
Six ratio settings are available from a subtle 2:1, to a bone crushing . Six attack, and six release settings further complement the Obsidian making it
extremely versatile on many different types of program material.
Employing the “Auto” release time gives the audio a smooth rich texture without any pumping and breathing. From there, if you have decided that the audio
is a little too smooth for the application, a simple click of the release switch to the “Lo-Fi” setting will net all the “IN YOUR FACE” aggression one may desire.
Try it on a drum submix!
Overall, the clarity, performance and musicality of the Obsidian is unparalleled.
The Obsidian is hand crafted in the USA using the finest quality precision components available.
TXIO Enhanced™
TXIO is a transformer balanced input / output interface which gives the Obsidian it’s unique character.
The TXIO interface provides a “phat” classic analog sound allowing the Obsidian to add warmth, depth and character to digital audio

REAR PANELCONNECTIONS
Power Input IEC Connector
Use the included 3-wire grounding type AC power cord to connect the unit to AC power. This cord will only fit into a grounding-type power outlet. If you are
unable to insert the plug into the outlet, contact your electrician. Do not defeat the purpose of this grounding-type plug. Always grasp the plug body when
connecting or disconnecting it.
Voltage Select Switch
The Obsidian™ can be configured for either 110 or 220 volt operation. To change the voltage, use a narrow flat bladed screwdriver to adjust the voltage
setting.
Fuse
1 A for 110v operation
0.5 A for 220v operation
GND
Chassis ground terminal
Side-Chain Input XLR
When the External Side-Chain switch is “IN”, external side-chain input XLR connector on the rear panel is engaged. This allows you to “Key” the compressor
from an external signal rather than the program material itself. Although the input is mono, it affects the left and right channels equally. The external
side-chain input is electronically balanced.
Pin 1: GND
Pin 2: Hot
Pin 3: Cold

REAR PANEL CONNECTIONS
XLR Input L – R
These are the input connectors for the left and right channel audio signals. The inputs are TXIO Enhanced™ which provides transformer balanced inputs.
Pin 1: GND
Pin 2: Hot
Pin 3: Cold
XLR Output L – R
These are the output connectors for the left and right channel audio signals. The outputs are TXIO Enhanced™ which provides transformer balanced
outputs.
Pin 1: GND
Pin 2: Hot
Pin 3: Cold
