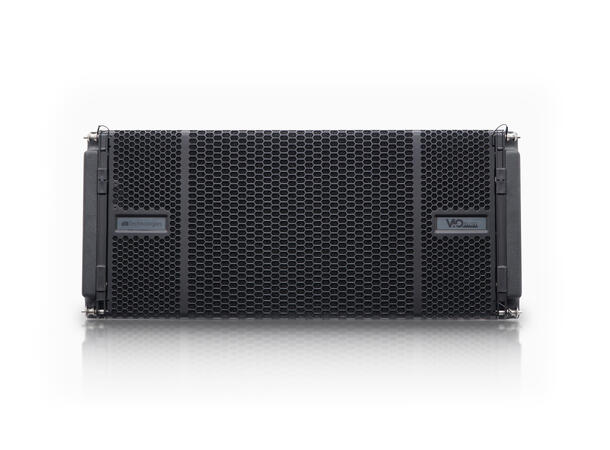

3-veis aktiv line array modul
State of the art symetrisk akustisk design
Coaxial MF+HF compression driver montert på waveguide for fasekorrekt gjengivelse og sømløs overgang mellom moduler i array.
Fantastiske dynamikkegenskaper
Harmonisk og jevn gjengivelse og dekning
| Tekniske
data: |
|
| Speaker
Type: |
Symmetric 3-way
Active Line Array Module |
| Usable
Bandwidth [-10 dB] |
56Hz – 20KHz |
| Frequency
Response [-6 dB] |
60Hz – 17KHz |
| Max SPL |
141 dB |
| MF/HF
(coaxial) |
1x1.4” exit |
| Voice Coil MF |
4” |
| Voice Coil HF |
2.5” |
| Type MF/HF |
Neodymium |
| LF |
2x 10” |
| Voice Coil LF |
2.5” |
| Type LF |
Neodymium |
| Horizontal
Directivity |
100° |
| Vertical
Directivity |
depends on array size
and configuration |
| Amp Technology |
Class-D Digipro G4
full range |
| Power |
1600 W RMS, 3200 W
PEAK |
| Cooling |
passive convection +
internal fan Power Supply: Full-range SMPS with PFC (100V~-240V~, 50-60Hz) |
| Preamp
technology |
Floating Audio input
with digital optical isolation |
| DSP |
32 bit 96 KHz audio
processor |
| AD/DA
converter |
24bit / 96KHz |
| Limiter |
Dual Active Peak,
RMS, Thermal |
| Signal Input |
1xXLR fem, Bal. |
| Signal Output |
1xXLR male, Bal. |
| Network |
RDNet Card (1x RJ45 IN 1x RJ45 Link) |
| |
Dante Card [Optional] |
| Power Socket |
1xPowerCon TRUE1 IN |
| |
1xPowerCon TRUE1 Out |
| Controls |
1 x Speaker Coupling (7 presets) |
| |
1 x High pass filter Rotary Encoder (8 presets) |
| |
1 x HF Compensation (8 presets) |
| |
1 x System Test Button |
| Technologies |
NFC
and Frontal LED Identification System |
| |
380V Resistant SMPS |
| |
IPOS Intelligent
Power-On Sequence |
| |
Opto-isolated floating pre-amp |
| |
System Test |
| |
Inclinometer |
| |
FIR Fir Filters |
| |
Expansion card slot |
| |
USB Data Port |
| |
SMPS With PFC |
| Housing |
Multiplex
Plywood |
| |
Polyurea painted |
| Handles |
2x side |
| Rain Cover |
Magnetic rubber
(included) |
| Rigging Points |
Integrated 3 point
rigging hardware |
| Dimensions
(WxHxD) |
720x320x520 mm
(28.35x12.6x20.47 in) |
| Weight |
31.3 Kg (69 lbs) |
