Bassreflex Semi-Horn Loaded Subwoofer

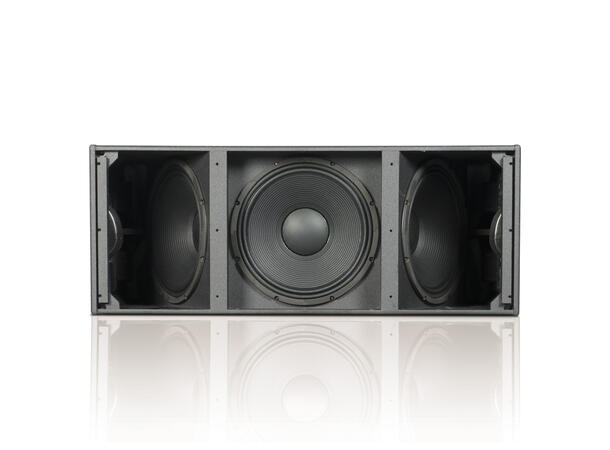

As for lower frequencies, the VIO series is completed by VIO S318 subwoofer, a one of a kind system both for its acoustic configuration and majestic output. Indeed, dBTechnologies succeded in designing an extraordinary powerful triple 18” woofer system while maximizing its frontal emission and extending lower frequencies.

Tekniske Spesifikasjoner:

Speaker Type: Active Bassreflex Semi-Horn-Loaded Subwoofer
Acoustical dataFrequency Response [- 10dB]: 35 - full range
Max SPL: 143 dB
LF: 3x18"Voice Coil LF: 4 "
Directivity: Omnidirectional,
Cardiod Option with DSP setup
Amp Technology: Digipro® G3
Amp Class: Class D
RMS Power: 2700 W
Peak Power: 5400 W
Cooling: Convection
Power Supply: 2700 W SMPS with Auto Range PSU
ProcessorController: DSP 64 bit
AD/DA Converter: 24 bit/48 KHz
Limiter: RMS, Peak, Thermal
Delay Option: 0-9.9 internal Steps of 0.1 ms
Crossover Frequency LF-HF: 70-105Hz + Full range
LF-Xover out slope: 24 dB/Octave
Inputs:
Signal Input: 1xXLR balanced
1xRJ45 LINK (RDNet)
Signal Output: 1x XLR balanced 1xRJ45 LINK (RDNet)
Power Socket: 1xPowerCON TRUE1 IN 1xPowerCON TRUE1 OUT
Controls:
1x Input Attenuation Rotary Switch
1x Rotary Encoder Delay 9.9 ms 1XPolarity Inversion Switch (0° or 180°)
1xCardioid Mode Switch
1x X-Over Freq Switch (70-105 Hz + Full Range (steps 0.5 Hz)
Mechanics:
Housing: Multiplex plywood Polyurea painted

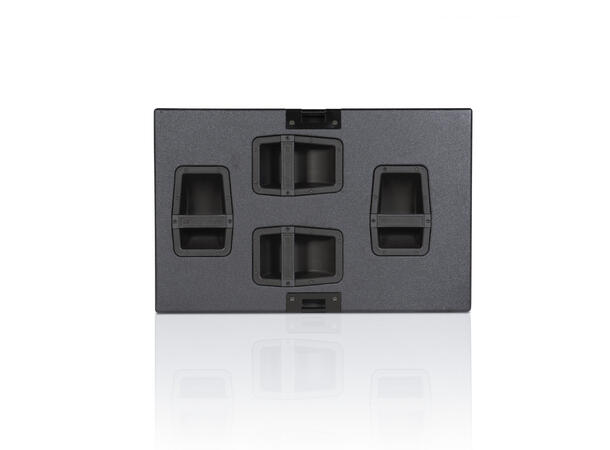

Handles: 4x Per Side Aluminium

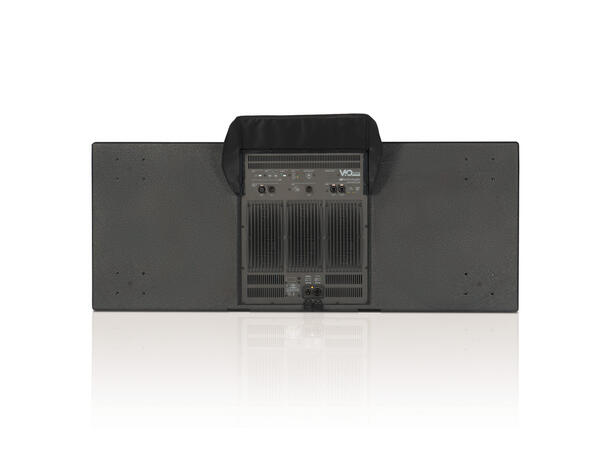

Raincover: Included
Rigging Points: 2x
Pick Points on top to fix DRK-2
