dB Technologies SUB 918

Aktiv 18" Sub 1800W bassreflex RDNet

Varenr: DBT-1030102740
-+
Bestillingsvare (54 dager)
BeskrivelseTeknisk infoAlternativerRESSURSER
Beskrivelse

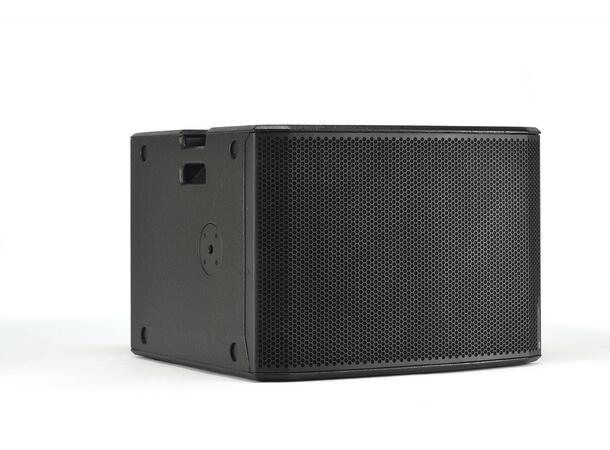

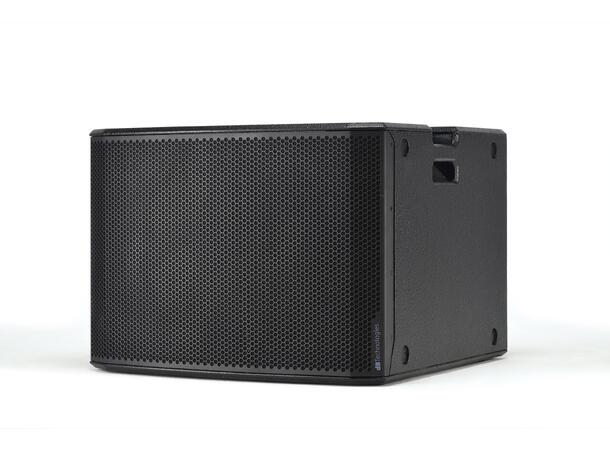

SUB 918

Designed for ground stacked applications, SUB 900 is the perfect choice whenever a powerful lower extension is required.

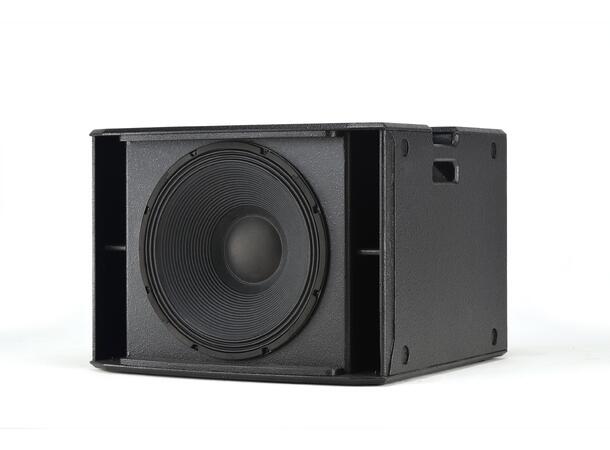

SUB 918 is equipped with a single 18" premium woofer housed into a bass-reflex design.
A 900 W RMS Class D Digipro G3 power amplifier ensures advanced efficiency as well as forcible sound pressure levels up to 134 dB.
SUB 918 is enabled for real time monitoring and remote control via RDNet protocol and Aurora Net software (Windows and Mac), allowing advanced subwoofer configurations alongside with perfect low-end matches with dBTechnologies’ full-range systems enabled to RDNet communications.
Both models of the family also feature on-board controls for attenuation, a polarity switch and DSP controls for a delay up to 4.5 milliseconds with 0.5 milliseconds steps (while a maximum 21 ms delay is allowed via Aurora Net). A second rotary allows to set crossover frequency from 70 to 110 Hz.

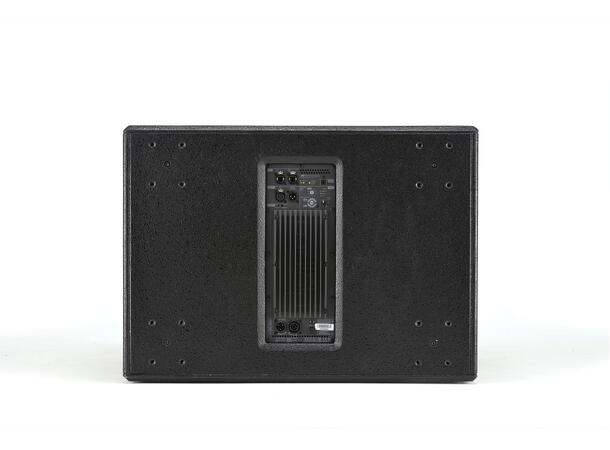

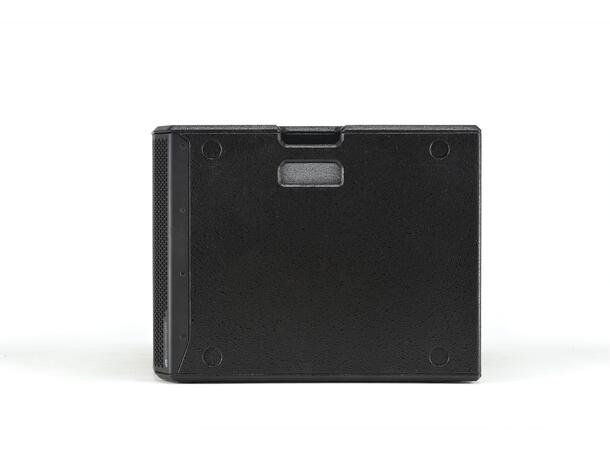

The robust plywood cabinet encases high-end performances in limited weight (41.8 kg ) and features 2 integrated handles on the top edges, while the back side is equipped with wheels mounting for smooth transportation.

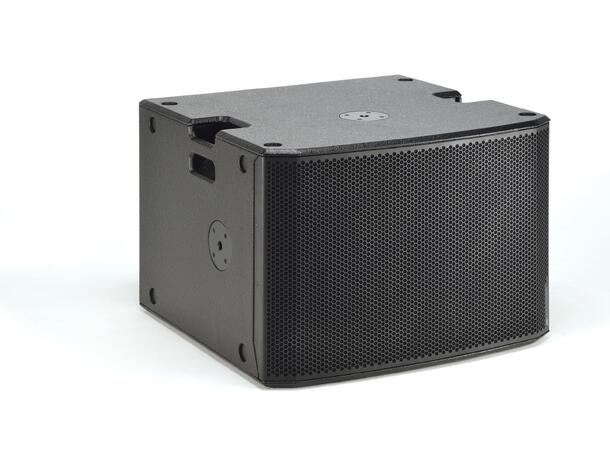

What is more, being designed for both vertical or horizontal use, 2 M20 mounts on the top and side panels permits any type of full-range speaker led using a standard M20 threaded pole.


Technical Data
Speaker Type: Active Subwoofer

Acoustical data
Frequency Response [-10dB]: 42 to cut frequency (Xover dependent)
Max SPL (1 m): 134 dB
LF: 18"
LF Voice Coil: 4"

Amplifier
Amp Technology: Digipro G3
Amp Class: Class D
Peak Power: 1800 W

Processor
Controller: 28/56 bit DSP
AD/DA Converter: 24 bit/48 Hz
Limiter: Peak, Thermal, RMS
Crossover Frequency: Variable (70Hz - 80Hz - 90 Hz - 100Hz - 110 Hz)

Controls
1x Subwoofer Atteniation Control
1x Delay Rotary
1x Xover Rotary
1x Polarity Switch

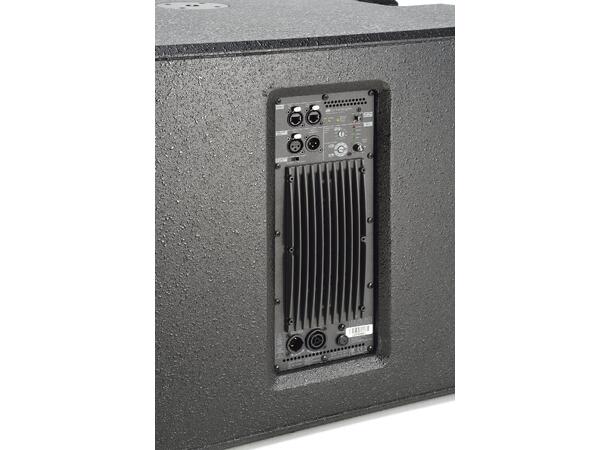

Input
Signal Input:
1x XLR female
1x USB (data service)
Signal Output:
2x XLR male

Mechanics
Housing: Plywood
Handles: 2 (1x side)
Pole Mount: 2x M20 (1 on top + 1 on side)
Width: 720 mm (28.3 in)
Height: 530 mm (20.8 in)
Depth: 690 mm (27.1 in)
Weight: 41.8 kg (92.1 lbs)
Teknisk info

Produktinformasjon

- Grensesnitt (Protokoll) RDNet
- Tilkoblinger (Pluggtype HW)
  • ETHERCON
  • XLR
  • USB
