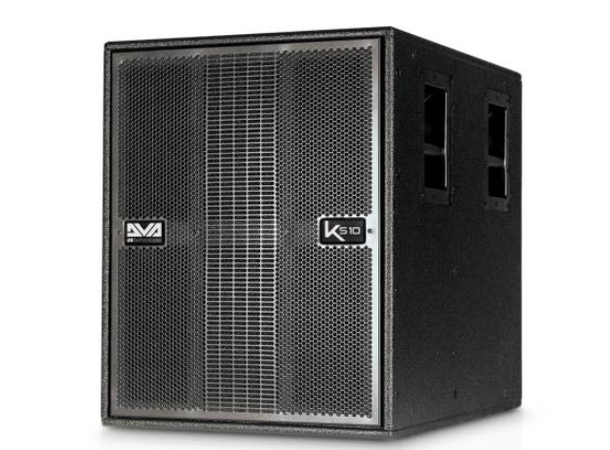

DVA KS10
Use it in a compact PA system, on a pole, groundstacked or flown in a DVA K5 array, this active sub is the most versatile low-end bin of the DVA series.
The semi horn loaded subwoofer DVA KS10 is equipped with a single 18" woofer driven by a Class-D Digipro@G3 power amp delivering 2000W Peak and reaching 134 dB SPL. Maximun versatility is granted by a stereo input/output balanced pre-amp. Crucially, KS10 can be used as a compact PA system (together with DVA K5 on a speaker pole) or groundstacked, but can also be flown thanks to the optionally available flyware. A dedicated encoder aloows to apply up to 4.5 ms of delay, with 0.5 ms speps. A switch allows to invert the phase by 180° as well as changing the LPF from 90 Hz to 120 Hz.
Technical Data
- Speaker Type - Active Semi-horn loaded Flyable Subwoofer
Acoustical data
- Frequency Response [- 10 dB] - 41 Hz - 120 Hz
- Max SPL - 134 dB
- Directivity - Omnidirectional
- LF - 18 "
- Voice Coil LF - 4 "
Amplifier
- Amp Technology - Digipro® G3
- Amp Class - Class D
- RMS Power - 900 W
- Peak Power - 1800 W0
- Cooling - Convection0
- Power Supply - 900 W SMPS with auto range PSU
Processor
Controller - DSP 56 Bit
AD/DA COnverter - 24 Bit / 48 KHz
Limiter - Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency LF-HF - 90, 120 Hz (selectable)
Slope LF-HF - 24 dB/Octave
Input
- Input Section - 2x XLR Balanced
- Output Section - 2x XLR Balanced
- Power Sockets1 x Powercon In + 1 x Powercon Out
- Controls - 1 x Input Sensitivity Rotary Switch
1 x DSP Rotary (up to 4.5 ms on-board)
1 x Polarity Inversion Switch (0°-180°)
1 x X-Over Frequency Switch (90 Hz, 120Hz)
1 x Output Mode Switch (Link - X-Over)
Mechanics
- Housing - Multiplex plywood
- Handles - 2x Side
- Pole Mount - 1x M20 on top
- Rigging Points - 2xPick Points on top to fix DRK 10/20 rigging frames
- Width - 515 mm (20.27 in)
- Height - 640 mm (25.19 in)
- Depth - 720 mm (28.34 in)
- Weight - 43.4 kg (95.69 lbs)
