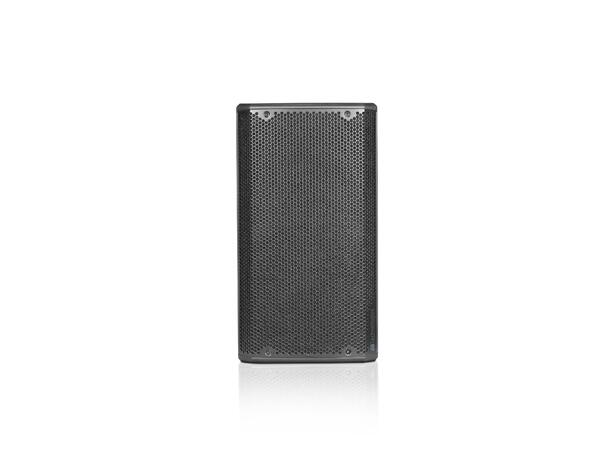

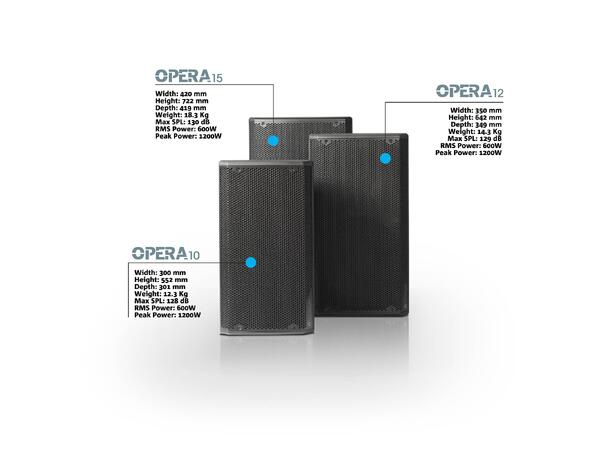

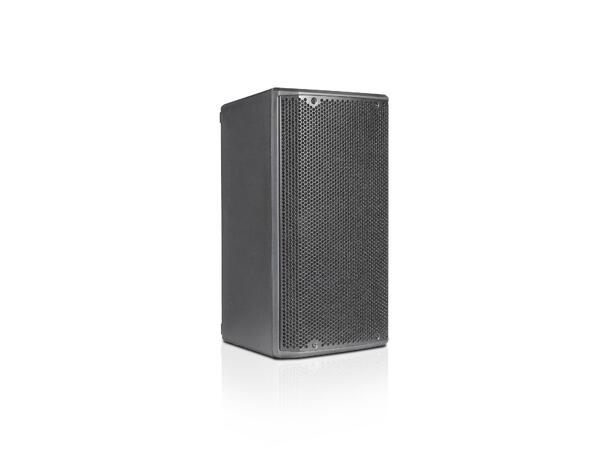

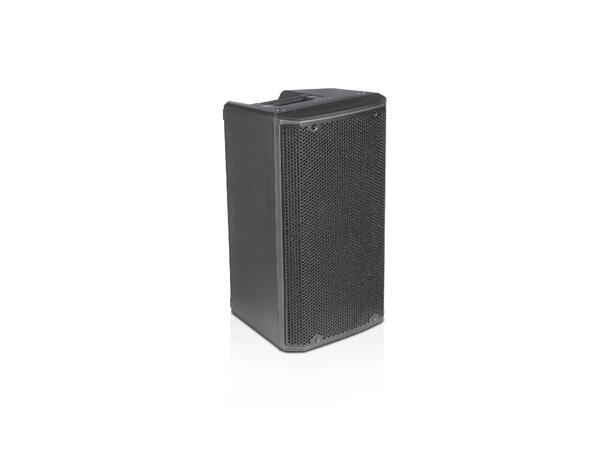

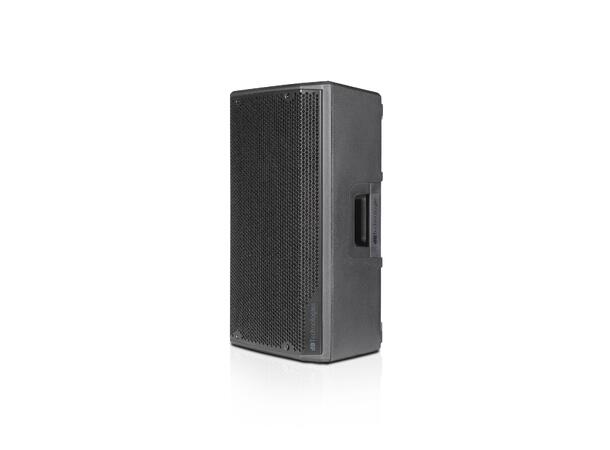

With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

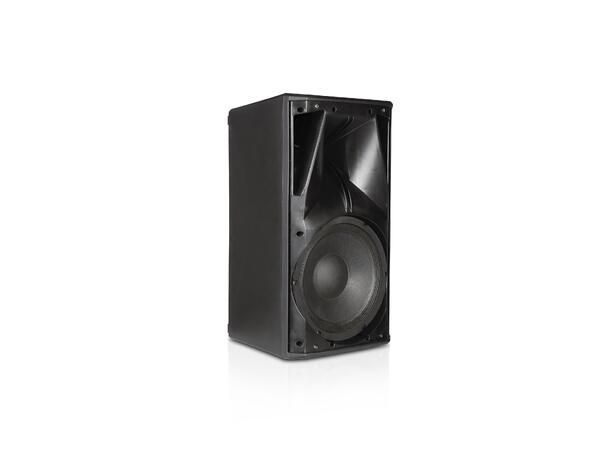

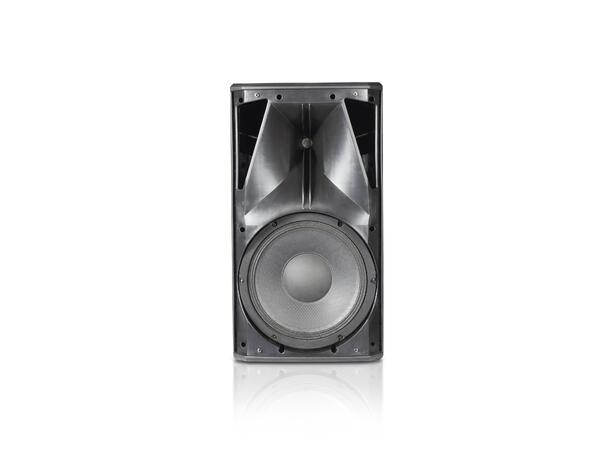

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.
The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Featuring:
1200 w peak power- Newly designed asymmetrical horn
- Advanced DSP with FIR processing
- 2 input channels (mic-line/mic-instr)
- Selectable output channel (link ch1/mix ch 1+2)
- 8 EQ presets
Technical Data:
Speaker Type
2-Way Active Speaker
Frequency Response [-10dB]
58 - 20.000 Hz
Frequency Response [- 3dB]
70 - 19.600 Hz
Type HF
Compression driver
Horizontal Directivity
100° (85° up/120° down)
Vertical Directivity
85° (+ 25°/-60°)
Amp Technology
Amp SMPS Power supply dual range
AD/DA Converter
24 bit/48 KHz
System Presets
Rotary Encoder (8 Presets)
CrossOver Frequency
2000 Hz
Limiter
Peak, RMS, Thermal
Advanced DSP Functions
Linear Phase FIR Filters
Signal Input
1xCombo (XLR/Jack 6.3 mm) MIC/Line 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output
1x XLR Male (CH1 Link/Mix OUT) Selectable

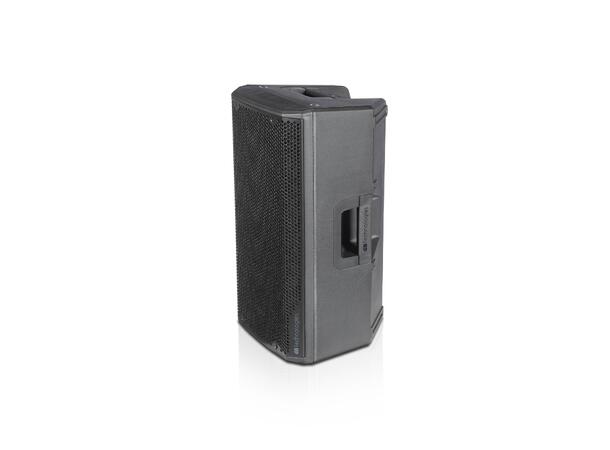

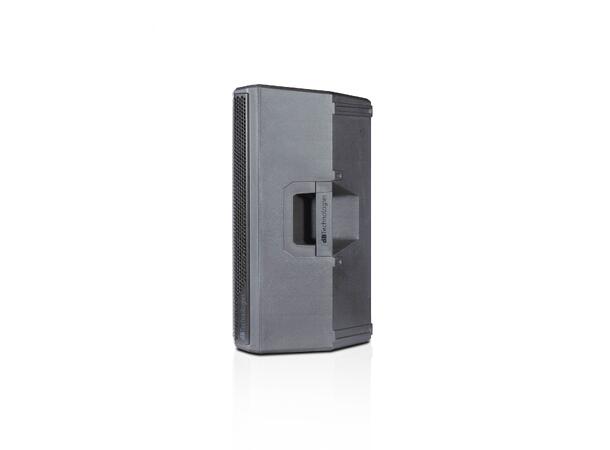

Handles
1 on left Side, 1 on Top
Rigging Points
2XM10 on Top + 1x M10 on Back
Weight
12.3 kg (27.12 lbs)
