VIO L212
Brukermanual Rev 0.1

Technical Data

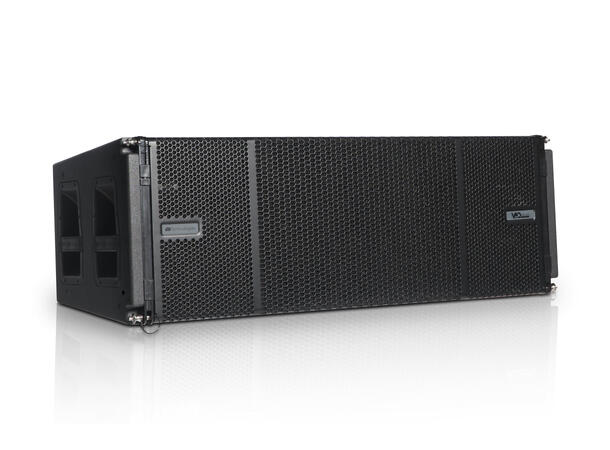

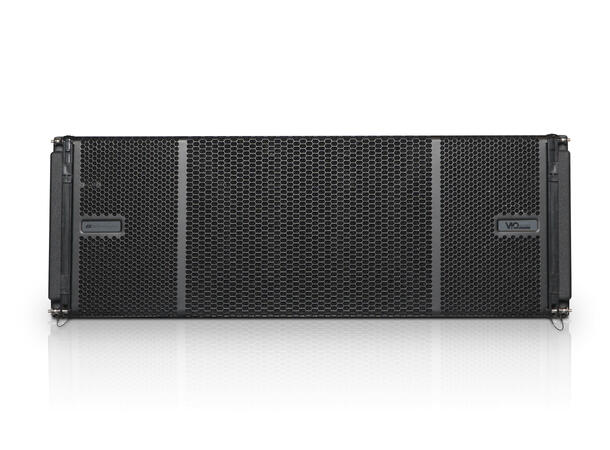

Speaker Type: 3-Way Active Line Array Module
Acoustical data:
Usable Bandwidth [- 6 dB] 55 - 18.600 Hz
Max SPL: One Unit: 142 dB

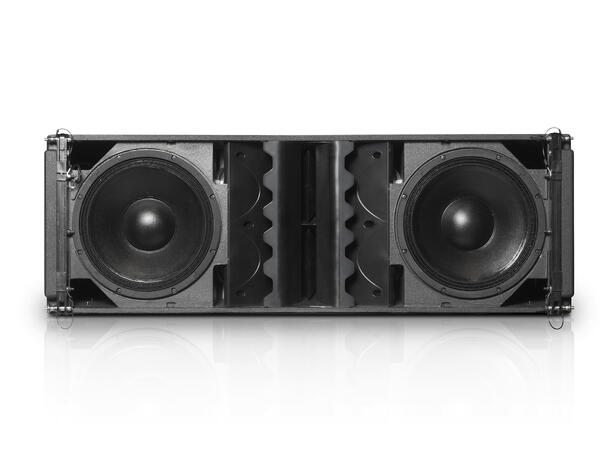

HF 2 x 1.4”, 3” v.c. - Neodymium
MF 4 x 6.5” , 2” v.c. - Neodymium
LF 2 x 12”, 3” v.c. - Neodymium
Horizontal Directivity 90°
Vertical Directivity depends on array size and configuration

Amplifier
Amplifier: 3200 W RMS [2x 1600 W RMS bi-amped Class-D Digipro® G4]
Cooling: Convection, Internal fan
Power Supply Full-range SMPS with PFC (100V~-240V~, 50-60Hz)

Processor
Controller: DSP 32 bit
AD/DA Converter 24 bit/96 kHz
Limiter: Dual Active Multiband Peak, RMS, Thermal
Processing (filters) FIR Linear Phase

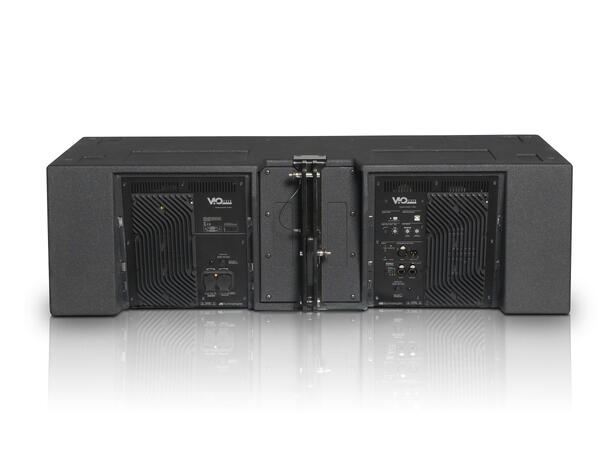

Input
Signal Input: 1x XLR female, balanced
Signal Output: 1x XLR male, balanced
Expansion Card: RDNet Card (1x RJ45 IN 1x RJ45 Link)
Dante Card [Optional]
Power Socket

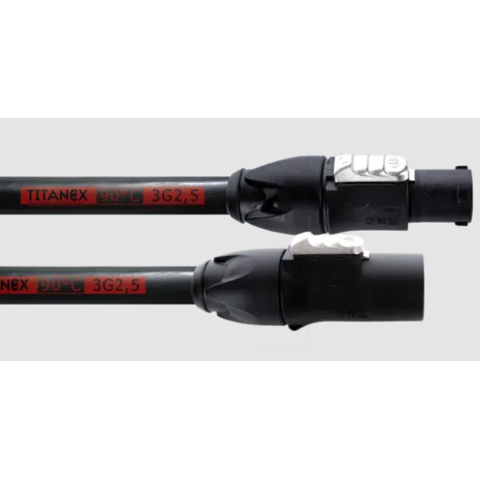

1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out

Controls
1 x Speaker Coupling (7 presets)
1 x High pass filter Rotary Encoder (8 presets)
1 x HF Compensation (8 presets)
1 x System Test Button

Special Features
NFCTM and Frontal LED Identification System
380V Resistant SMPS
IPOS Intelligent Power-On Sequence
Opto-isolated floating pre-amp
System Test (transducers diagnostics)
Inclinometer

Mechanics
Housing: Multiplex plywood - Polyurea painting
Housing Design: Trapezoidal

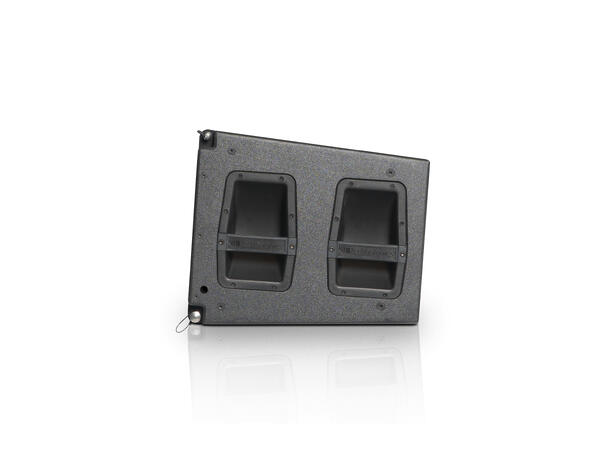

Handles 4 x handles (2 on each side)
Rain Cover: Included [Rubber magnetic]
Rigging Points: 3 points rigging hardware
Width: 1100 mm (43.31 in)
Height: 380 mm (14.96 in)
Depth: 450 mm (17.72 in)
Weight 54.4 Kg (119.93 lbs)
