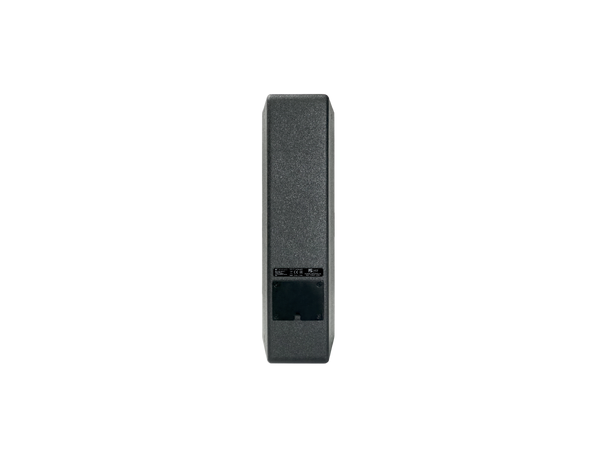

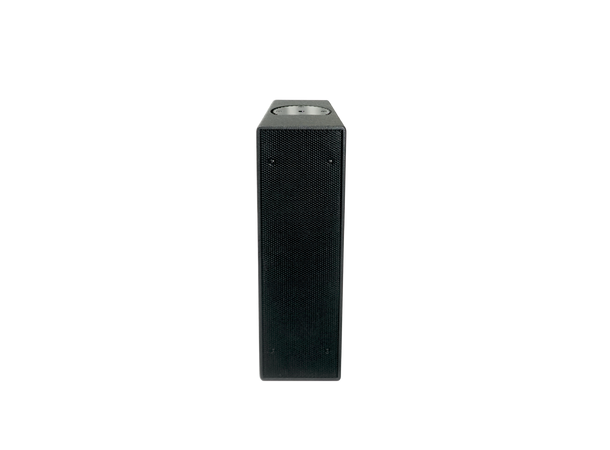

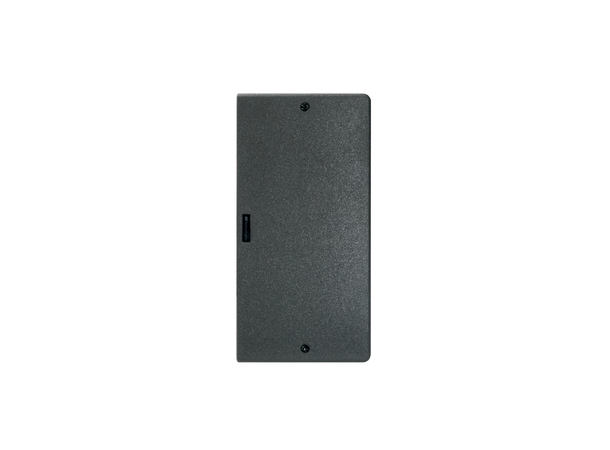

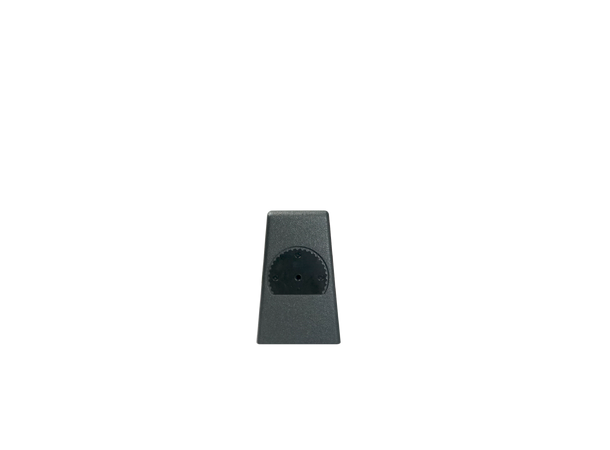

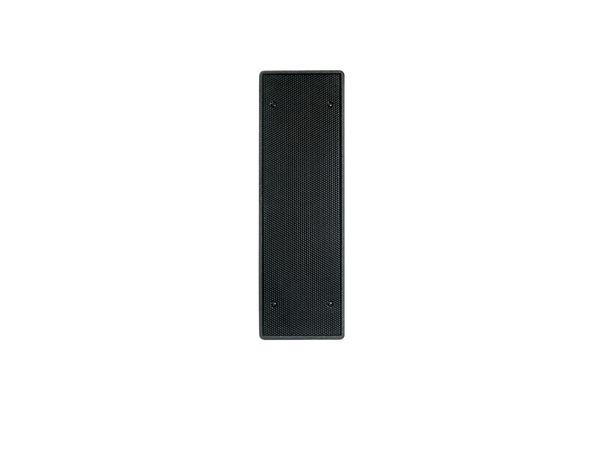

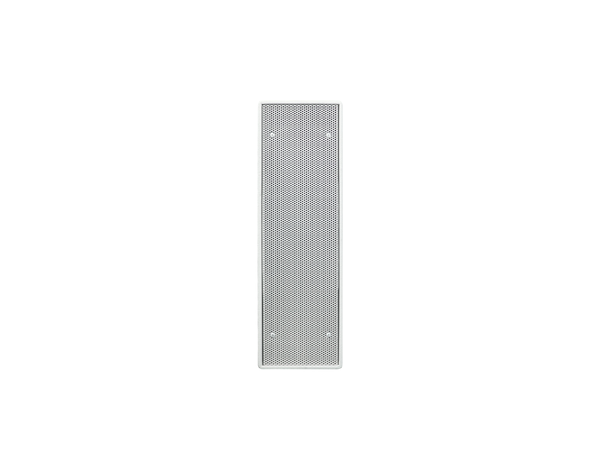

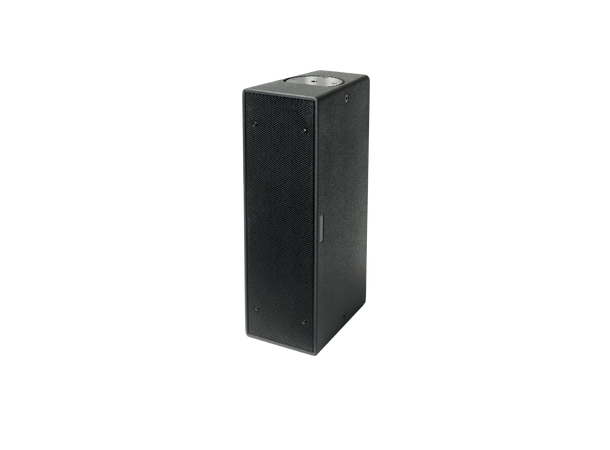

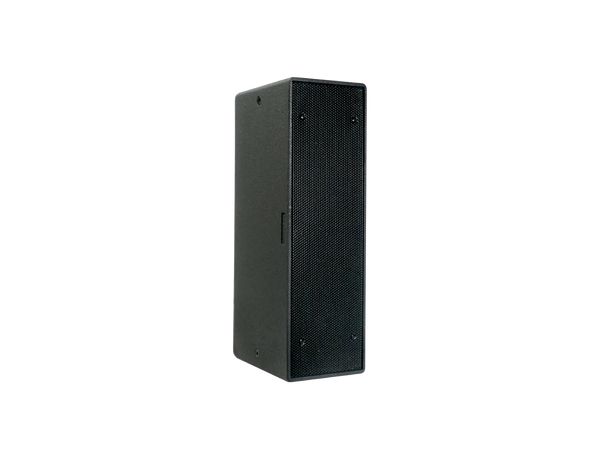

dB Technologies IS25T

IS25T is equipped with two times 5" woofers plus a 1" compression driver for the higher end.
This box provides a 60 x100° constant dispersion, and you can easily install it either vertically or horizontally using the same accessories of VIO X205.

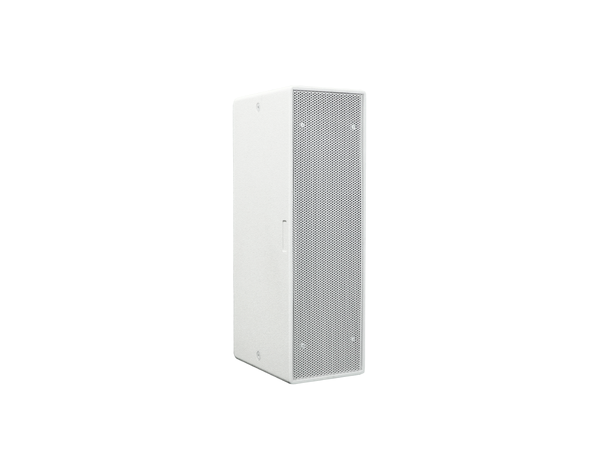

Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix or Speakon connectors, black or white version.

Technical Data

Speaker Type - Passive 2-way Speaker

Acoustical data

RMS Power - 120 W
Peak Power - 480 W
Frequency Response -  [-6 dB]85 Hz - 20,000 Hz
Impedance - 8 Ohm
Sensitivity  - 1W@m94.5 dB
Max SPL - 121.5 dB
HF1x 1", 1.4" v.c.
LF2x 5", 1" v.c.
Dispersion -100x60° [Rotatable Horn]
X-Over Frequency - 1500 Hz (internal X-Over)

Input

Connections - Phoenix

Mechanics

Housing - Plywood, water-painted coating
Rigging points - 2x M10 threaded nut (top and bottom)
IP rating -IP 32

Width152 mm (6 in)
Height485 mm (19 in)
Depth240 mm (9.4 in)
Weight7 kg (15.4 lbs)
