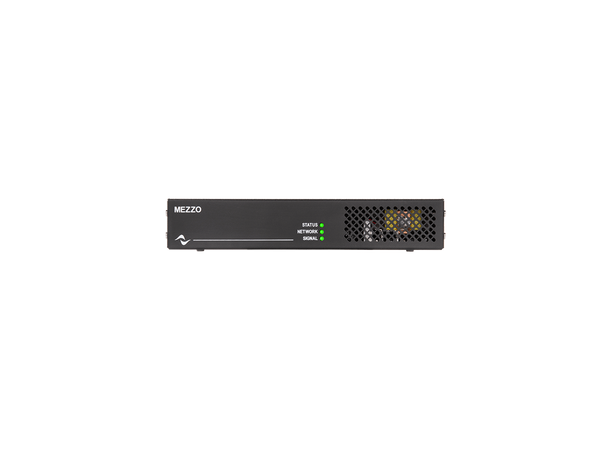

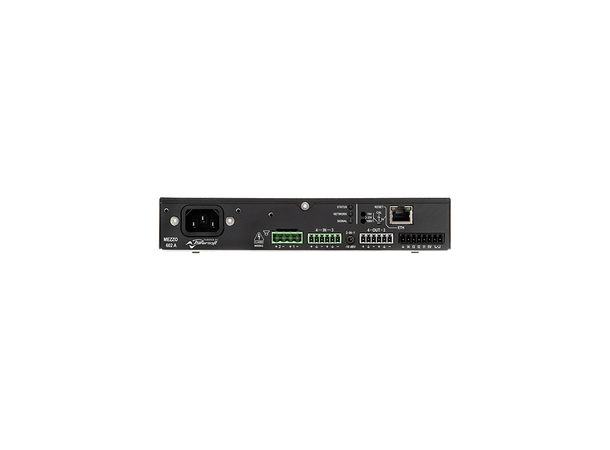

Powersoft Mezzo 602 A

Mezzo 602 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “A” versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. Two channel versions of Mezzo also feature 2 line-level outputs, further extending routing options.

MyPowersoft services are available for this product.

Specifications:

GENERAL

Output power

• Single channel mode 200 W @ 2 O 300 W @ 4 O 300 W @ 8 O
• Maximum power-sharing capacity per channel 400 W @ 4 O 600 W @ 8 O
• Max output voltage / current
• Maximum unclipped output voltage 142 Vpeak
• Maximum output current 15.6 Apeak


AC MAIN POWER

• Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
• Nominal power requirement 100-240 V ±10%, 50-60 Hz
• Operating voltage 90 V – 264 V
• Power consumption/current draw
• Idle 115 V: 11 W – 0.22 A 230 V: 12 W – 0.17 A
• 1/8 of max output power @ 4 O 115 V: 125 W – 1.12 A 230 V: 22 W – 0.62 A


THERMAL

• Thermal dissipation*
• Idle 115 V: 37 BTU/h 230 V: 41 BTU/h
• 1/8 of max output power @ 4 O 115 V: 109 BTU/h 230 V: 118 BTU/h
