DAV-01HR Dante AV Ultra Decoder - Dante AV Ultra Colibri to HDMI
- Transport up to 4K HDR UHD video sources (3840 x 2160 @ 60Hz 4:4:4, 4096 x 2160 @ 60Hz 4:4:4, and 4K @ 60Hz 4:4:4) with imperceptible subframe latency over 1GbE Network.
- Advanced signal management for independent routing of audio, video, USB / KVM, RS-422 and IR.
- ProAV-optimized Colibri codec preserves visually lossless quality for graphical and video contents.
- Utilizing a single network clock enables perfect audio and video synchronization.
- Simultaneous dual HDMI output ports.
- 2.0-inch IPS screen for video images preview, audio level meters and Dante setting feature.
- Incoming audio check using a headphone output.
- Auto-downscaling and HDCP revision conversion on HDMI output ports.
- HDCP 1.x/2.x compliant with advanced EDID management.
- PoE+ (30W IEEE802.3at PoE+) or DC (12V) power to power the device.
- EIA Rack mountable - 1U half-rack width.
- Compatible with Dante Controller, Dante Studio and Dante Domain Manager (DDM).

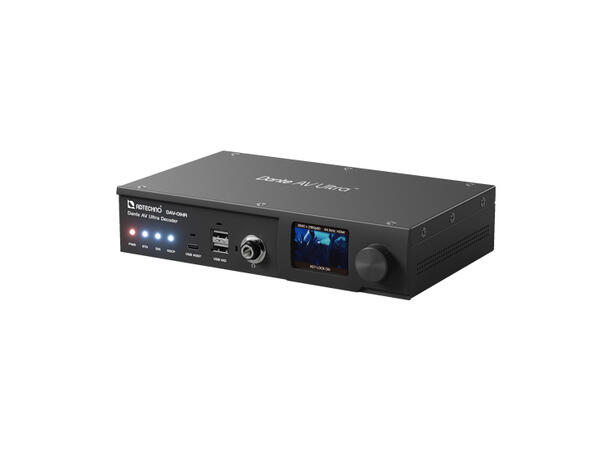

ADTECHNO Dante AV Ultra Decoder - DAV-01HR is the award-winning AV over IP product, powered by the Dante AV Ultra solution, allowing for lossless 4K Ultra HD video and extremely low-latency IP streaming over 1GbE network. It utilizes ProAV-optimized Colibri codec, preserving high-quality graphical content for 4K60 with perfect video and audio synchronization. DAV-01HR enables seamless integration with the renowned Dante Controller software, enabling AV professionals to effortlessly manage and route each signal individually, providing a streamlined and efficient workflow for audio and video distribution.

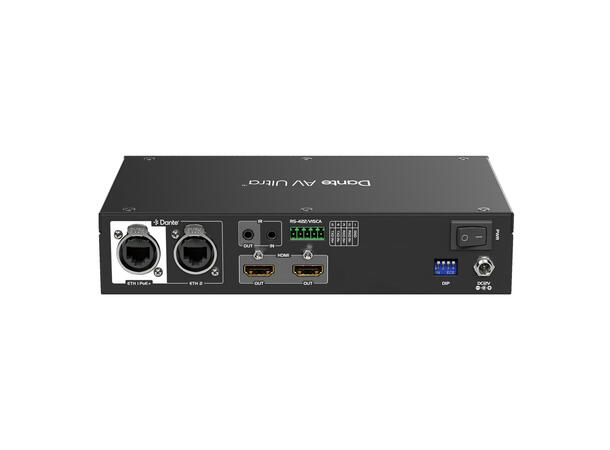

The DAV-01HR stands dual HDMI output port, featuring simultaneous output through two ports, catering to simultaneous video output to multiple displays and AV devices.

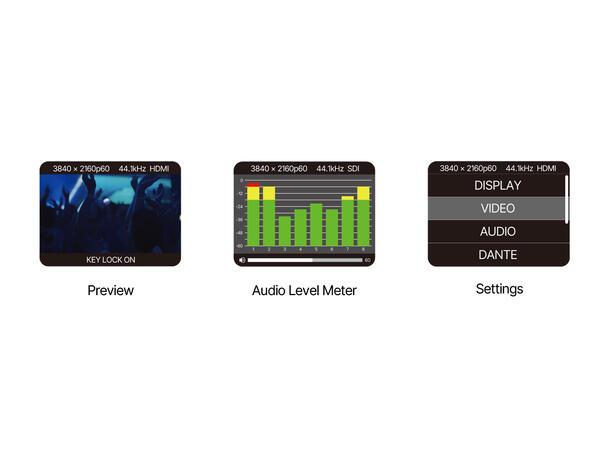

The DAV-01HR comes equipped with a 2.0-inch IPS screen, offering video preview and audio level meter displays. Moreover, users can access Dante settings menus for adjustments such as sampling rate and latency using an intuitive rotary switch knob. The addition of a headphone jack facilitates audio monitoring, allowing users to confirm received audio through headphones.
Dante AV Ultra enables the transmission of intricate 4K60 graphical content with high quality, visually lossless results and extremely low latency. Tailored for professional AV environments such as stadiums, arenas, theaters, churches, schools, offices, and boardrooms, this solution prioritizes minimal latency in both video and audio, ensuring optimal performance in demanding settings.
Adaption of ProAV-optimized Colibri codec
In the main use case of ProAV, preserving high quality of complex graphical content poses a significant challenge. The new Colibri codec has been specially designed to bridge this gap, providing seamless distribution and delivery of high-quality complex graphical content for 4K60 over 1GbE. The ADTECHNO Dante AV Ultra incorporates this newly optimized video codec to flawlessly encode any graphical content while preserving visually lossless quality for graphical and video content.
* Interoperability requires consistency in the video codec used on both the encoder and decoder.
Perfect Synchronization of Audio and Video
Dante AV Ultra employs a single clock to synchronize seamlessly with one another over the network using the IEEE 1588 Precision Time Protocol (PTP), delivering sub-microsecond synchronization.
Imperceptible subframe latency
Dante AV Ultra streams and transport video and audio content with highest performance and lowest latency - 4K60 with 8ms or less latency
Dual Output with HDMI
Dante AV Ultra Decoder, DAV-01HR supports simultaneous quad output, providing 2 x HDMI video outputs for connecting to multiple screens.
