DAV-01HT Dante AV Ultra Encoder - HDMI to Dante AV Ultra Colibri
- Transport up to 4K HDR UHD video sources (3840 x 2160 @ 60Hz 4:4:4, 4096 x 2160 @ 60Hz 4:4:4, and 4K @ 60Hz 4:4:4) with imperceptible subframe latency over 1GbE Network.
- Advanced signal management for independent routing of audio, video, USB / KVM, RS-422 and IR.
- ProAV-optimized Colibri codec preserves visually lossless quality for graphical and video contents.
- Utilizing a single network clock enables perfect audio and video synchronization.
- HDMI input and loop-out port
- 2.0-inch IPS screen for video images preview, audio level meters and Dante setting feature.
- Incoming audio check using a headphone output.
- HDCP 1.x/2.x compliant with advanced EDID management.
- PoE+ (30W IEEE802.3at PoE+) or DC (12V) power to power the device.
- EIA Rack mountable - 1U half-rack width.
- Compatible with Dante Controller, Dante Studio and Dante Domain Manager (DDM).
ADTECHNO Dante AV Ultra Encoder – DAV-01HT is the award-winning AV over IP product, powered by the Dante AV Ultra solution, allowing for lossless 4K Ultra HD video and extremely low-latency IP streaming over 1GbE network. It utilizes ProAV-optimized Colibri codec, preserving high-quality graphical content for 4K60 with perfect video and audio synchronization. DAV-01HT enables seamless integration with the renowned Dante Controller software, enabling AV professionals to effortlessly manage and route each signal individually, providing a streamlined and efficient workflow for audio and video distribution.
The DAV-01HT features HDMI input port, converting video and audio into Dante AV Ultra signals. Notably, it includes dedicated output port, supporting loop-out connection for signal verification on preview displays and seamless integration with other video transmission equipment.

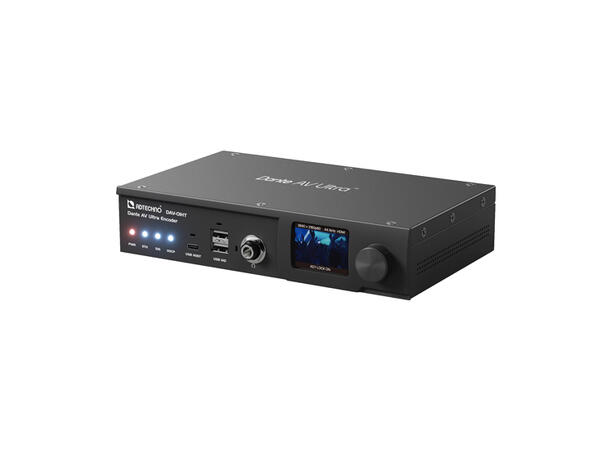

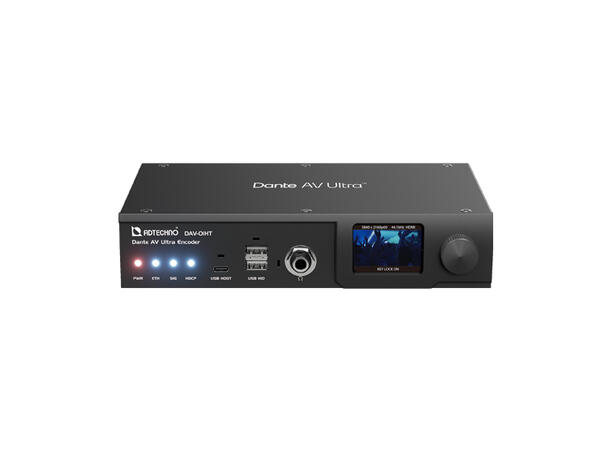

The DAV-01HT comes equipped with a 2.0-inch IPS screen, offering video preview and audio level meter displays. Moreover, users can access Dante settings menus for adjustments such as sampling rate and latency using an intuitive rotary switch knob. The addition of a headphone jack facilitates audio monitoring, allowing users to confirm received audio through headphones.

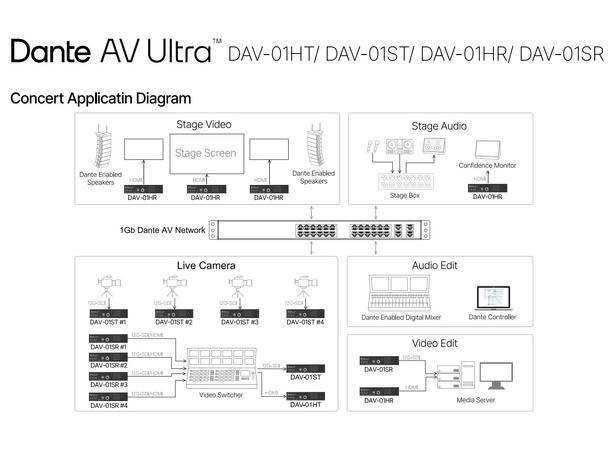

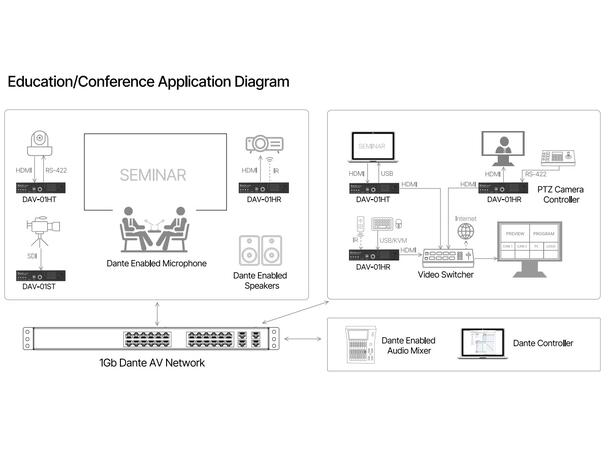

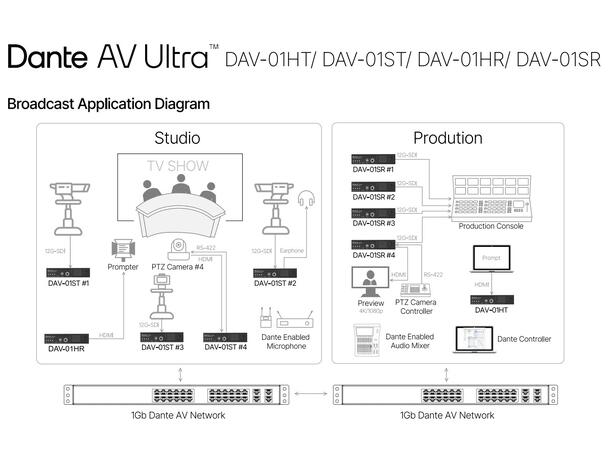

Dante AV Ultra enables the transmission of intricate 4K60 graphical content with high quality, visually lossless results and extremely low latency. Tailored for professional AV environments such as stadiums, arenas, theaters, churches, schools, offices, and boardrooms, this solution prioritizes minimal latency in both video and audio, ensuring optimal performance in demanding settings.
Adaption of ProAV-optimized Colibri codec
In the main use case of ProAV, preserving high quality of complex graphical content poses a significant challenge. The new Colibri codec has been specially designed to bridge this gap, providing seamless distribution and delivery of high-quality complex graphical content for 4K60 over 1GbE. The ADTECHNO Dante AV Ultra incorporates this newly optimized video codec to flawlessly encode any graphical content while preserving visually lossless quality for graphical and video content.
* Interoperability requires consistency in the video codec used on both the encoder and decoder.
Perfect Synchronization of Audio and Video
Dante AV Ultra employs a single clock to synchronize seamlessly with one another over the network using the IEEE 1588 Precision Time Protocol (PTP), delivering sub-microsecond synchronization.
Imperceptible subframe latency
Dante AV Ultra streams and transport video and audio content with highest performance and lowest latency - 4K60 with 8ms or less latency
User-friendly 2.0-inch IPS screen
The ADTECHON Dante AV Ultra comes equipped with a user-friendly 2.0-inch IPS screen that provides a preview of incoming video images and displays 8-channel audio level meters. Additionally, it boasts a Dante Setting menu, allowing you to easily modify settings such as sampling rate, latency and more using a rotary switch knob.
