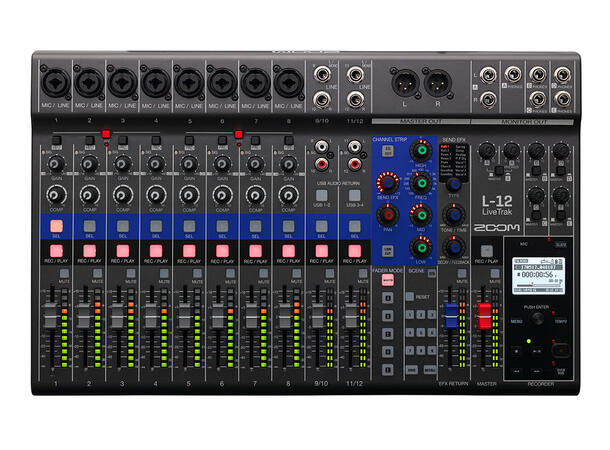

LiveTrak L-12 Mix, Record, Monitor, Playback, and Remix

With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

Effortless Live Mixing

LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere

LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.

Five Custom Monitoring Mixes

Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to -0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch

• Number of Input and output Channels
  Inputs:	Mono (MIC/LINE): 8 Stereo (LINE): 2
  Outputs:	MASTER OUT: 1   MONITOR OUT: 5
  Inputs
  Mono (MIC/LINE):	Type: XLR/TRS combo jacks          (XLR: 2 HOT, TRS: TIP HOT) Input gain PAD OFF: +16 - +60 dB PAD ON: -10 – +34 dB Hi-Z ON: +6 - +50 dB Input impedance XLR: 3 kO TRS: 10kO/1 MO (when Hi-Z ON) Maximum input level PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at dBFS) Phantom Power +48 V
  Stereo (LINE):	Type: TS phone/RCA pin (unbalanced) jacks          Maximum input level  +10 dBu
  Outputs
  MASTER OUT:	Type: XLR jacks (balanced) Maximum output level: +14.5 dBu Output impedance: 100 O
  MONITOR OUT A (TRS):	Type: TRS phone jacks (balanced) Maximum output Level: +14.5 dBu Output impedance: 100 O
  MONITOR OUT A-E (PHONES):	Type: Standard Stereo phone jacks Maximum output level: 42 mW + 42 mW at 60 O Output impedance: 100 O
  Buses
  MASTER:	1
  MONITOR:	5
  SEND EFX:	1
  Channel Strip
  COMP:
  LOW CUT:	75 Hz, 12 dB/OCT
  EQ:	HIGH: 10 kHz, ± 15 dB, shelving MID: 100 Hz-8 kHz, ±15 dB, peaking LOW: 100 Hz, ± 15 dB, shelving
  Level meters
  Level segments:	12
  Send effects
  Effects:	16 types: Hall 1 & 2 (reverb) Room 1 & 2(reverb) Plate (reverb) Church (reverb) DrumAmb (reverb) GateRev (reverb) Spring (reverb) Delay (delay) Analog (delay) P-P Dly (delay) Vocal 1-4 (delay + reverb)
  Recorder
  Maximum simultaneous recording tracks:	14 at 44.1/48 kHz (12 channel + stereo mix) 12 at 96 kHz
  Maximum simultaneous playback tracks:	12
  Recording format:	WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
  Recording media:	16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards
  Audio interface
  44.1/48 kHz:	Recording: 14 channels Playback: 4 channels
  Bit depth:	24-bit
  Interface:	USB 2.0
  Card reader
  Class:	Mass storage USB 2.0 High Speed
  USB HOST
  Class:	USB 2.0 High Speed
  Sampling rate
  Sampling rate:	44.1/48/96 kHz
  Frequency characteristics
  44.1 kHz:	-1.0 dB: 20 Hz - 20 kHz
  96 kHz:	-3.0 dB: 20 Hz - 40 kHz
  Equivalent input noise
  Actual measurements:	-128 dB EIN (IHF-A) with +60 dB/150 O input
  Display:	LCD with backlight (128x64 resolution)
  Power supply:	ZOOM AD-19 AC adapter (DC12 V/2 A)
  Power consumption:	17W maximum
  External dimensions:	445 mm (W) x 282 mm (D) x 70.5 mm (H) 17.5” (W) x 11.1” (D) x 2.78” (H)
  Weight (main unit only):	2.53 kg / 5.58 lbs
