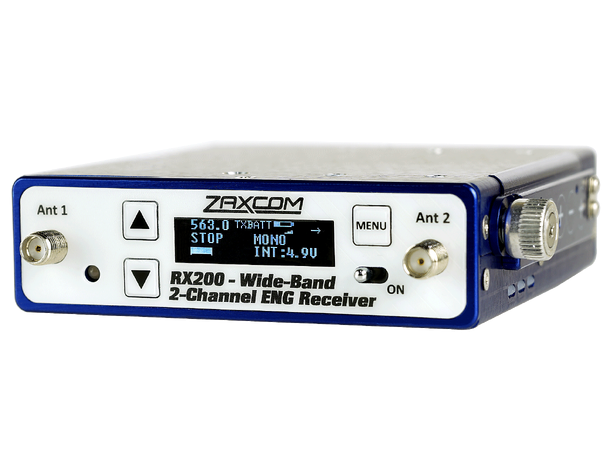

The RX200 is a 200 MHz wide compact battery powered ENG receiver. It has a tunable tracking front end filter for receiving any frequency in any block from 20 through 27, or 512 – 698 MHz, while still filtering out unwanted RF.

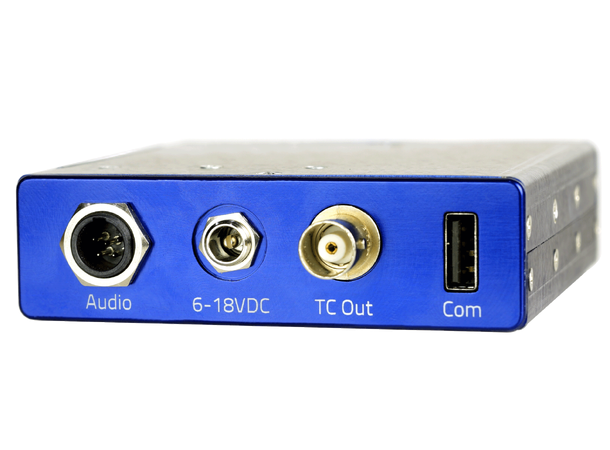

RX200 can output AES digital audio or analog audio at -35dB mic level, -10dB consumer level, or 0dB line level on a single TA5 connector. It’s is also capable of receiving and outputting the embedded SMPTE time code on a BNC connector also on mic, line or consumer levels.

The RX200 / TRX900CL Camera Link combo is a great solution for sending two channels of 100% digital audio with embedded SMPTE timecode from bag to camera. Small and light-weight with Zaxcom’s patented side-mounted LED’s, the RX200 is easy to mount on any camera – from small format DSLR to a full size ENG rig.
