YAMAHA DM7 Control Expansion

4 fader, 16 keys, 4 knobs, jog

Varenr: 120393
-+
Bestillingsvare (7 dager)
BeskrivelseTeknisk infoTilbehørAlternativerRESSURSER
Beskrivelse

Yamaha Yamaha Expansion Controller DM7 Control

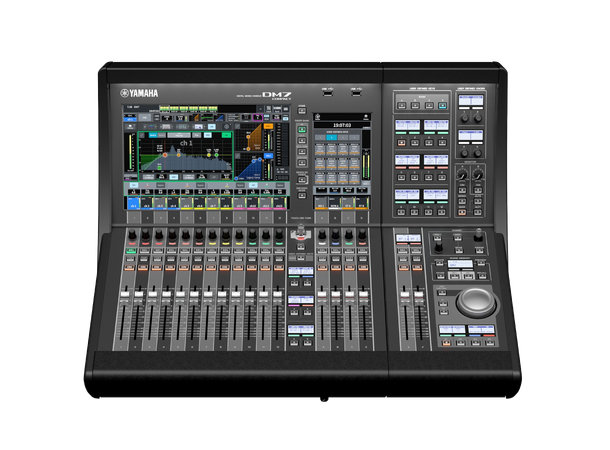

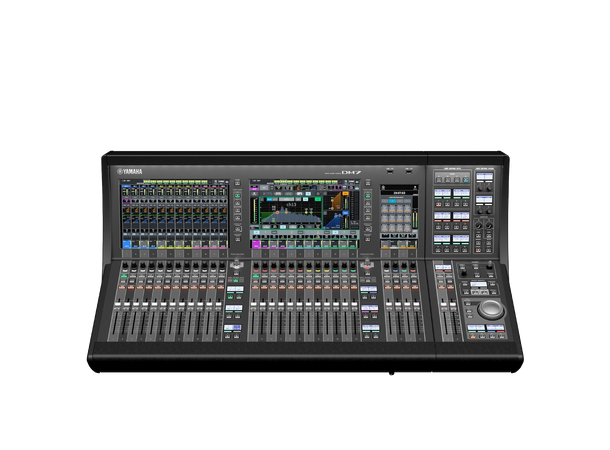

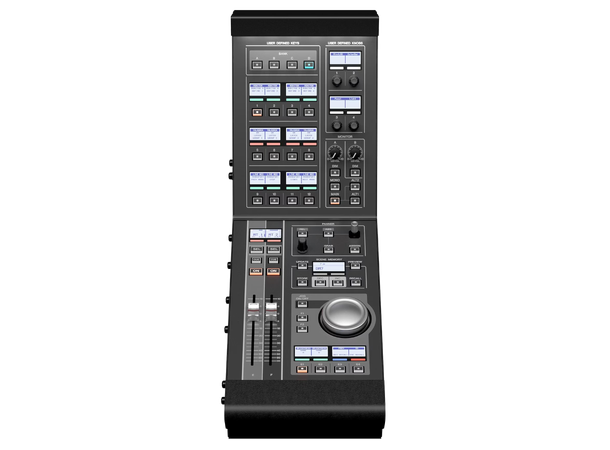

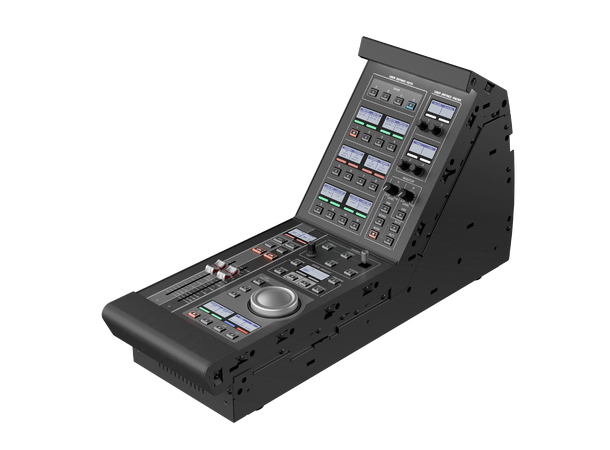

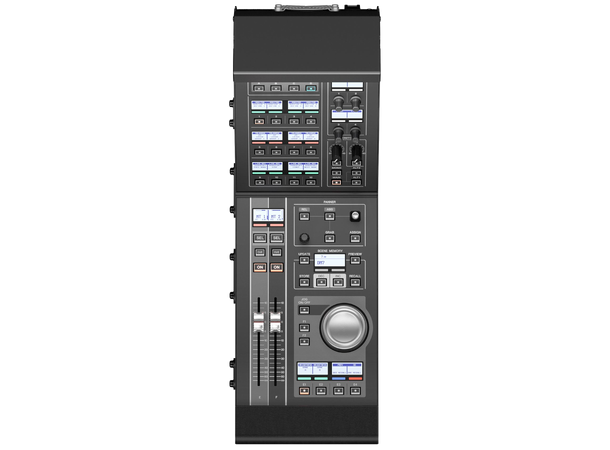

The DM7 Control is an expansion controller with a variety of physical control devices that can be used to conveniently control functions for a number of applications, such as User Defined Keys, Scene Memory keys, Monitor Control keys and knobs, and Panner joystick. The Broadcast / Theatre Package is included with the DM7 Control controller. * Side pads not included

    Faders: 2
    User Defined Keys: 16
    User Defined Knobs: 4
    Scene Memory Keys: Update, Preview, Store, Recall, Inc, and Dec
    Monitor Control for Monitor A/B
    Panner: 1
    Jog Wheel: 1

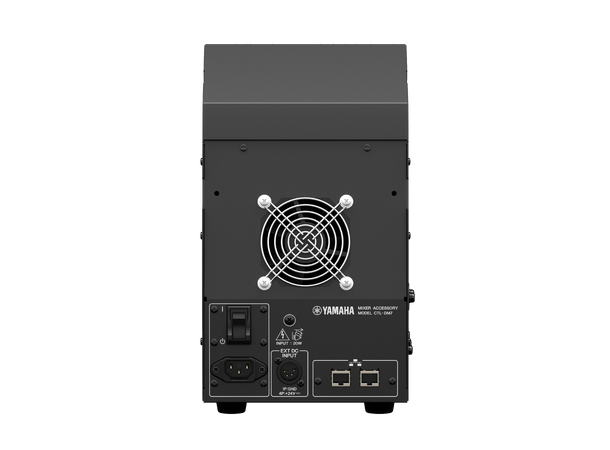

    Power supply: AC INPUT and EXT DC INPUT for power supply redundancy
    Power consumption: 20 W
    Dimensions (W x H x D): 191 mm x 323 mm x 562 mm
    Net Weight: 7 kg






 Software Utvidelser:



Yamaha Broadcast Package (DEK-DM7-BR)

The Broadcast Package (DEK-DM7-BR) is a software package that adds broadcast functionality to the DM7 series.

Functions: Mix Minus, Fader Cue Release, Back Stop PFL, Audio Follow Video, Source Selection Mix Mode, Speaker Selection, Loudness Meter, Peak Program Meters (PPM), 5.1 Surround (Future Update)



Theatre Package (DEK-DM7-TH)

The Theatre Package (DEK-DM7-TH) is a software package that adds theater functionality to the DM7 series.

Functions: Mix Minus, 4 Bank EQ/DYN, Actor Library, DCA Preset, DCA Scene Grid, MIDI Output Event on Scene, AFC Image Control (Future Update)



    Teknisk info

    Produktinformasjon

    - Funksjon & bruk
    • Fjernstyrbar
    • IP nettverk lyd
    • Redundancy
    • SRC Sample Rate Konvertering
    - Grensesnitt (Protokoll)
    • AES3
    • AES67
    • Dante
    • GPIO
    • MADI Coaxial
    • MIDI
    • SMPTE 2110
    • WordClock
    - Tilkoblinger (Pluggtype HW)
    • BNC
    • DB 25
    • DB25 AES
    • DIN 5 pin MIDI
    • RJ45
    • USB C
    • XLR
